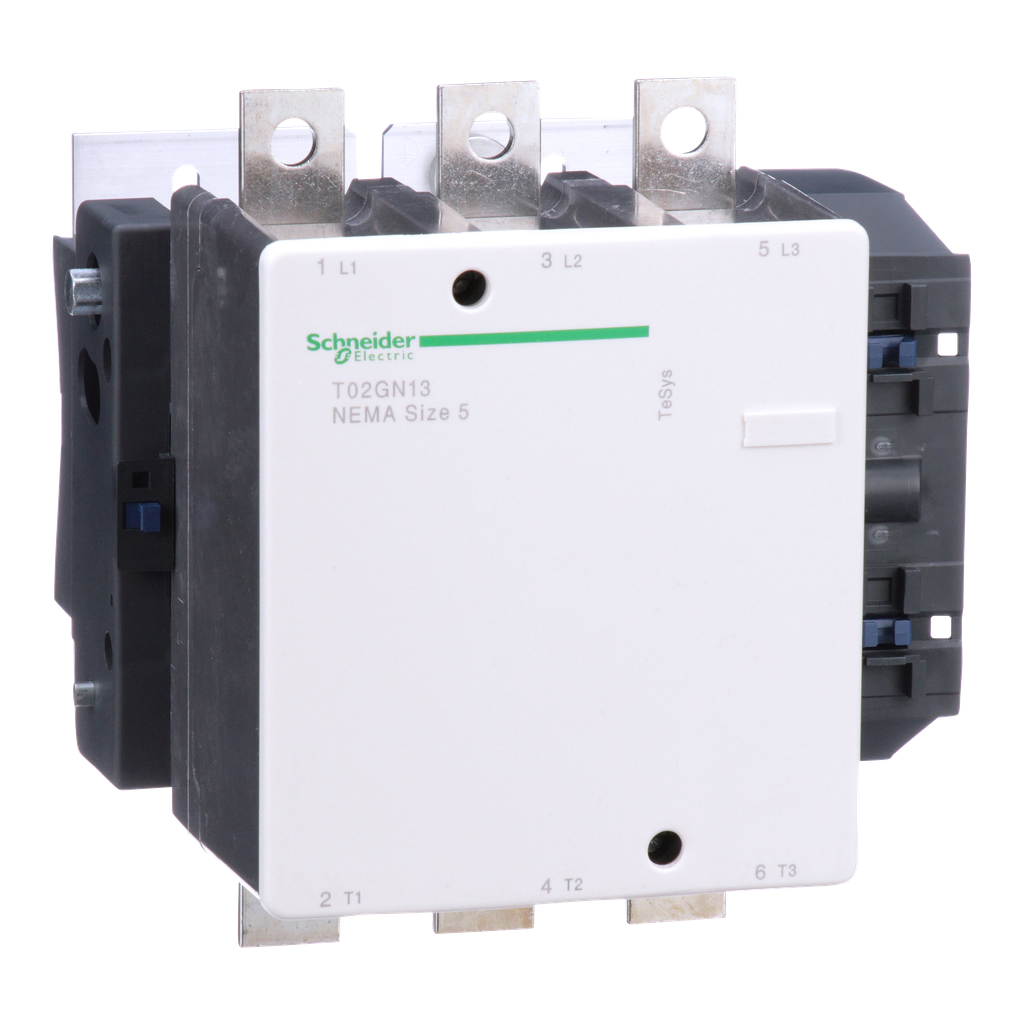

Schneider Electric T02GN13G7 NEMA Contactor, TeSys N, Size 5, 270A, 200HP at 460VAC

Product Description

Schneider Electric T02GN13G7 is a NEMA contactor designed for control and automation applications. This contactor meets NEMA ICS2 standards, ensuring reliability and performance. It features three poles with a continuous current rating of two hundred seventy amperes. The contactor can handle ratings of seventy-five horsepower at two hundred volts, one hundred horsepower at two hundred thirty volts, and two hundred horsepower at four hundred sixty and five hundred seventy-five volts in polyphase systems. The device mounts on thirty-five millimeter DIN rail and utilizes common TeSys accessories for ease of use and inventory management.

• NEMA compliant with size five
• Continuous current rating of 270 Amps
• UL listed and CSA certified

Product Highlights

This contactor has a replaceable coil operating at 120 volts AC. It is not enclosed and features one normally open auxiliary contact. The dimensions are eight point eleven inches in height, eight point thirty-nine inches in width, and eight point seventy-one inches in depth, with a weight of twenty point fifty-two pounds.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: T02GN13G7
• Current Rating: 270 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 3 Pole
• Coil Voltage: 120 V AC
• Dimensions: 8.11 inches (H) x 8.39 inches (W) x 8.71 inches (D)
• Weight: 20.52 lb
• Certifications: UL Listed, CSA Certified
