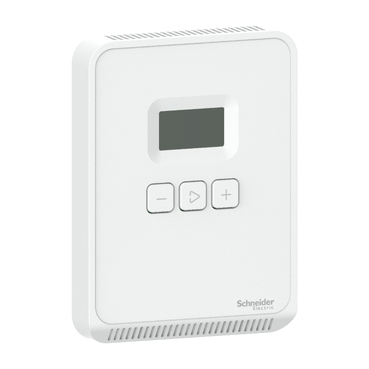

Schneider Electric SXWSATXXXSLX SmartX Living Space LCD Temperature Sensor

Product Description

The Schneider Electric SXWSATXXXSLX is a SmartX living space temperature sensor compatible with SmartX IP controllers and EcoStruxure Building Operation software. This device integrates an RJ-45 Sensor Bus for communication and power supply directly to the SmartX IP controller.

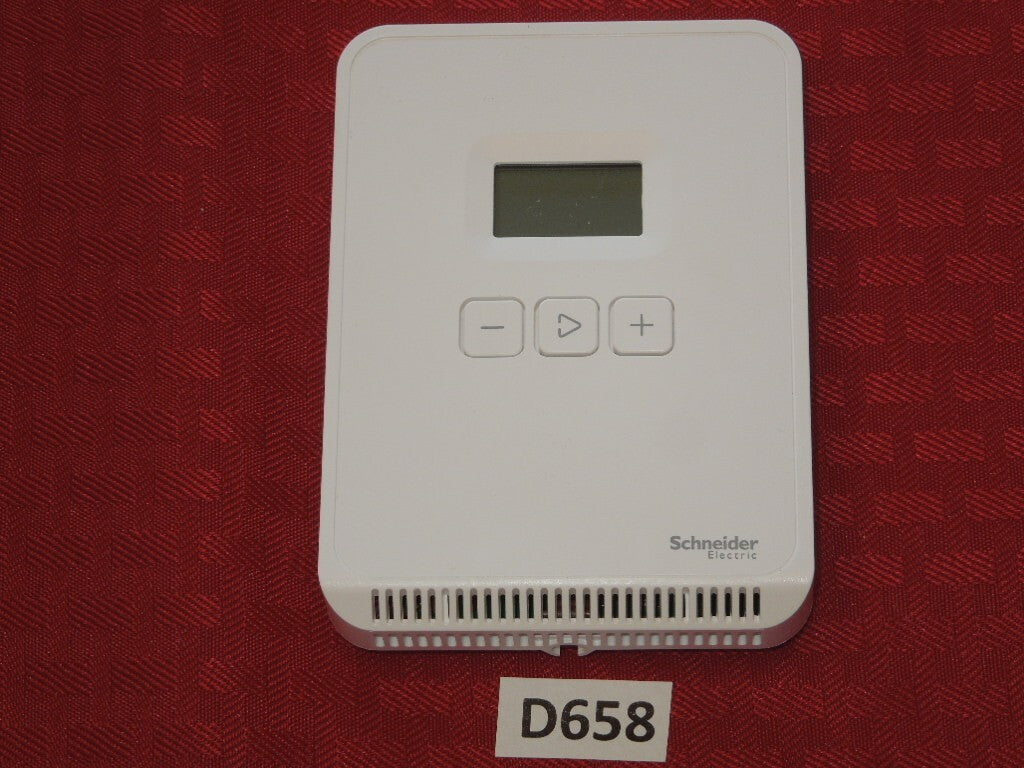

• Displays temperature and mode on an LCD screen
• Adjusts temperature setpoints, fan speed, and modes
• Three buttons for occupancy and override modes

Product Highlights

The sensor provides a clear display of temperatures and system mode, making it user-friendly for managing indoor climate efficiently.

Product Information

Standard Information

• Product Type: Sensor
• Device Application: Fan speed control, temperature control, HVAC

Technical Specifications

• Output Type: SmartX Sensor Bus
• Sensor Type: Transmitter
• Display Size: 30 x 17 mm
• Ambient Temperature Range: 0-50 °C
• IP Protection Rating: IP20
• Functionality: Setpoint adjustment, override switches
• Flame Retardance: UL94-V0
• Dimensions: Depth: 24 mm, Width: 85 mm
