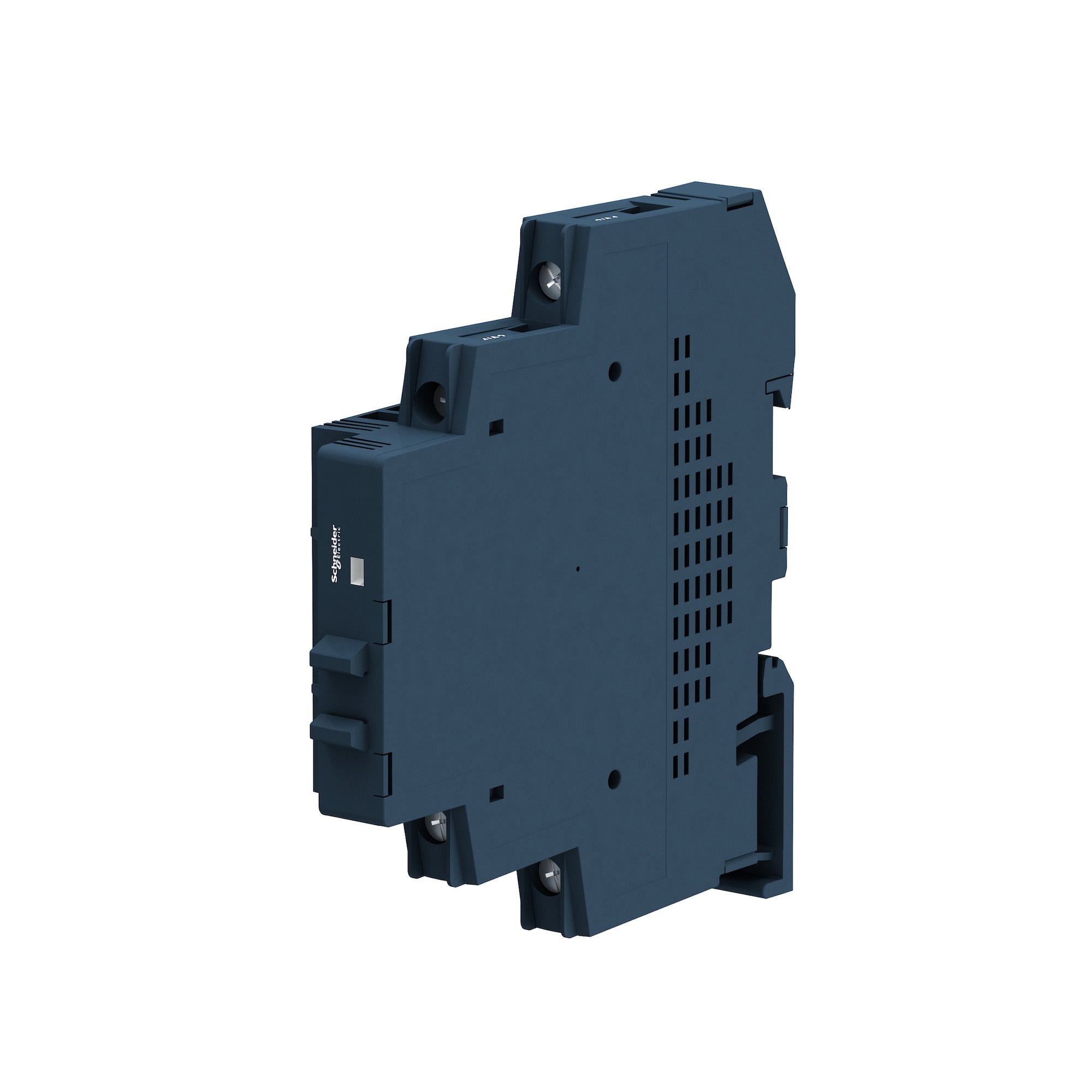

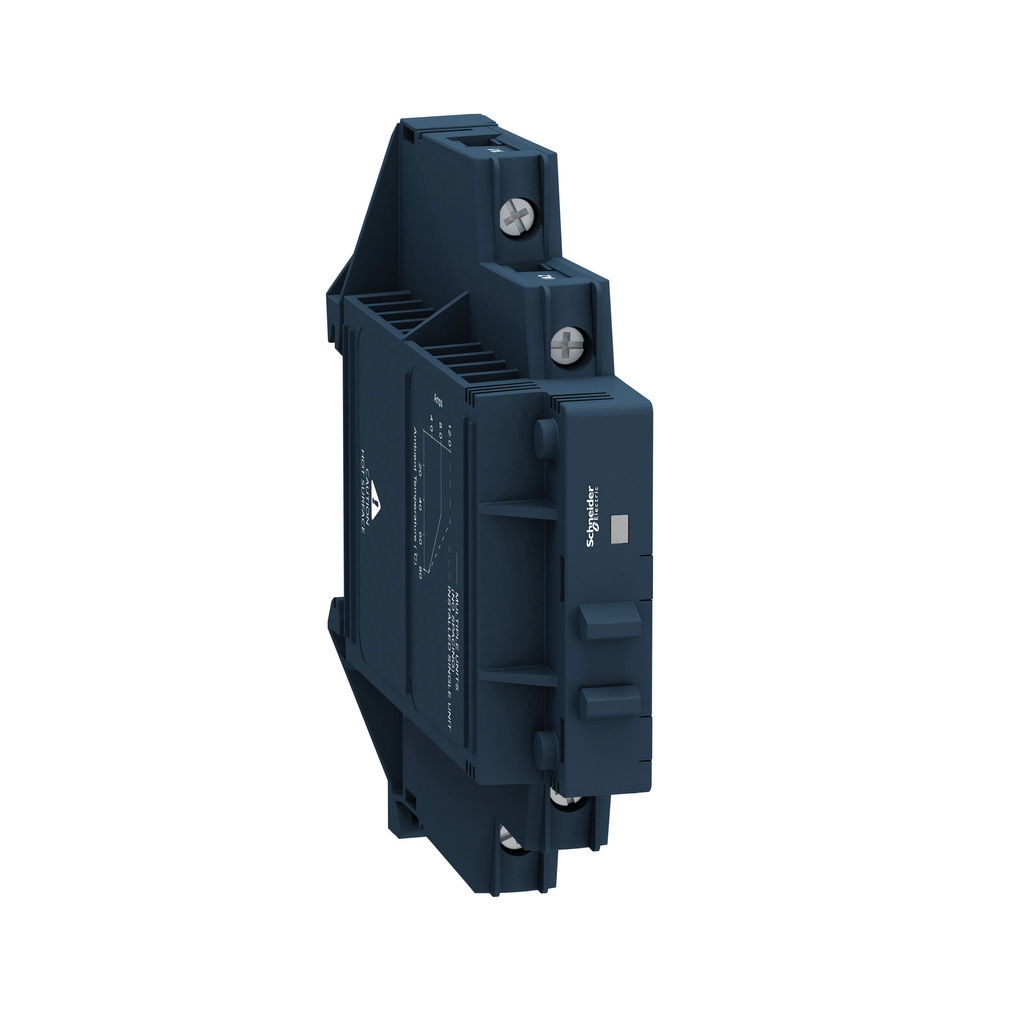

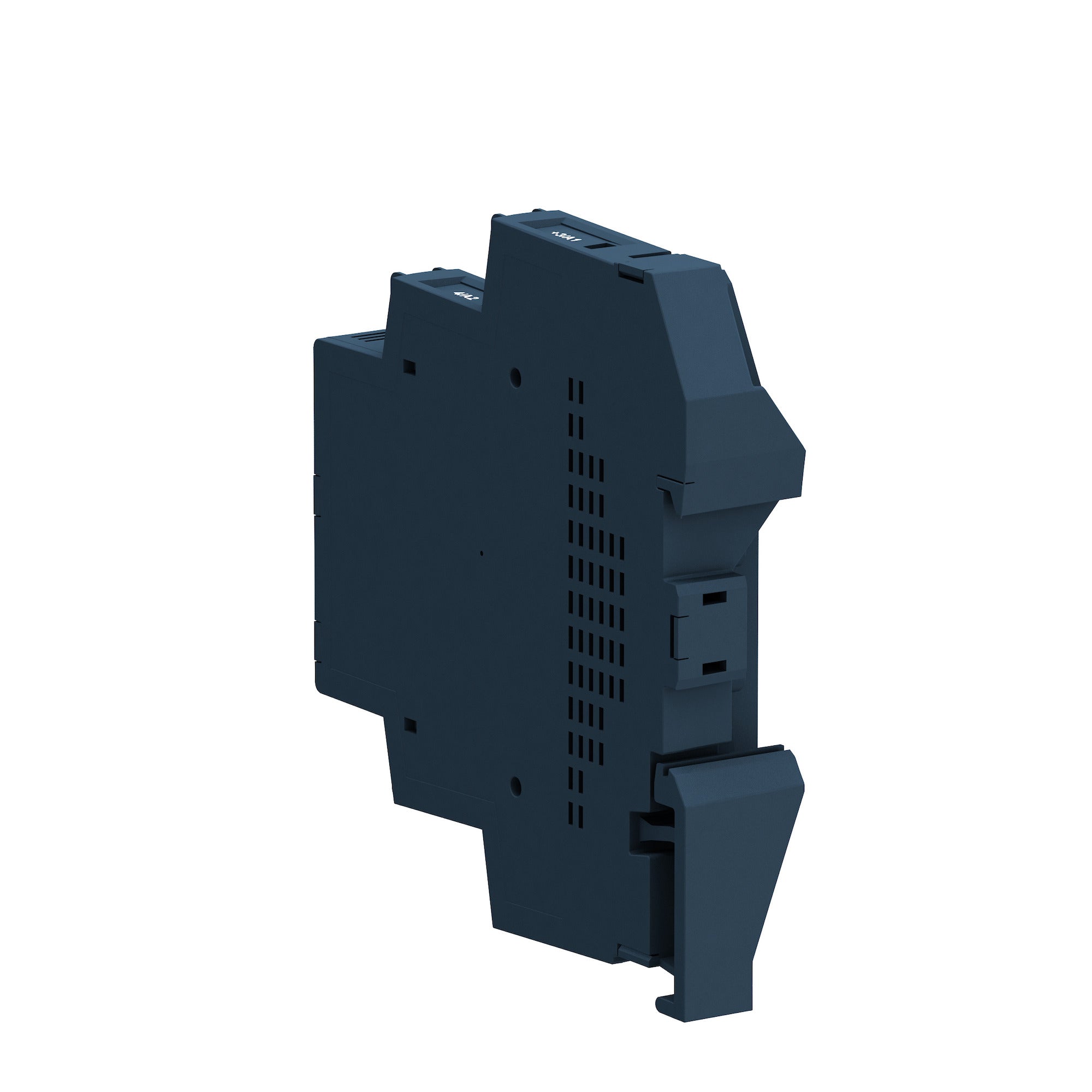

Schneider Electric SSM1A312BD single phase relay 12A DIN rail mount zero voltage switching

Product Description

The Schneider Electric SSM1A312BD is a single-phase solid-state relay. It features a control input of four volts to thirty-two volts DC and is rated at twelve amps. This relay works with load voltages ranging from forty-eight volts to six hundred volts AC using zero voltage switching.

• Input voltage: 4V to 32V DC
• Maximum load voltage: 48V to 600V AC

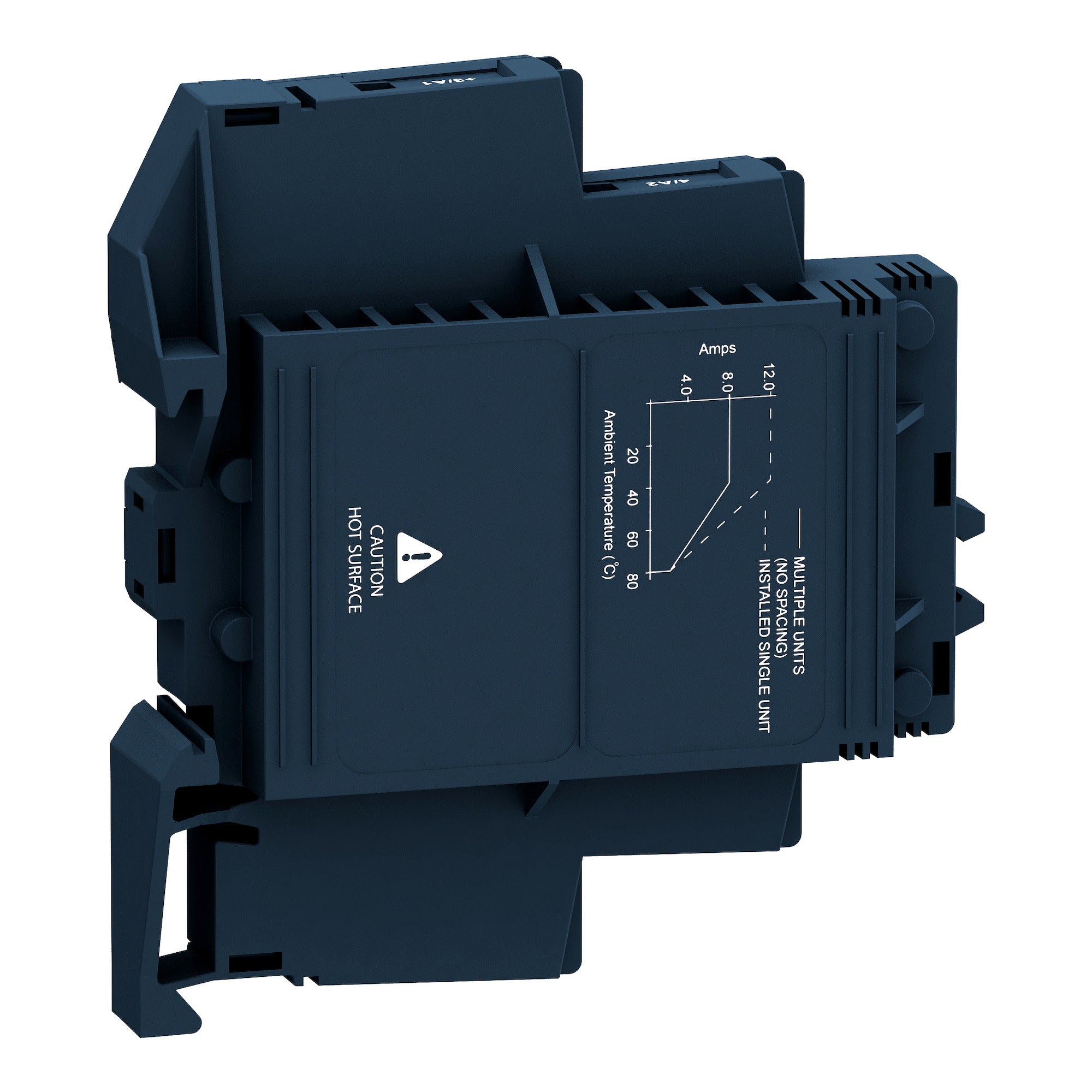

• Built-in heatsink for effective thermal management

Product Highlights

This solid-state relay provides silent operation due to the absence of moving parts. Its visual indicator simplifies monitoring of operational status. The design minimizes maintenance and potential downtime.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: SSM1A312BD

Technical Specifications

• Type: Solid state relay
• Amperage: 12 Amp
• Operating Temperature: -30 to 80 degrees C
• Country of Origin: Mexico
• Number of Phases: 1 Phase
• Output Voltage: 48-600 V
• Response Time: 0.5 cycle
• Input Current: 911 mA
