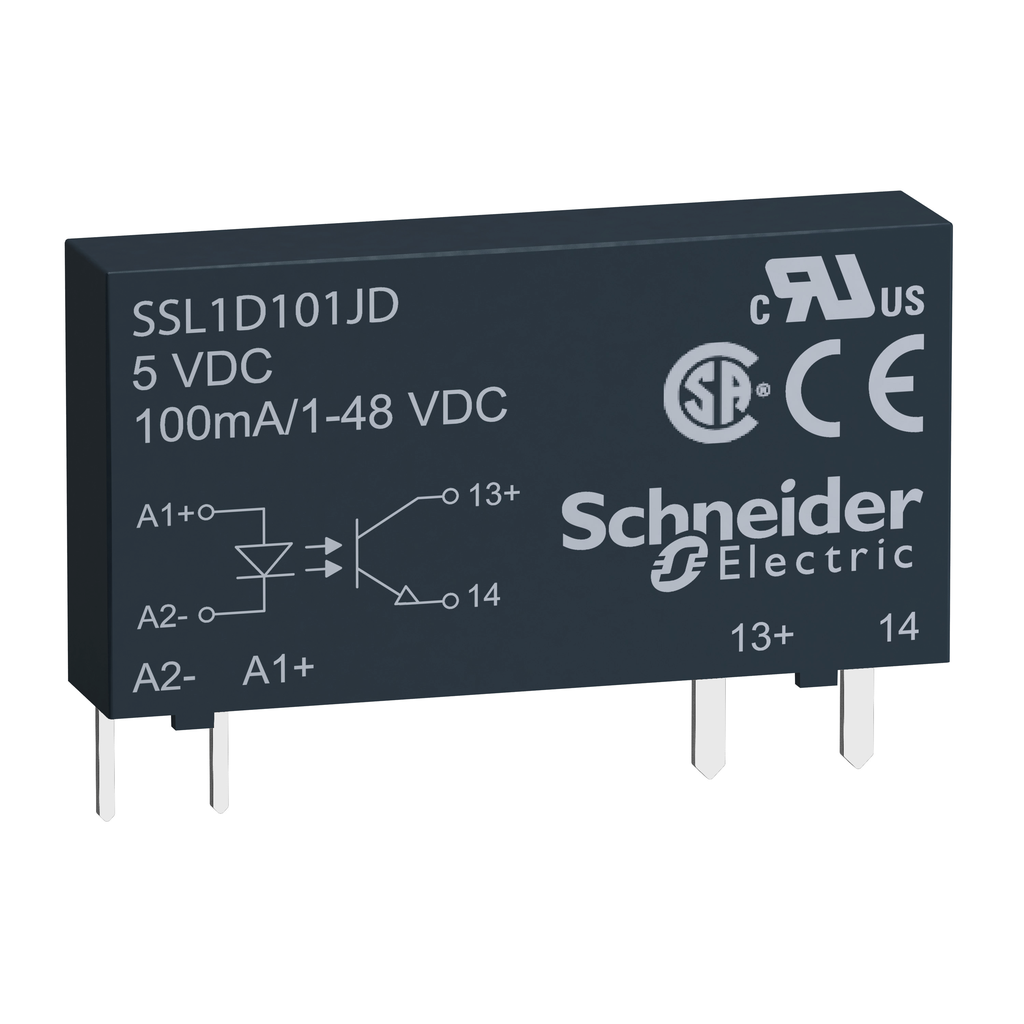

Schneider Electric SSL1D101JD plug in relay Harmo 0.1A (DC switching 3-12V DC input 1-48V DC output)

Product Description

The Schneider Electric SSL1D101JD is a solid state plug-in relay designed for various control applications. This relay operates with a control input of 3V to 12V DC, making it versatile for different systems. It excels with a rated load voltage of 1V to 48V DC, ensuring it meets diverse switching needs.

• Rated load voltage: 1 to 48 volts DC
• Input requirement: 3 to 12 volts DC
• Width: 6 millimeters including socket

Product Highlights

The SSL1D101JD is designed for silent operation with no moving parts, which results in high reliability. It also features an IP67 rating, making it suitable for use in harsh environments where shock and vibration resistance is crucial.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: SSL1D101JD
• Amperage: 0.1 Amp
• Width: 0.59 inches
• Height: 1.1 inches
• Depth: 0.59 inches
• Weight: 0.01 lb
• Operating Temperature: -20 to 80 degrees Celsius
• Storage Temperature: -20 to 85 degrees Celsius
• Certifications: CSA, UL
• Country of Origin: Mexico
