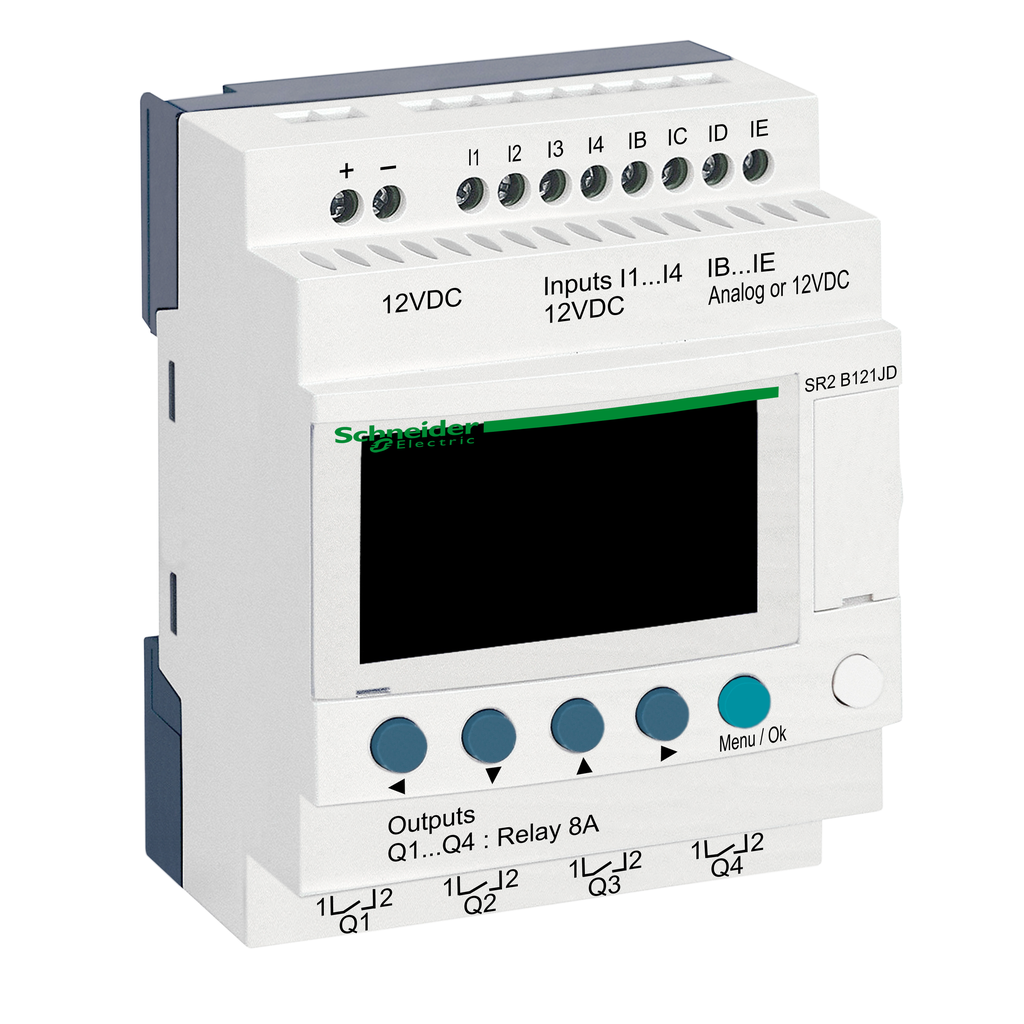

Schneider Electric SR2B121JD Square D 12 VDC 12-I/O PLC Compact Smart Relay

Product Description

This Schneider Electric SR2B121JD is a compact smart relay and programmable controller that operates at twelve volts direct current. It features twelve inputs and outputs with screw-clamp terminals. This product includes an integrated clock and LCD display, making it suitable for automation systems in both industrial and commercial settings. Its compact design allows for easy installation on DIN rail.

• Integrated clock and LCD display
• 12 inputs/outputs with screw-clamp terminals
• Compatible with Zelio Soft programming software

Product Highlights

This relay is ideal for simple management, remote control, and monitoring applications. With its straightforward programming and display capabilities, it can help diagnose malfunctions. It utilizes ladder programming, which is user-friendly for non-specialists. The unit also includes built-in EEPROM for data backup lasting up to ten years.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: SR2B121JD

Technical Specifications

• Type: Compact Smart Relay
• Standard: EN/IEC 61000-4 standards
• Country of Origin: France
• Weight: 0.55 lb
• Operating Temperature: -20 to 55 degrees Celsius
• Contact Configuration: NO Relay Output
• Warranty: 18 months
• Environmental Conditions: EMC directive compliance
