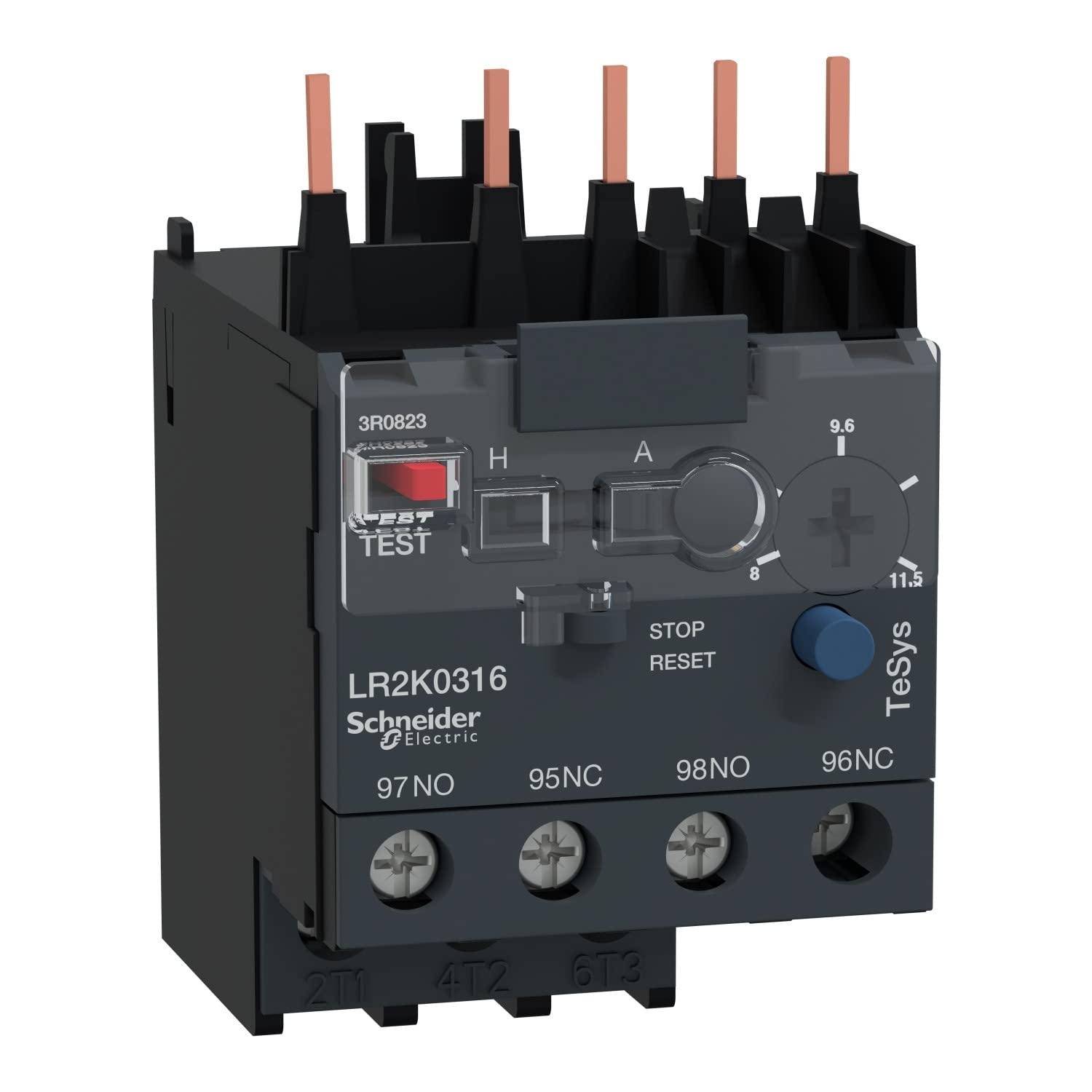

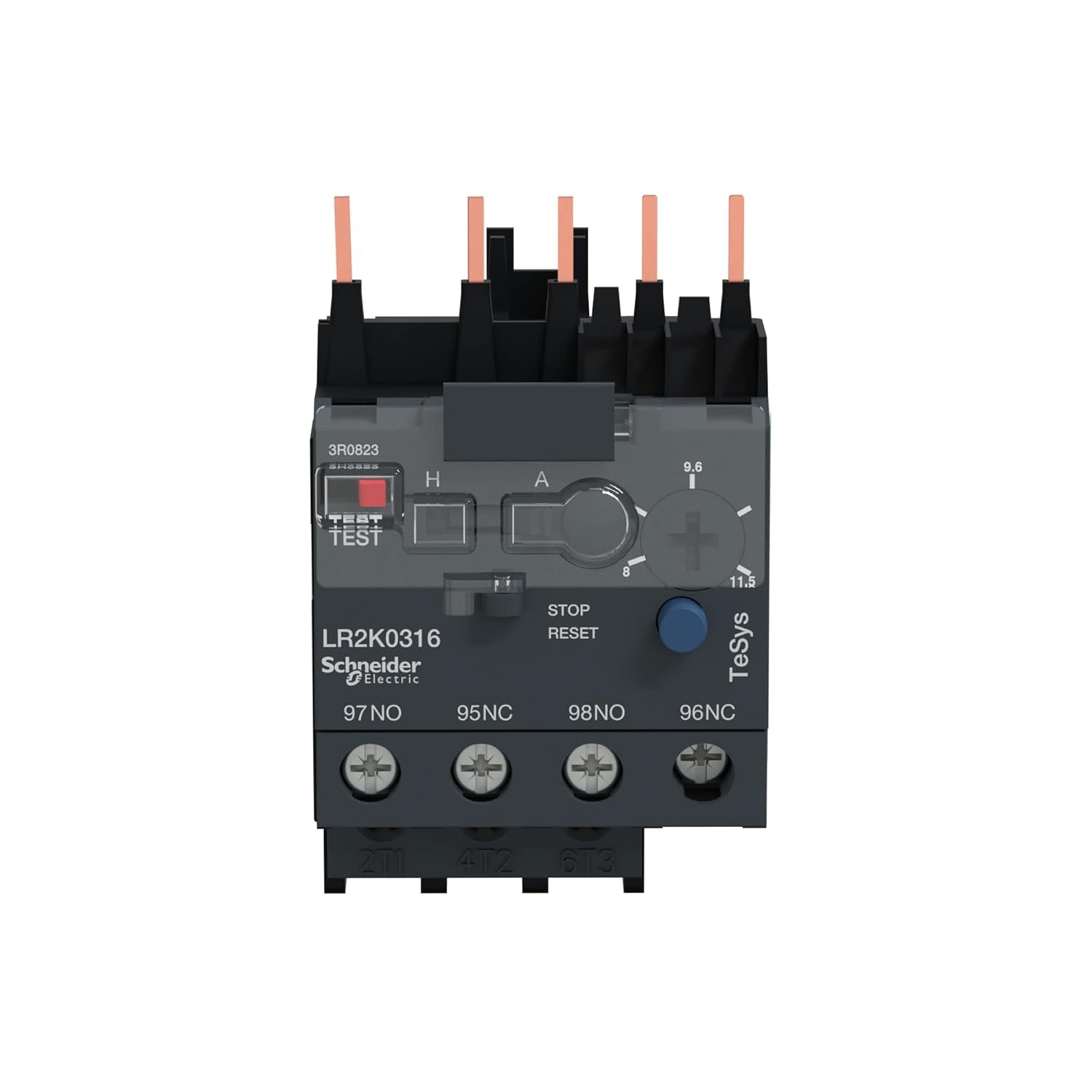

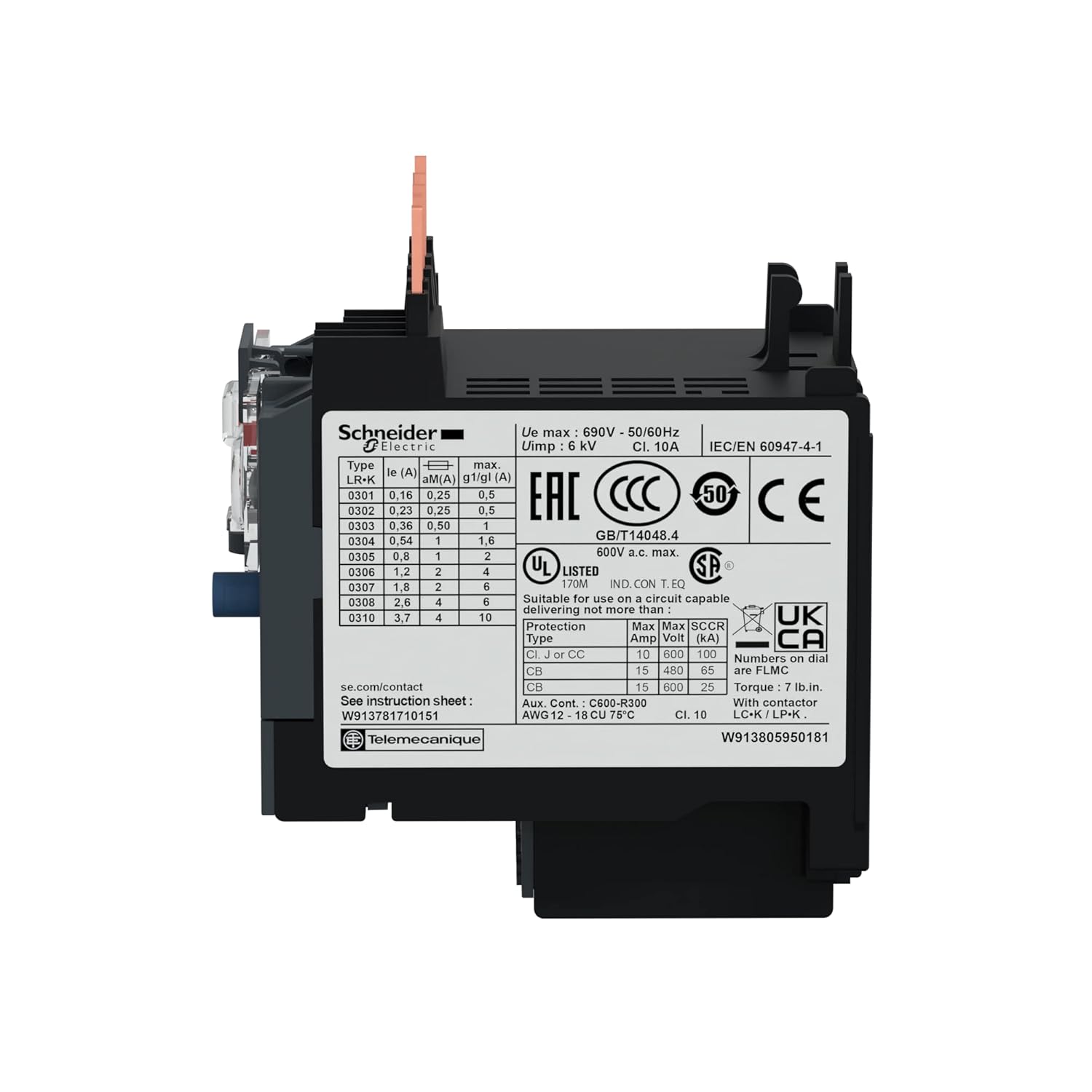

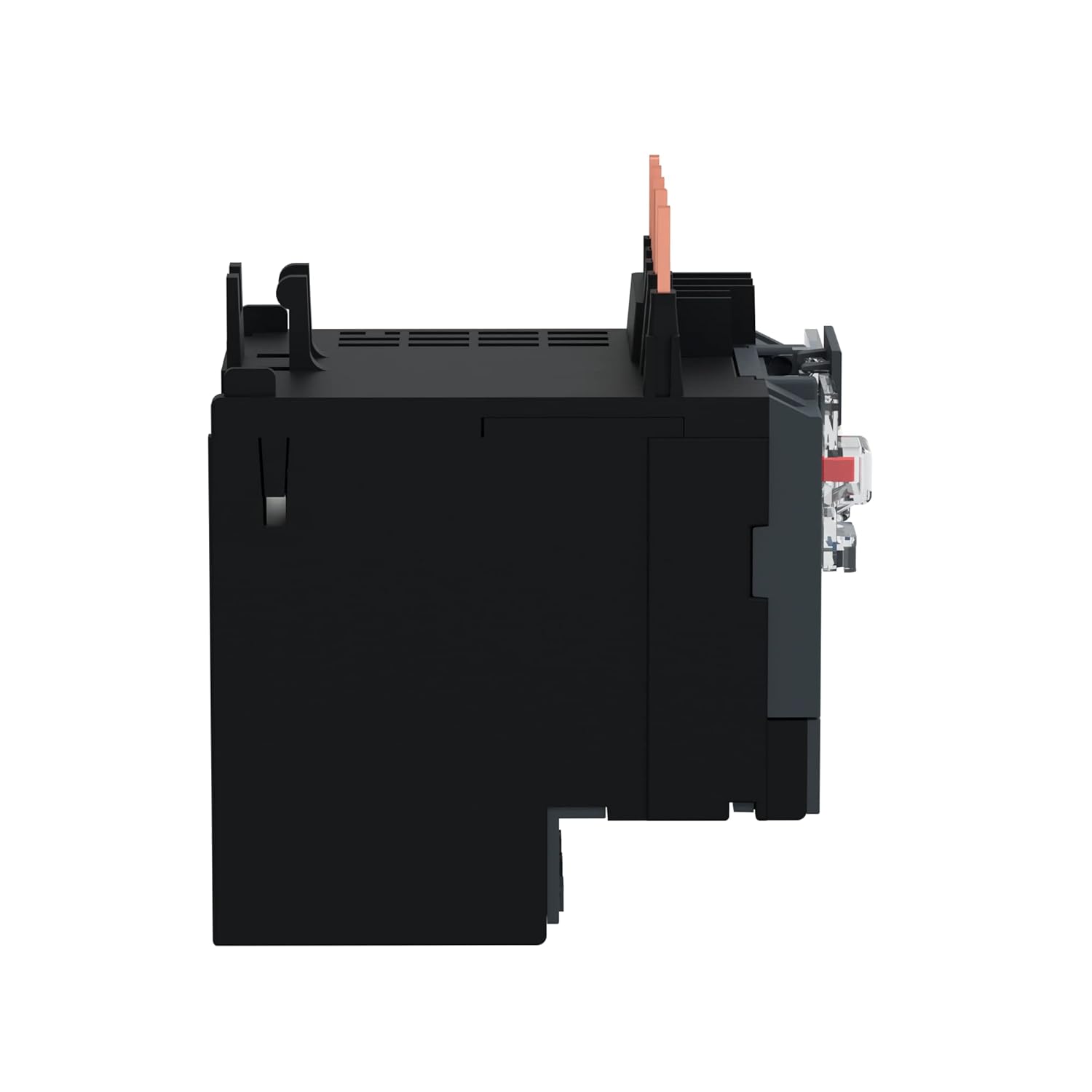

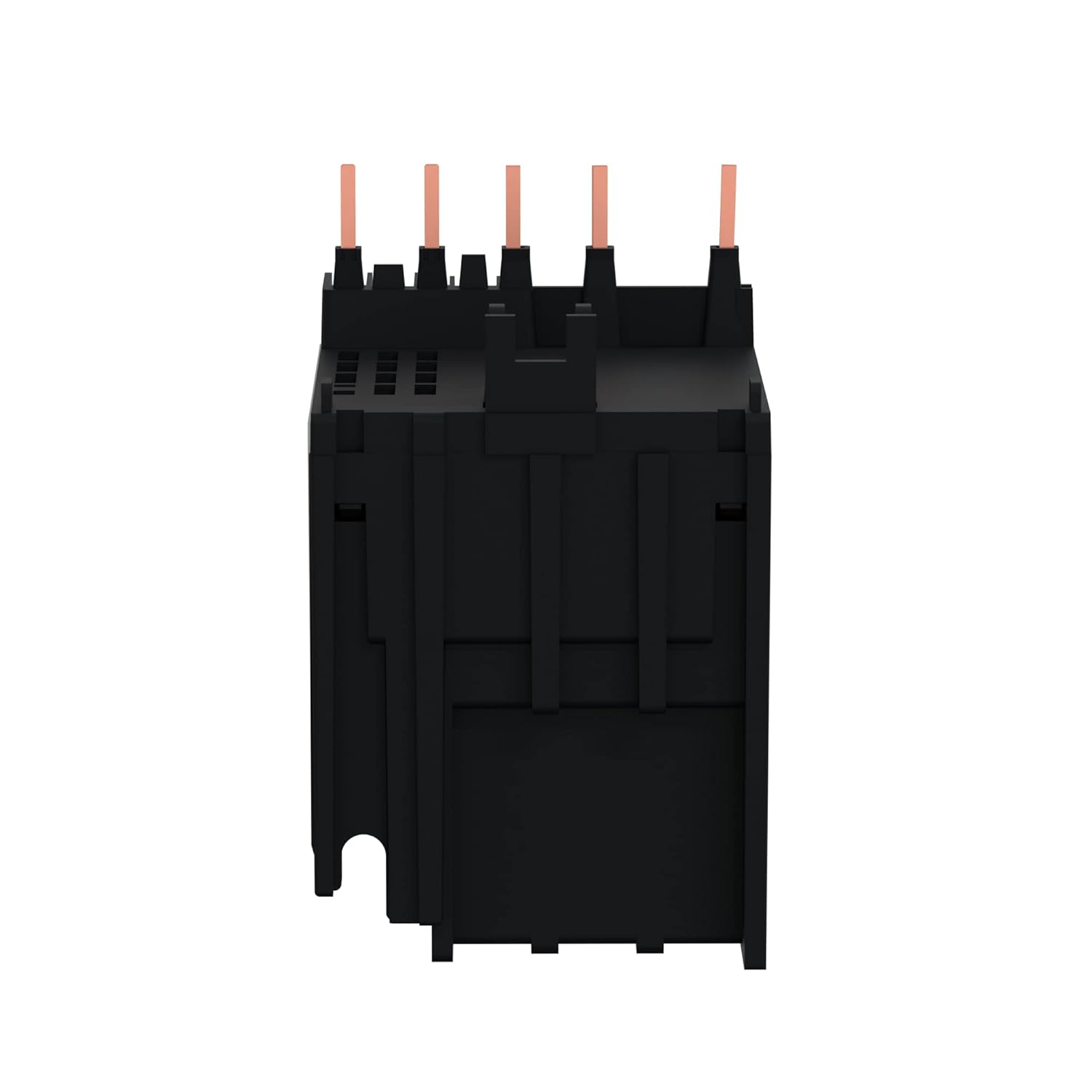

Schneider Electric LR2K0316 Overload Relay 8 to 11.5 Amp Class 10

Product Description

The Schneider Electric LR2K0316 Terminal Relay is engineered for reliability in industrial motor protection. It safeguards motors with 4kW capacity at 400V with its 8-11.5 ampere thermal range and class 10 tripping mechanism. Designed for direct mounting on TeSys K contactors, this product includes a phase unbalance protection feature and manual test and reset buttons.

• 8 to 11.5 ampere operational range, ideal for various industrial applications.
• Features manual and automatic reset options, enhancing operational efficiency.
• Incorporates 1NO+1NC auxiliary contacts for comprehensive protection.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Terminal Relay

Technical Specifications

• Item Dimensions: 2.83 x 3.35 x 1.89 inches
• Weight: 5.5 ounces
• Protection Class: Trip Class 10
• Certifications: IEC, UL, CSA, CCC, EAC, Marine
• Compliance: RoHS/REACH
