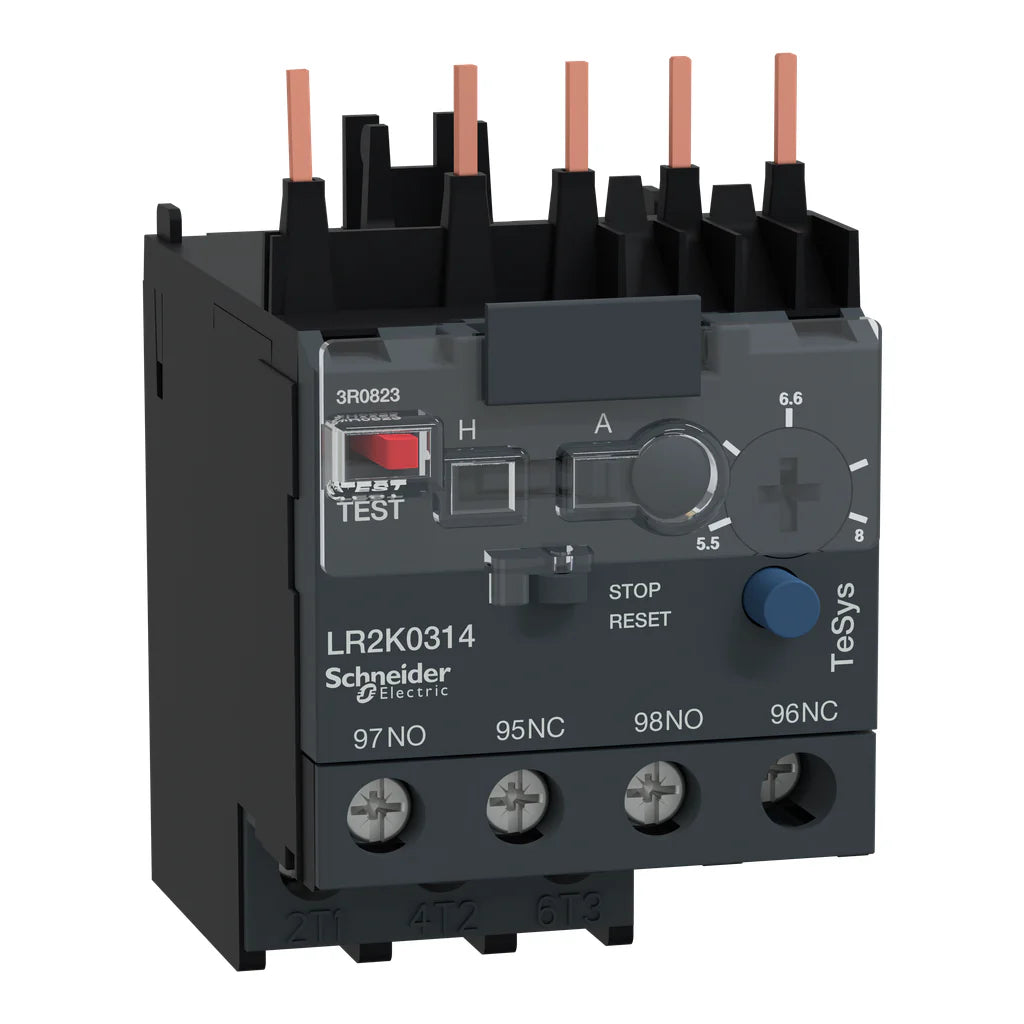

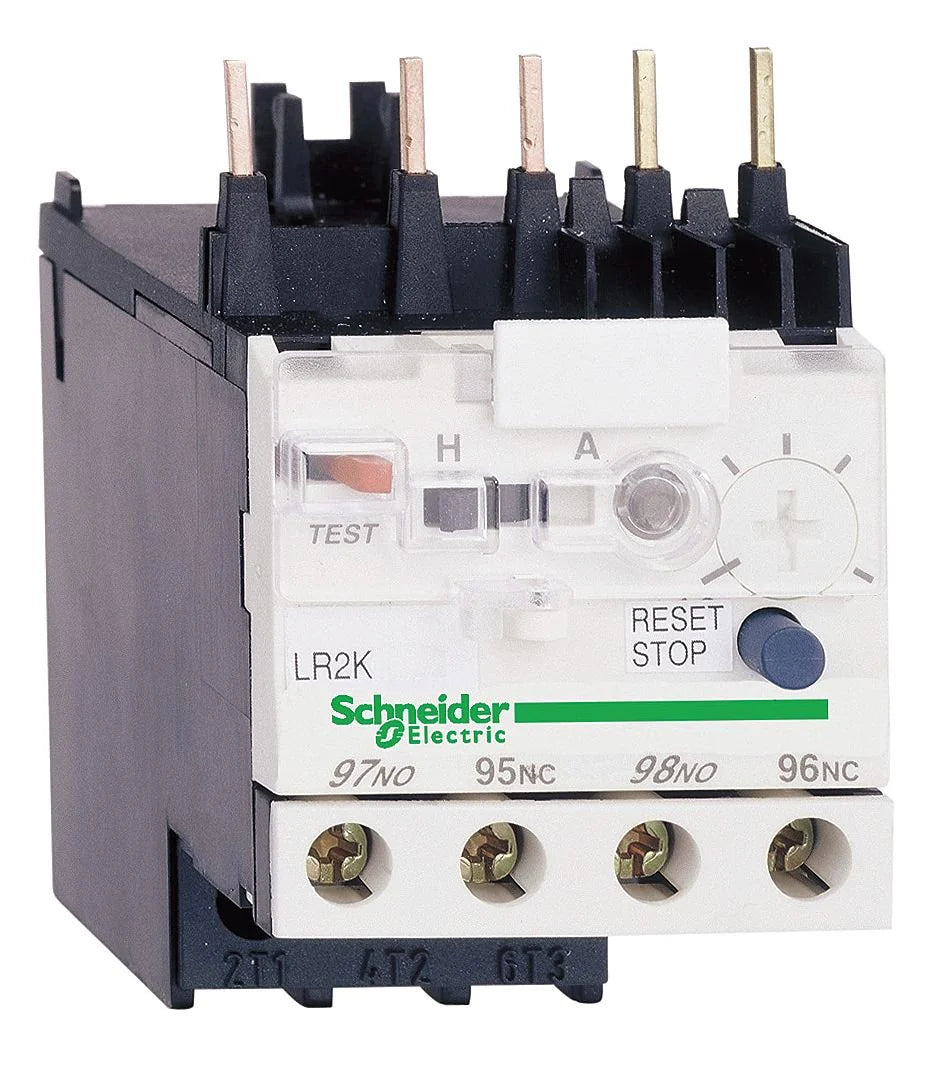

Schneider Electric LR2K0314 TeSys K Thermal Overload Relay 5.5-8A Class 10

Product Description

Ensure motor protection with the Schneider Electric LR2K0314 Thermal Overload Relay. Designed for TeSys K contactors, this Class 10 relay offers precise motor operation safety by detecting and managing overload conditions.

• Adjustable trip current from 5.5 to 8 amps
• Class 10 trip time for quick reaction to overloads
• DIN rail mountable for easy installation

Product Highlights

The LR2K0314 relay is ideal for protecting motors in industrial settings. It disconnects power to the motor upon detection of an overload, minimizing potential damage to motor windings. It features a compact design, multi-standard certifications (IEC, UL, CSA, CCC, EAC), and compliance with RoHS/REACH standards.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LR2K0314
• Mounting Type: DIN rail

Technical Specifications

• Current Range: 5.5 to 8 Amps
• Protection Class: Class 10
• Standards: IEC, UL, CSA, CCC, EAC, RoHS/REACH compliant
• Mounting: DIN rail with optional terminal block LA7K0064 (not included)
• Country of Origin: France
