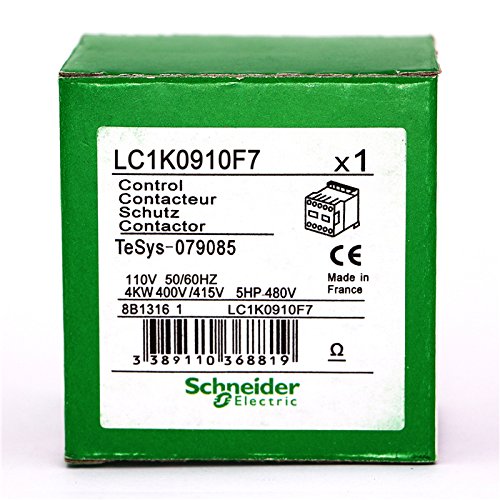

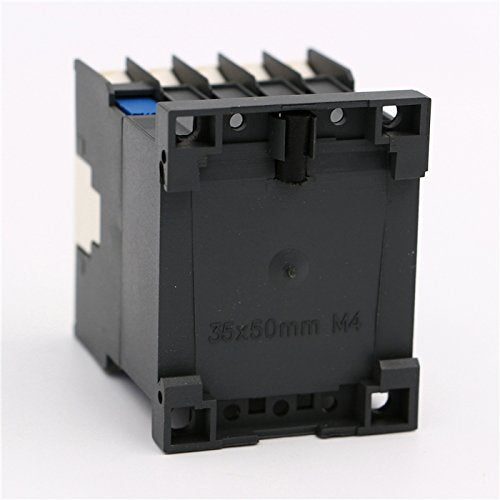

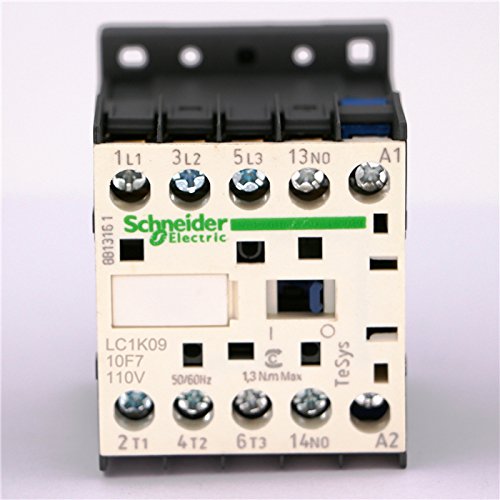

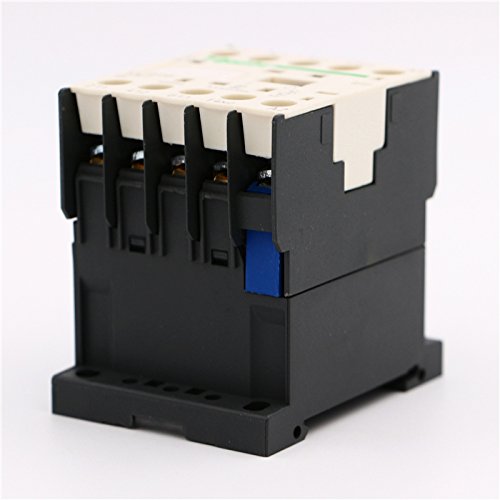

Schneider Electric LC1K0910F7 TeSys K Contactor 9A 110V AC (3P Size)

Product Description

The Schneider Electric TeSys K Mini Contactor, model LC1K0910F7, is engineered for seamless integration into various control systems and is primarily used to create motor starters for diverse applications. With its compact design, this 9A, 110V AC coil contactor offers easy installation and reliable performance in controlling motors, HVAC systems, and lighting setups across industrial settings.

• Supports up to 5 horsepower motors at 480VAC in 3-phase setups.
• Features a durable build suitable for frequent operation with up to 3600 cycles per hour.
• Equipped with one normally open auxiliary contact and lacks an enclosure for flexible use.

Product Highlights

Constructed for both local and international use, the contactor accommodates multiple standards including IEC, UL, CSA, CCC, and EAC certifications. The Green Premium mark denotes compliance with RoHS and REACh environmental standards, ensuring an eco-friendly operation. 12>

Product Information

Standard Information

• Weight: 7.05 Ounces
• Dimensions: 2.28 inches by 1.77 inches by 2.24 inches

Technical Specifications

• Product Type: Non-Reversing Contactor
• Control Circuit Voltage: 110V AC
• Operational Frequency: 50/60 Hz
• Amperage: 9A
• Shock Resistance: G10 for 11 ms
• HP Ratings: up to 5 HP at 575V in a 3-phase setting
