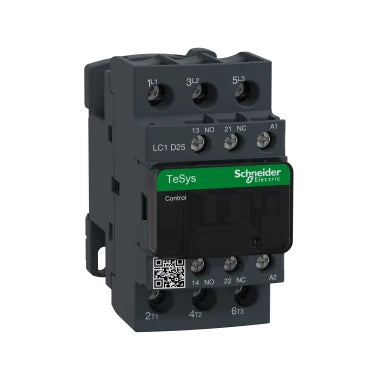

Schneider Electric LC1D25LE7 IEC Magnetic Contactor 208VAC 25A 3-Pole Non-Reversing

Product Description

The Schneider Electric Contactor Model LC1D25LE7 is engineered for reliability in industrial motor control applications. Suited for both DIN rail and panel mounting, this device simplifies creating efficient motor starters for diverse applications.

• Supports up to 25 amps for inductive load applications
• Robust three-pole design with 1NO/1NC auxiliary contact configuration
• Features a 208VAC coil voltage and is non-reversing

Product Highlights

This contactor is designed for a mechanical life of 15 million operations and includes built-in auxiliary contacts, ensuring robust performance and durability.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D25LE7

Technical Specifications

• Voltage: 208 VAC
• Amperage: 25 A
• Number of Poles: 3
• Health and Safety Compliance: UL, CSA certified
• Product Dimensions: Height: 3.36 inches, Width: 1.77 inches, Depth: 3.62 inches
• Weight: 0.82 lbs
