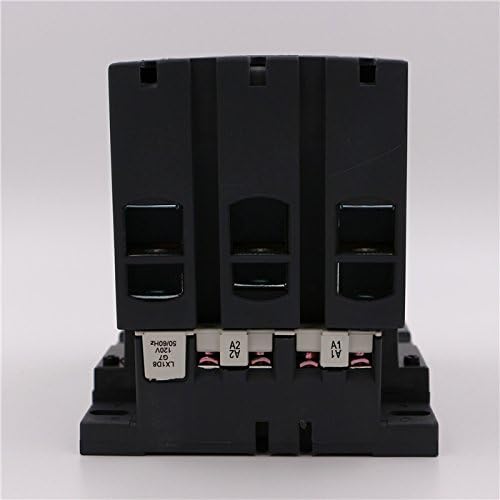

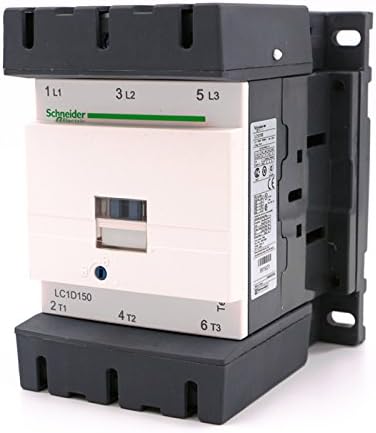

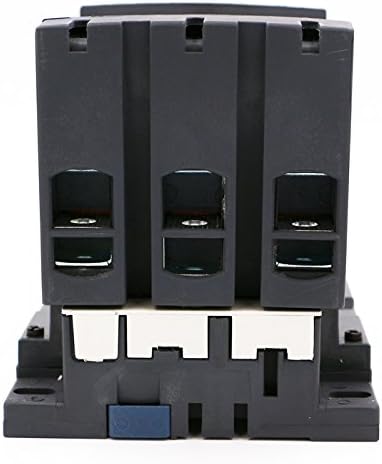

Schneider Electric LC1D150G7 New DC Contactor 3P 150A 120V

Product Description

The Schneider Electric LC1D150G7 is a versatile DC contactor designed for industrial applications. This contactor operates with a 120V AC coil and is rated for 150A inductive loads. It ensures reliable motor control with its compact and durable design.

• Operates at 120V AC
• Handles 150A inductive loads
• Compact, durable design

Product Highlights

Schneider Electric LC1D150G7 contactor is a high-performance solution for motor control up to 150A. It features both normally open and normally closed contacts for reliable operation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: LC1D150G7
• Full Load Amps - Inductive: 150A
• Full Load Amps - Resistive: 200A
• Number of Poles: 3
• Coil Voltage: 120V AC 50/60 Hz
• HP at 3 Phase - 200 to 208V: 40 HP
• HP at 3 Phase - 240V: 50 HP
• HP at 3 Phase - 480V: 100 HP
• HP at 3 Phase - 600V: 125 HP
• Auxiliary Contact Configuration: 1NO/1NC
• Height: 6.22 inches
• Width: 4.72 inches
• Depth: 5.35 inches
• Weight: 5.51 lbs
• Certifications: UL, CSA, IEC, CCC, EAC
• Operating Temperature: -40 to 70 degrees C
• Storage Temperature: -60 to 80 degrees C

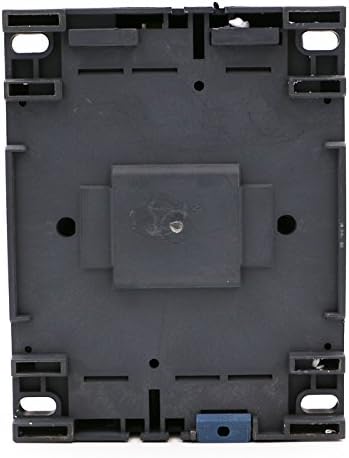

• Mounting: Rail or Plate
• Warranty Length: 18 months
• Country of Origin: United States
