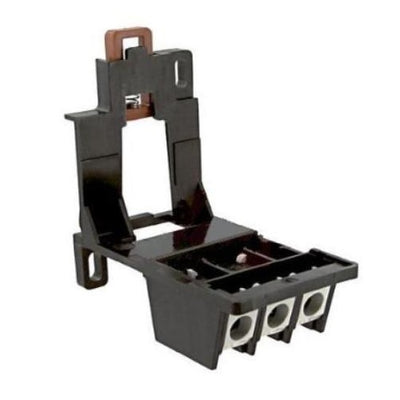

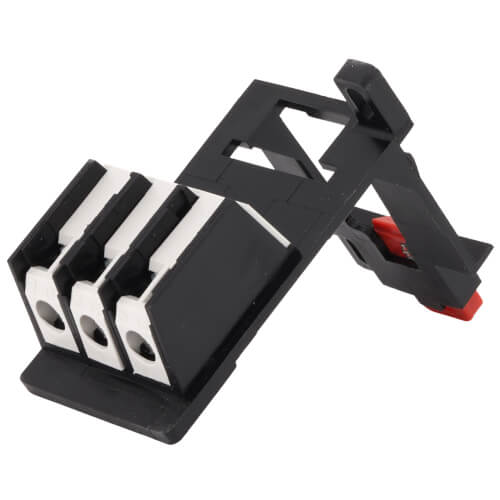

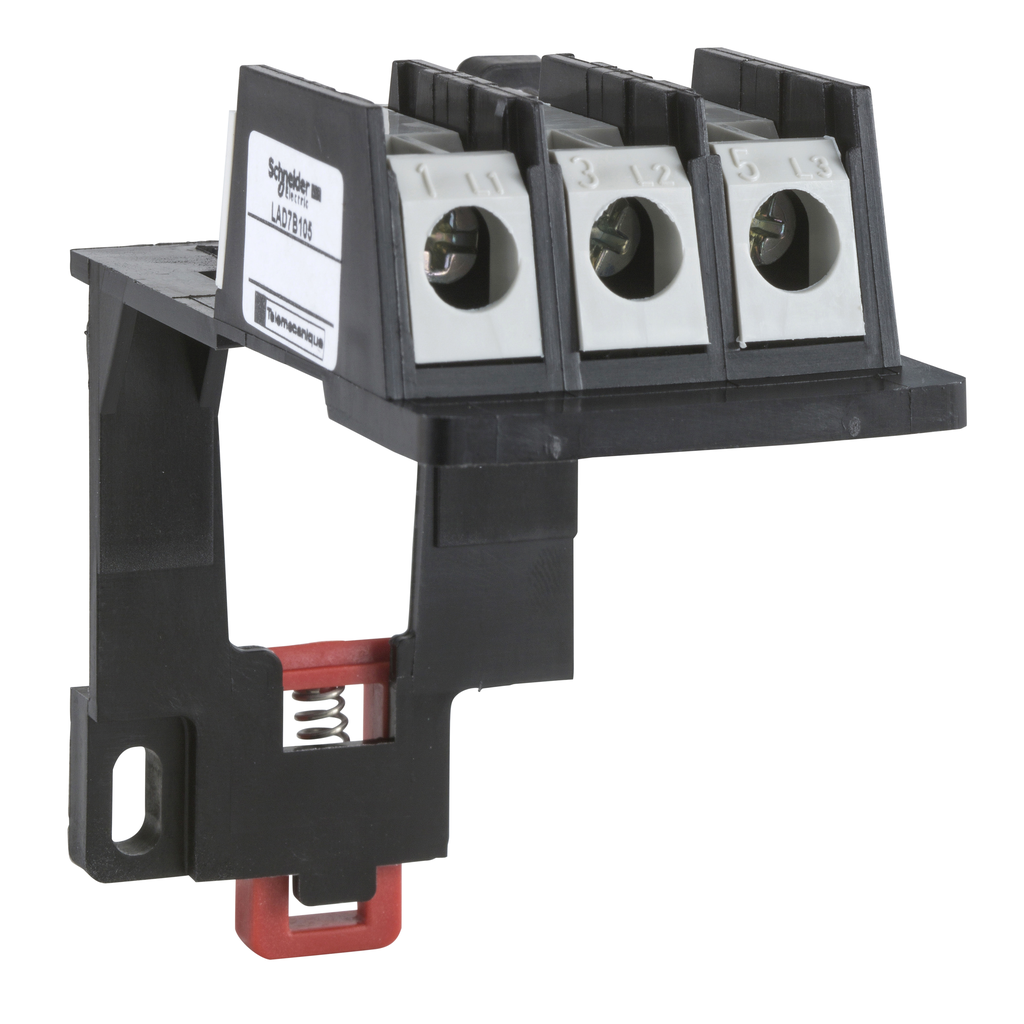

Schneider Electric LAD7B105 DIN Rail Terminal Block 100 mm 45 mm 82 mm

Product Description

The Schneider Electric LAD7B105 DIN Rail Terminal Block is designed for efficient mounting of thermal overload relays LRD15 and LR3D15. Its robust build allows for clip-on fixing on 35 mm DIN rails or screw fixing, ideal for separate mounting between overload relay and contactor in industrial settings.

• Supports top connections with screw clamp terminals.
• Clip-on and screw fixing options available for 35 mm DIN rail.
• Green Premium compliant for environmental safety (RoHS/REACh).

Product Highlights

Made in France, this terminal block facilitates organized and secure connections in automation panels, control systems, and power distribution setups. Its compact design and compliance with Green Premium standards ensure both functionality and sustainability.

Product Information

Standard Information

• Mounting Type: 35 mm DIN-rail or screw.
• Size: 45 mm x 100 mm x 82 mm.

Technical Specifications

• Weight: 0.22 lb (0.1 kg).
• Type: Overload Relay Terminal Block.
• Brand: Schneider Electric.
• GTIN: 03389110603507.
• Applications: Terminal blocks for separate mounting on 35mm rail or panel for LRD15, LR3D15 overload relays.
• Connection: Screw clamp.
• Number of Poles: 3 Pole.
• Warranty: 18 months.
