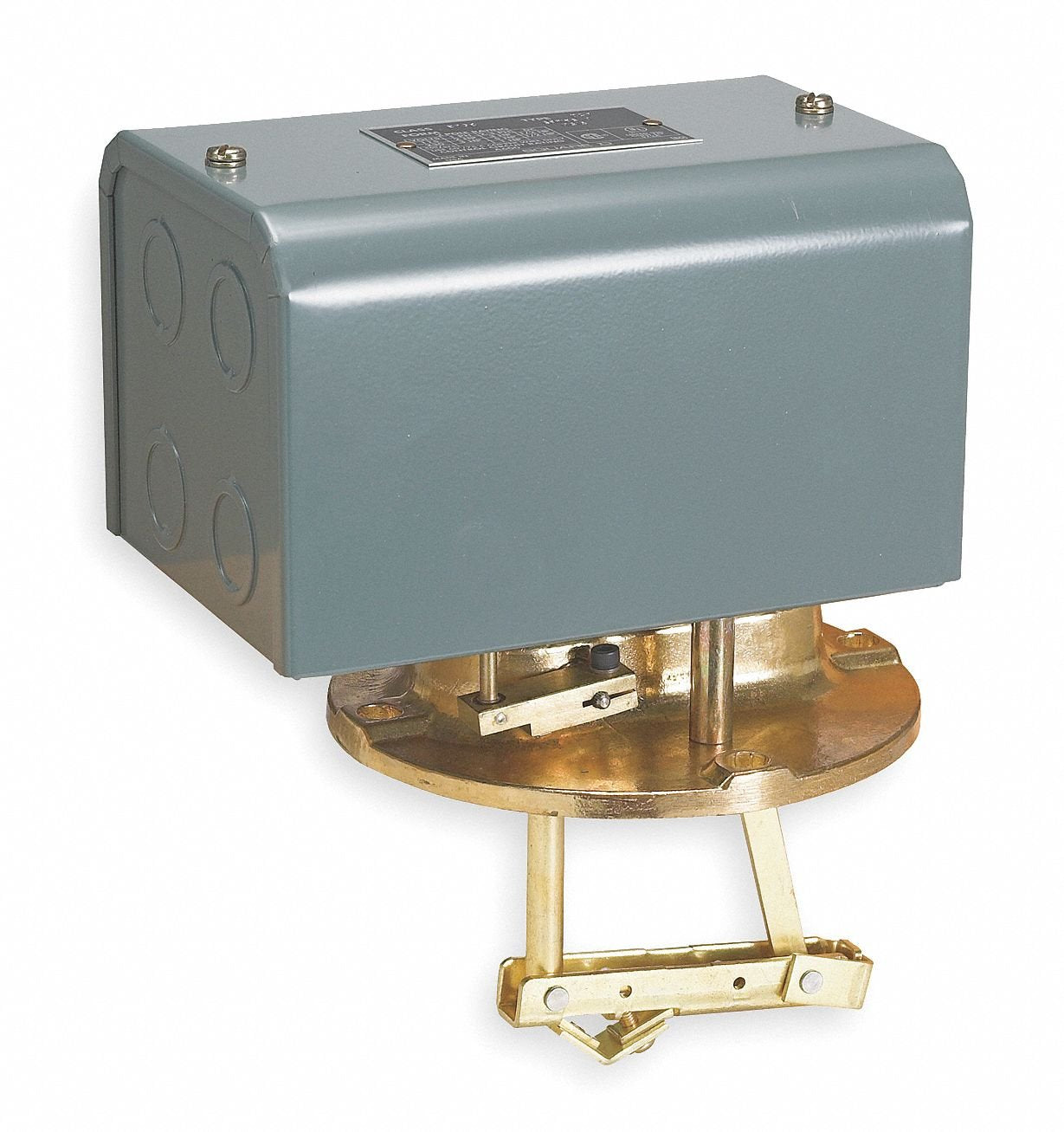

Schneider Electric 9038DG7 Liquid Level Switch 600VAC

Product Description

The Schneider Electric 9038DG7 Liquid Level Switch is an essential device for monitoring liquid levels in tanks. It operates with vertical mounting and features a close on rise switch function for direct motor load management.

• Directly controls motor loads, reducing the need for external devices.
• Robust steel body ensures long-term durability in various environments.
• Comes with reliable DPST contact form and supports up to 600 volts.

Product Highlights

Equipped with a mechanical alternator, this switch controls the liquid level precisely, essential for applications like sump pumps and water tanks.

Product Information

Standard Information

• Mounting: Vertical Open Tank
• Float Travel: 8.75 inches

Technical Specifications

• NEMA Rating: 1
• Tank Connection Size: 5-1/8 inches
• Max. Pressure: 50 psi
• Operating Temp. Range: -22 to 220 degrees Fahrenheit
• Overall Length: 3.86 inches
• Height: 9.82 inches
• Width: 6.50 inches
• Max. Current: 600A
