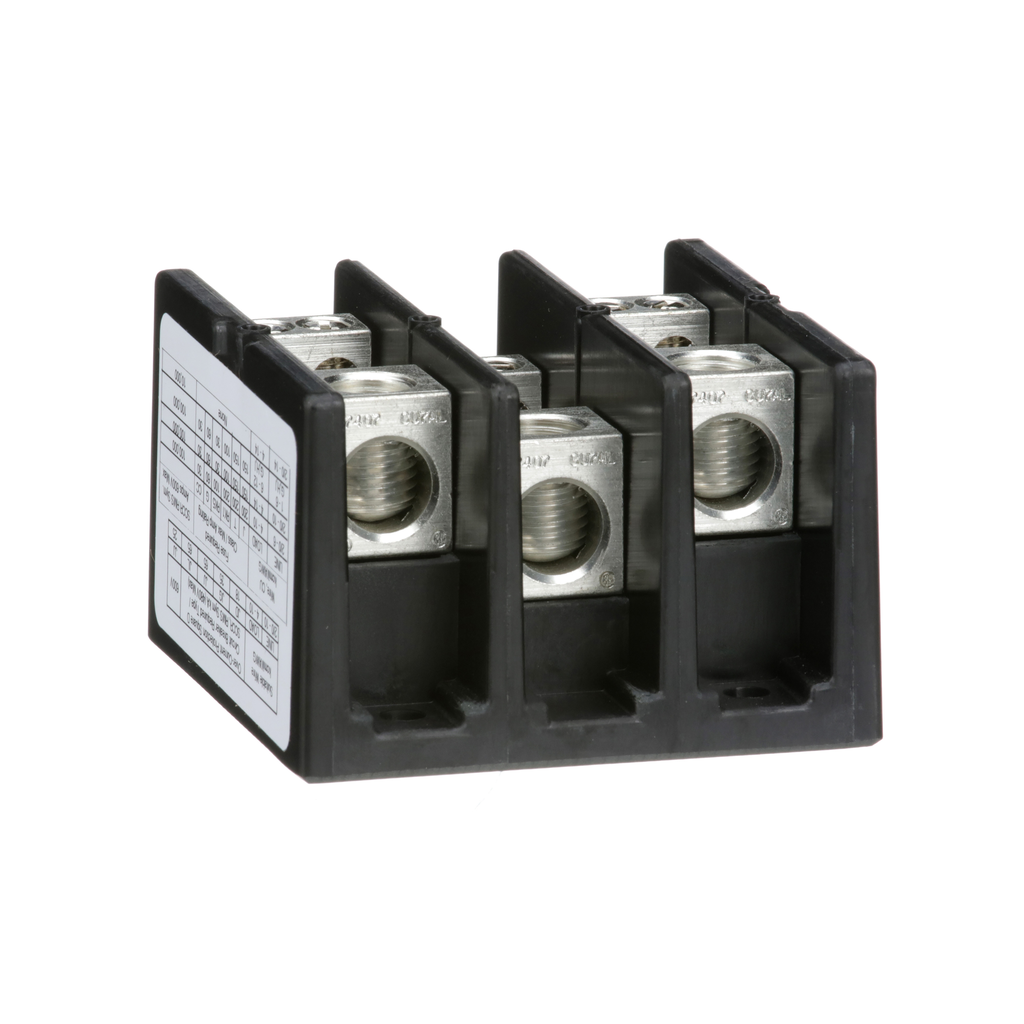

Square D 9080LBA362104 Power Distribution Block 600 Volt 175 Amp

Product Description

The Square D 9080LBA362104 power distribution block by Schneider Electric offers reliable performance in electrical circuits. This block is designed for efficient power distribution in high-capacity systems.

• Rated for 600 volts and up to 175 amperes.
• Compatible with both aluminum and copper wires.
• Three pole design.

Product Highlights

This power distribution block is ideal for terminating wires. It supports aluminum and copper conductors, rated for 175 amperes with copper and 135 amperes with aluminum.

Product Information

Standard Information

• Catalog Number: 9080LBA362104
• Brand: Square D

Technical Specifications

• Voltage: 600 Volt
• Amperage: 175 Amp copper / 135 Amp aluminum
• Current: 135 Amp
• Material: Phenolic, Block
• Wire Size: Line side: 14-2/0 AWG; Load side: 14-4 AWG
• Connection: Tin plated aluminum lugs
• Surface Mount: Yes
• Height: 2.88 inches
• Width: 1.94 inches
• Depth: 1.78 inches
• Operating Temperature: -40 to 302 degrees F
• Short Circuit Current: 65 kA
• Certifications: CE, CSA, UL
• Country of Origin: USA
