Square D 9070TF100D3 Transformer Control 100VA 208V 120V

Product Description

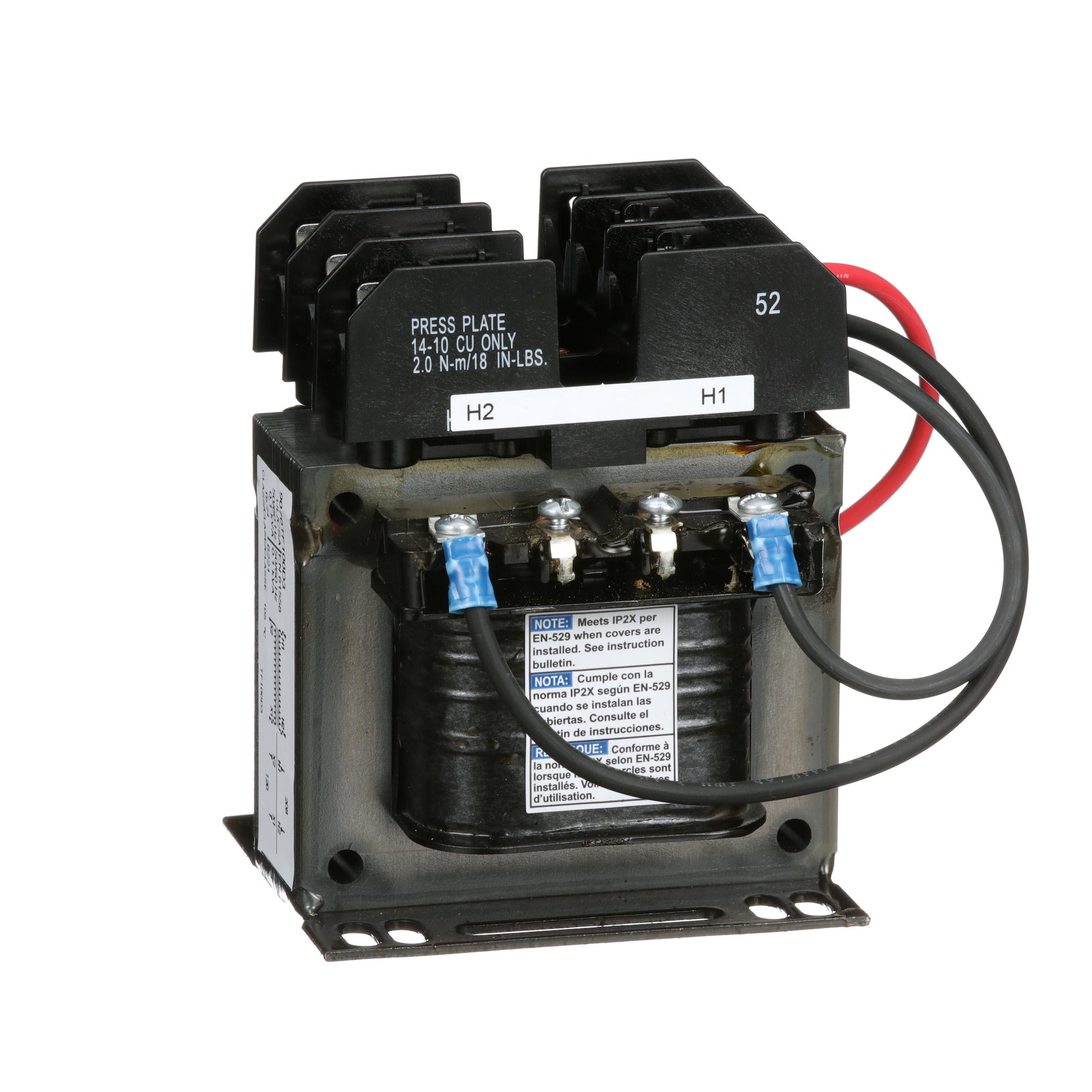

The Square D 9070TF100D3 is a robust industrial control transformer designed for efficiency and reliability. It features a 100 VA power rating with a primary voltage of 208 volts and a secondary voltage of 120 volts, suitable for various industrial applications.

• Integrated with dual primary and a single secondary fuse block.
• Compact design with dimensions of 4.18 inches in height, 3.38 inches in width, and 3.34 inches in depth.
• Optimized for machinery OEMs and panel builders.

Product Highlights

This transformer is built with copper winding material, ensuring excellent conductivity and durability. Its clamp terminal connections offer secure and easy wiring.

Product Information

Standard Information

• Brand: Square D
• Model: 9070TF100D3

Technical Specifications

• Type: TF
• Approvals: UL Listed, CSA Certified, CE Compliant
• Primary Voltage: 208 V
• Secondary Voltage: 120 V
• Phase: 1
• Temperature Rise: 55 degrees Celsius
• Material: Copper: Winding
• Country of Origin: Mexico
