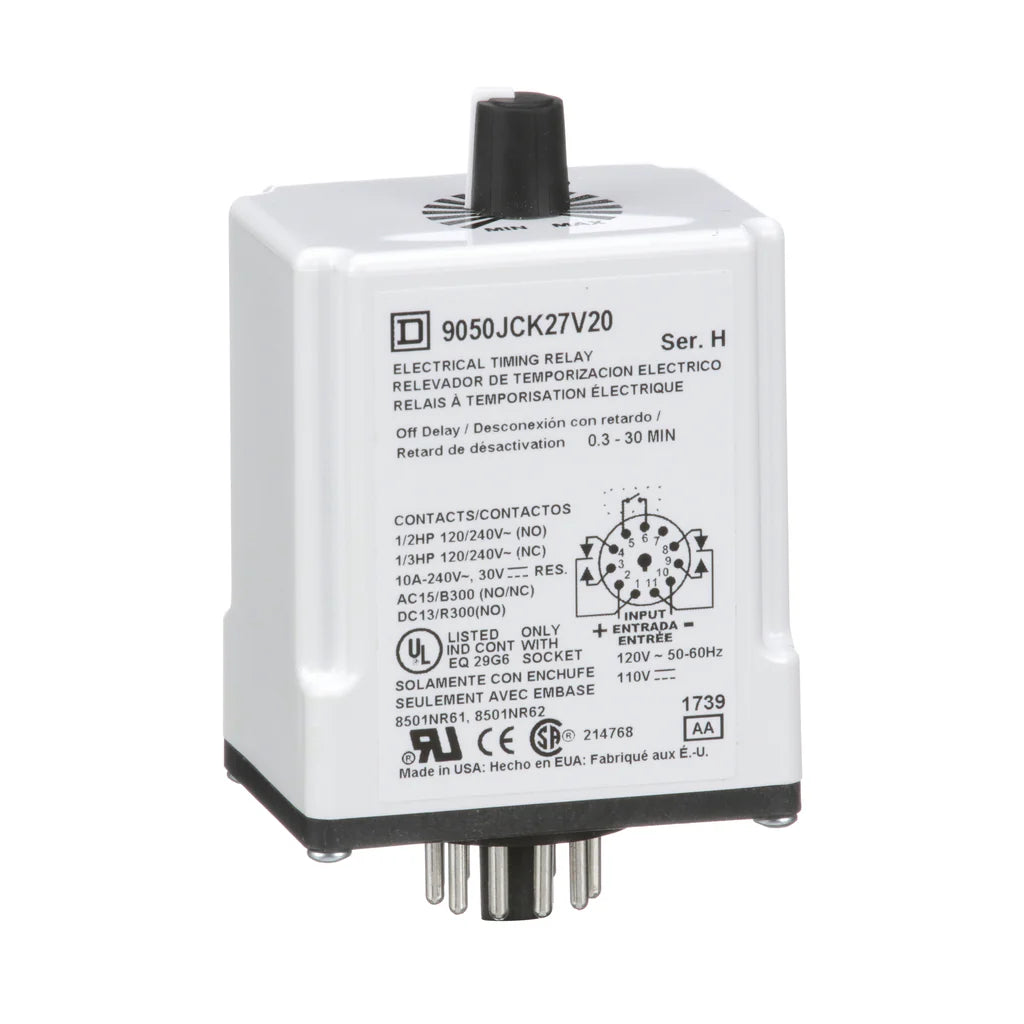

Schneider Electric 9050JCK27V20 Time Delay Relay 120VAC DPDT 10A

Product Description

The Schneider Electric 9050JCK27V20 Time Delay Relay is a versatile device designed for precise timing and control functions. It operates at 120 volts and features a double-pole, double-throw (DPDT) contact configuration, making it suitable for various industrial and commercial applications.

• Provides low-cost timing in a plug-in housing
• Adjustable time delay ranges from 0.3 seconds to 30 minutes
• UL Listed and CSA Certified for reliable performance

Product Highlights

This time delay relay is ideal for motor controls, lighting systems, and automation processes. Its durable construction ensures long-lasting performance, while the adjustable delay allows for customized operation. Compatible with 8501NR61 and 8501NR62 relay sockets.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9050JCK27V20

Technical Specifications

• Type: Timer; DPDT
• Coil Voltage: 120V AC/DC
• Contact Rating: 10A at 120/240V AC, 30V DC
• Timing Range: 0.3 seconds to 30 minutes
• Mounting Type: Socket
• Number of Pins: 11
• Power Consumption: 2 VA
• Operating Temperature: -18 to 151 degrees F
