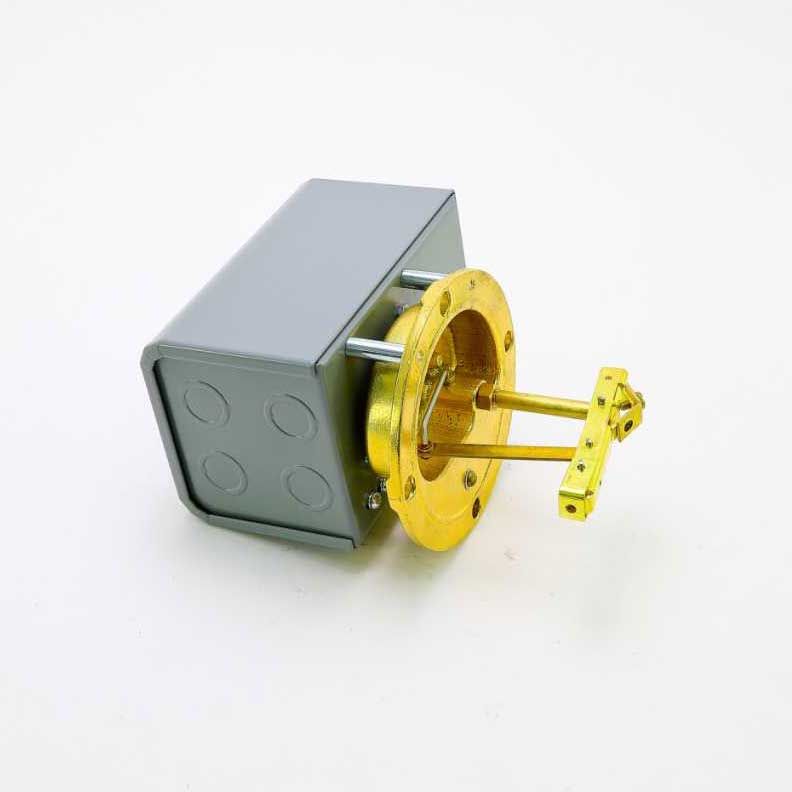

Schneider Electric 9038DG8 Mechanical Alternator for Industrial Use

Product Description

Schneider Electric’s model 9038DG8 is a mechanical alternator designed for managing motor loads in industrial environments. This unit is ideal for duplex condensate pumps in closed tank applications up to 50 psi. The alternator should be mounted at the top or side and is housed in a NEMA 1 enclosure for durability.

• Direct control of small motor loads
• Vertical open tank mounting with 8 3/4 inches float travel
• Robust steel body with NEMA 1 rating ensures durability in harsh environments

Product Highlights

This alternator features DPST contact form, allowing handling of high voltage and current up to 600V and 600A respectively. It operates effectively within a temperature range of -22 to 220 degrees Fahrenheit. Its design includes a 45-degree float rod angle to ensure reliable operation.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9038DG8

Technical Specifications

• Mounting: Vertical Open Tank
• Float Position: Below
• Conduit Size: 1/2 inch to 3/4 inch
• Contact Form: DPST
• Max. Current: 600A
• Max. Voltage: 600V
• Tank Connection Size: 5-1/8 inches
• Operating Temperature Range: -22 to 220 degrees Fahrenheit
