Schneider Electric (Square D) 9038CW32 Alternator Lqd Lvl Swch, 2-1/2 MNPT

Product Description

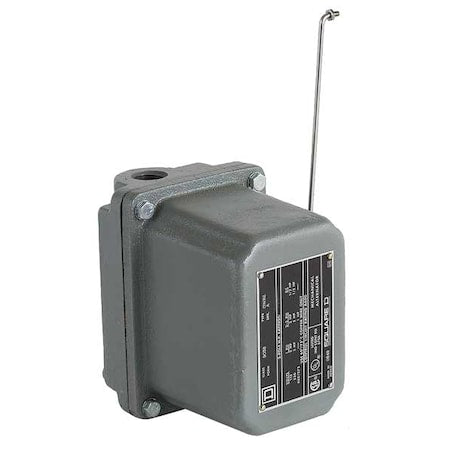

The Schneider Electric (Square D) 9038CW32 is an alternator tank liquid level switch designed for effective level monitoring in tanks. This product ensures reliable operation in various applications.

• NEMA rating of 4 for outdoor use.
• Float position on the left with adjustable travel.
• Stainless steel construction for durability.

Product Highlights

This liquid level switch features a switch function that closes on rise, making it suitable for controlling fluid levels in closed tanks.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Part Number: 9038CW32

Technical Specifications

• Overall Length: 17.81 inches
• Float Length: 7.0 inches
• Height: 5.94 inches
• Width: 6.84 inches
• Tank Connection Size: 2-1/2 inches MNPT
• Max. Pressure: 50 psi
• Operating Temp. Range: -22 to 200 degrees F
• Float Dia.: 2.5 inches
