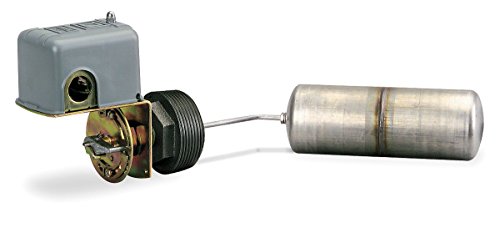

Schneider Electric 9038CG34 Alternator Tank Liquid Level Switch Stainless Steel MNPT

Product Description

The Schneider Electric 9038CG34 Alternator Tank Liquid Level Switch is engineered for precise monitoring and control of liquid levels in tanks. This switch is ideal for applications requiring reliable operation in tough conditions.

• Direct control of small motor loads.
• Single-lever operation with external pointer for easy status checking.
• Robust stainless steel construction for extended durability.

Product Highlights

Designed to perform in environments ranging from -22 to 220 degrees Fahrenheit, this switch features a side mounting design and DPST contact form. Its robust construction and reliability make it suitable for a wide range of industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9038CG34

Technical Specifications

• Functionality: Closes on rise to signal tank is at desired capacity.
• Mounting: Side
• Float Position: Left with 90 degrees rod angle
• Float Travel: 6 and one half inches
• Tank Connection Size: Two and one half inches MNPT
• NEMA Rating: 1
• Max Pressure: 50 psi
• Material: Stainless steel body and stem
• Dimensions: Height: 5.94 inches, Width: 6.84 inches
• Electrical Specs: Max Current: 600A, Max Voltage: 600V
