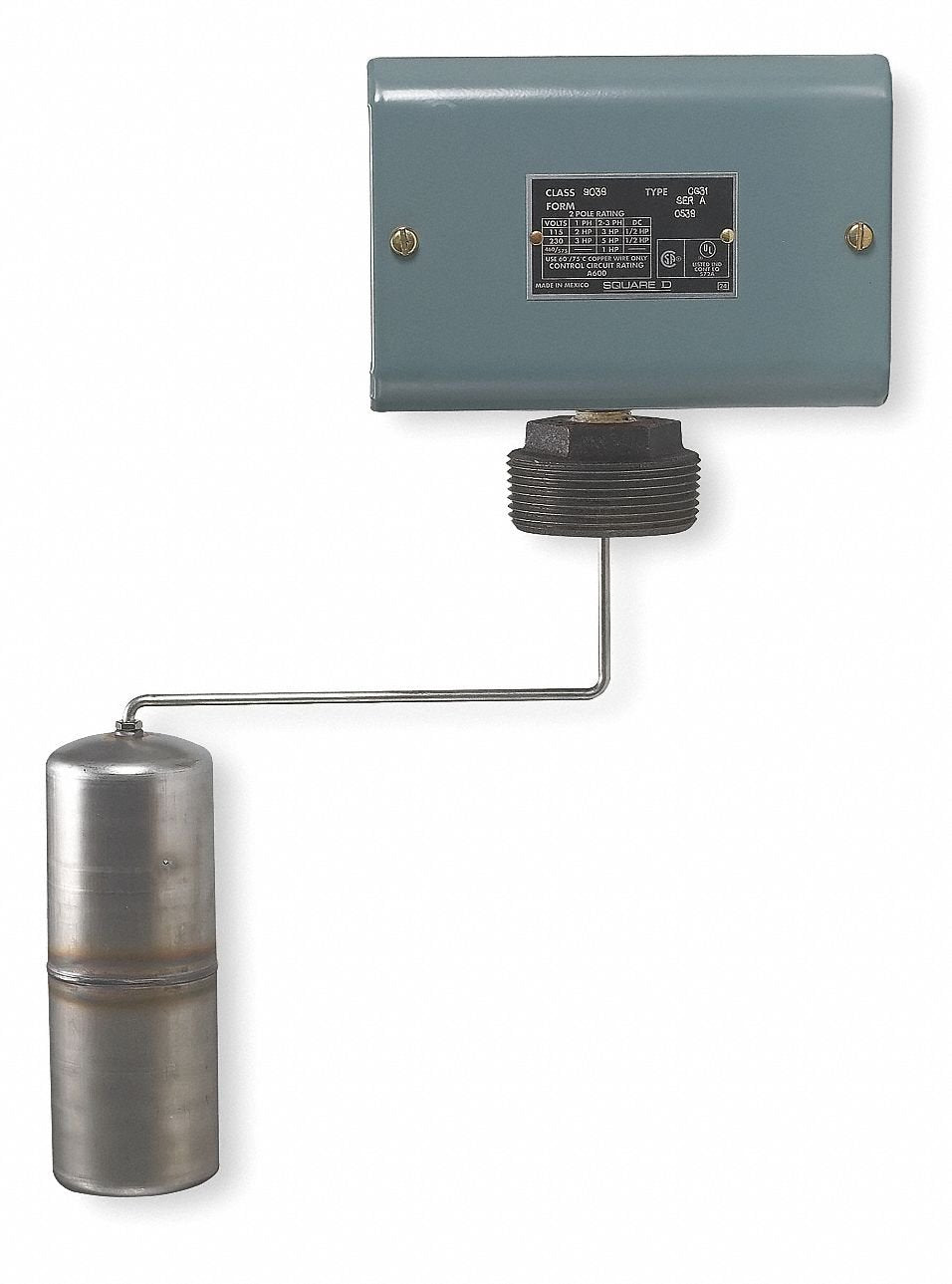

Schneider Electric 9038CG32 Alternator Tank Liquid Level Switch Close On Rise Stainless Steel 2-1/2 inch MNPT

Product Description

The Schneider Electric 9038CG32 is a robust alternator tank liquid level switch, ideal for regulating motor loads in dynamic environments. Crafted from durable stainless steel, this switch ensures reliability and strength in various settings, including HVAC and industrial applications.

• Direct motor load control through a single lever operation.
• DPST contact form and NEMA 1 rating for enhanced safety and performance.
• Compatible with a temperature range from -22 to 220 degrees Fahrenheit.

Product Highlights

This liquid level switch provides accurate level detection and is equipped to handle maximum pressures up to 50 psi while supporting significant voltage and current levels. Its mechanical float mechanism is designed for precise and long-term performance.

Technical Specifications

• Brand: Schneider Electric
• Switch Type: DPST, Close On Rise
• Material: Stainless Steel Body and Stem
• Operating Temperature Range: -22 to 220 degrees Fahrenheit
• Maximum Current: 600A
• Maximum Voltage: 600V
• Float Dimensions: 7.00 inches length, 2.50 inches diameter
• Stem Length: 4.00 inches
• Overall Dimensions: 13.84 inches length, 10.16 inches width, 7.22 inches height
• Connection Size: 2-1/2 inches MNPT
• Standards: UL, CSA approved
• Includes: Rod and Float assembly
