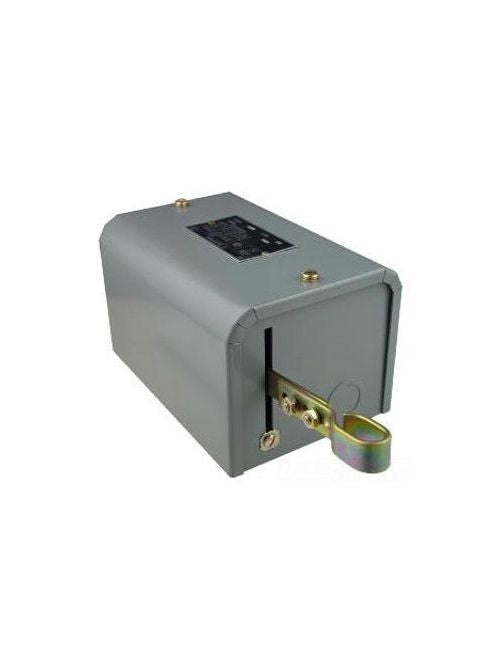

Schneider Electric 9038AG1S1 Square D 575 VAC 5 Hp 2-Pole 4NO Painted Cold Rolled Steel NEMA 1 Float Switch

Product Description

The Square D 9038AG1S1 from Schneider Electric is a float switch designed to function at 575 VAC at five horsepower. This switch has a two-pole configuration and provides reliable level control for various applications, including the operation of two pumps or motors in a duplex system. Its indoor enclosure offers protection in standard environments.

• Voltage Rating: 575 VAC
• Contact Form: Double Pole, Single Throw (DPST)
• Includes mechanical alternator with a swivel operating lever

Product Highlights

This float switch is suitable for applications with water tanks, reservoirs, and sumps. Its robust design supports reliable operations in HVAC and industrial environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9038AG1S1

Technical Specifications

• Voltage: 575 VAC
• Enclosure: Standard environment indoor
• Max Current: 600 A
• HP @ 1 Phase - 120V: 2 HP
• HP @ 1 Phase - 240V: 3 HP
• HP @ 3 Phase - 240V: 5 HP
• Float Travel: 1.25 inches
• Overall Length: 10.32 inches
• Float Material: Stainless Steel
• Body Material: Steel
• Operating Temperature Range: -22 to 220 degrees Fahrenheit
• NEMA Rating: 1
• Electrical Connections: Screw clamp terminals
