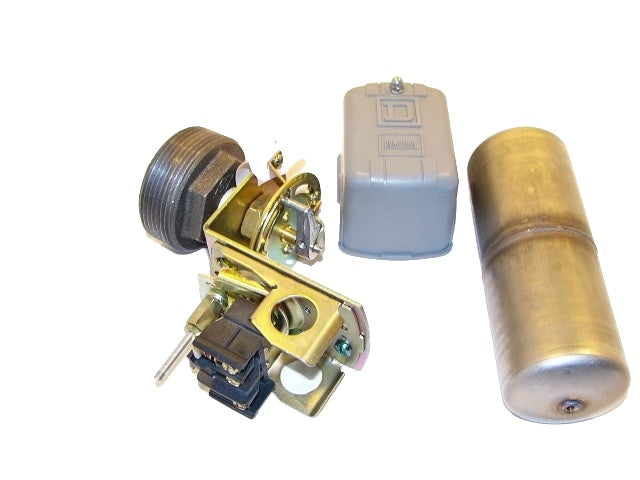

Schneider Electric 9037HG35 Closed-Tank Float Switch Side Mount Nema 1

Product Description

The Schneider Electric 9037HG35 is a closed-tank float switch designed for reliable monitoring and management of liquid levels in tanks. Engineered for durability and performance, this switch provides solutions for a variety of industrial applications.

• Sturdy stainless steel float and stem ensure longevity and corrosion resistance.
• DPST contact form with a close-on-rise function to maintain optimal operation even under extreme conditions.
• Easy to mount with a side positioning and right float configuration for versatile installation options.

Product Highlights

This Float Switch by Schneider Electric features a Nema 1 enclosure which offers protection for indoor use and dry environments. Its robust design makes it suitable for harsh industrial settings including chemical processing and water treatment facilities.

Product Information

Technical Specifications

• Max Pressure: 50 psi
• Operating Temperature Range: -22 to 220 Degrees F
• Voltage Capability: 120 to 240 VAC
• Float and Stem Material: Stainless Steel
• Contact Configuration: Normally Closed (NC)
• Float Rod Angle: 90 Degrees
• Tank Connection Size: 2-1/2 in MNPT
