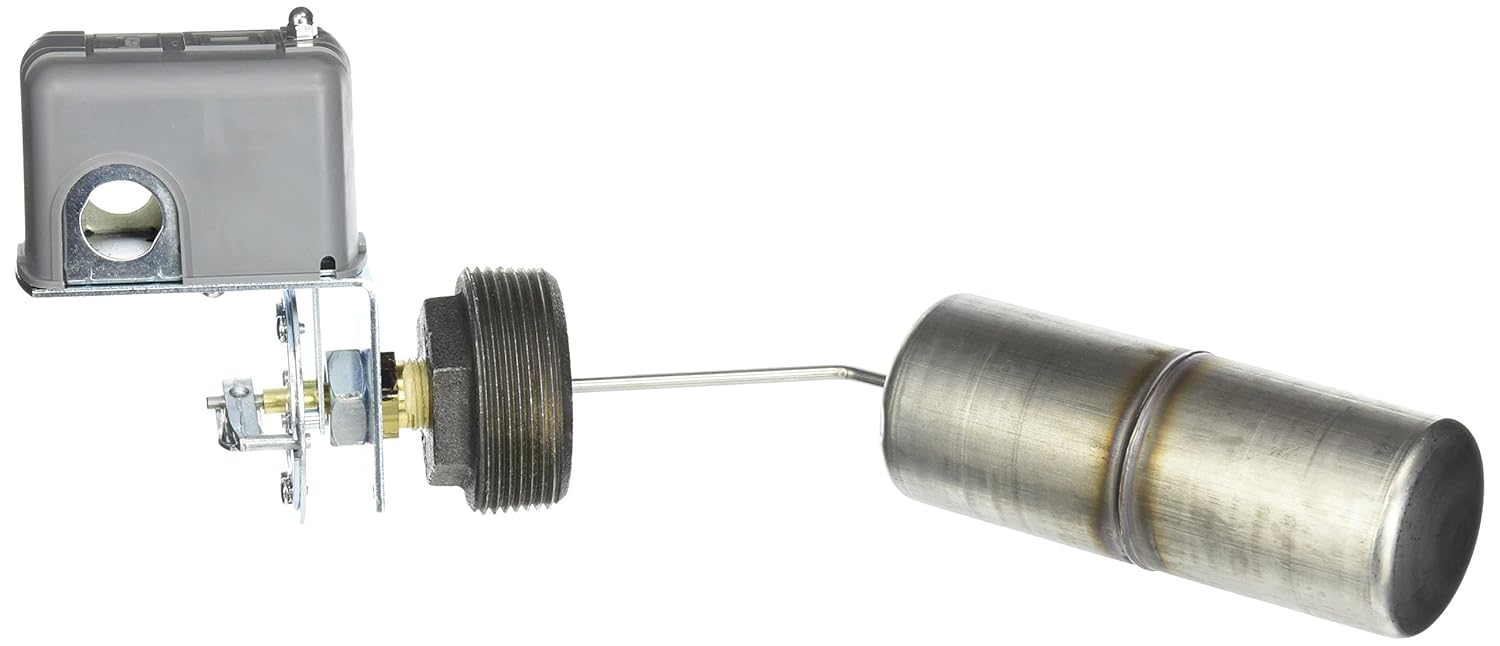

Schneider Electric 9037HG33R Square D Tank Liquid Level Switch Open On Rise 2-1/2 MNPT

Product Description

The Schneider Electric 9037 Closed-Tank Float Switch is a reliable solution for liquid level sensing needs. This device features an open-on-rise switch function and is designed for side mounting. The float switch operates with a contact form of DPST and works seamlessly within a system that has a maximum pressure of fifty psi.

• Float material: Stainless Steel
• Operating temperature range: -22 degrees to 220 degrees Fahrenheit
• Includes reverse action rod and float

Product Highlights

Use this float switch in various applications requiring reliable liquid level control such as water tanks or industrial processes.

Product Information

Standard Information

• Manufacturer: Schneider Electric (Square D)
• MPN: 9037HG33R

Technical Specifications

• Switch Function: Open On Rise
• Float Position: Right
• Float Rod Angle: 45 Degrees
• Float Travel: 3 inches
• Tank Connection Size: 2-1/2 inches MNPT
• NEMA Rating: 1
• Max Voltage: 600 V
• Max Current: 600 A
• Electrical Connections: Screw Clamp
• Overall Length: 16.06 inches
• Body Material: Steel
• Stem Material: Stainless Steel
