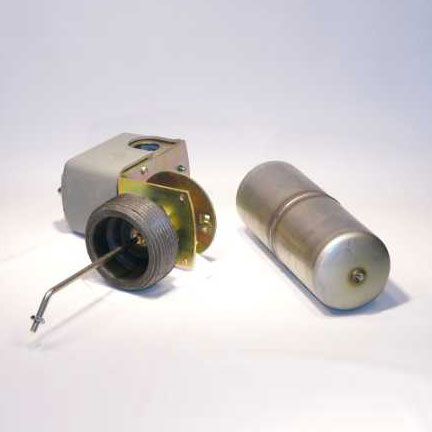

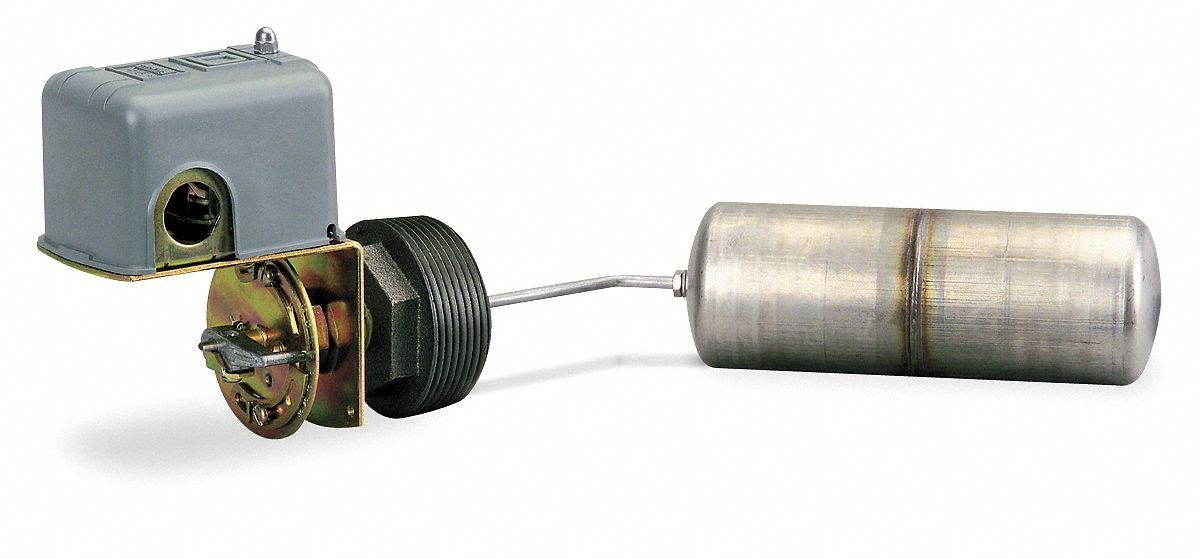

SCHNEIDER ELECTRIC 9037HG33 Float Switch Stainless Steel 2-1/2 Inch MNPT

Product Description

The Schneider Electric model 9037HG33 is a robust float switch designed for reliable liquid level detection in tanks. Engineered with stainless steel and complying with NEMA standards, this device ensures a durable performance in a variety of industrial settings.

• Close on rise functionality to maintain optimal operational levels
• Stainless steel construction offers superior resistance against corrosion
• Equipped with a 2-1/2 inch MNPT connection for a secure installation

Product Highlights

This float switch operates with a DPST contact form and can handle up to 50 psi of pressure, making it suitable for a range of medium to high-pressure environments. Its side mounting and screw clamp electrical connections facilitate straightforward setup.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9037HG33

Technical Specifications

• Float Material: Stainless Steel
• Max. Current: 600A
• Max. Voltage: 600V
• Operating Temperature Range: -22 to 220 Degrees Fahrenheit
• Float Travel: 3 inches
• Overall Length: 16.06 inches
• Height: 4.44 inches
• Width: 3.86 inches
