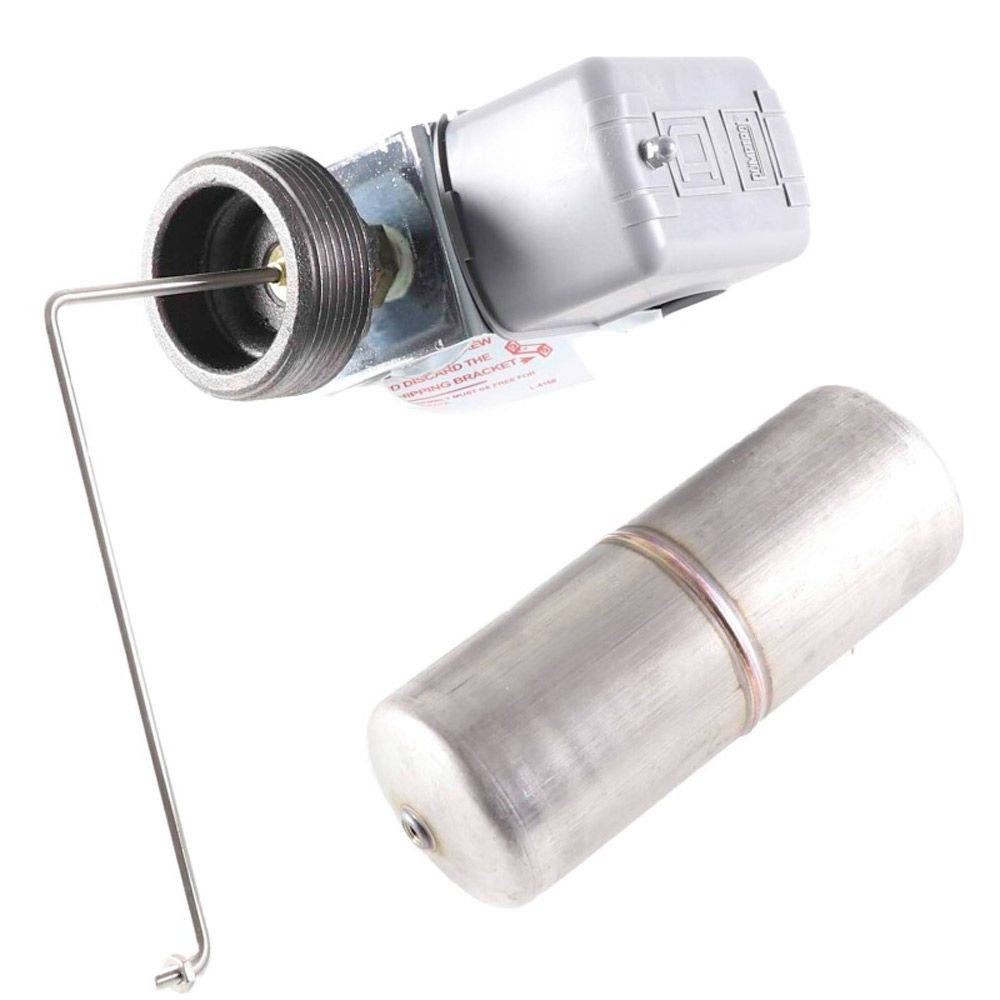

Schneider Electric 9037HG32 Closed-Tank Float Switch With Bushing For Power Circuit

Product Description

The Schneider Electric 9037HG32 is a robust closed-tank float switch designed for effective liquid level detection in a variety of industrial contexts. Its sturdy construction ensures reliability in multiple environments.

• Float rod angle set at 90 degrees.
• Equipped with a 7 inch offset.
• NEMA 1 enclosure rating for indoor use.

Product Highlights

This versatile float switch is ideally suited for applications such as sump pumps and sewage systems. Its operation is based on a close-on-rise action, meaning the contacts close as the liquid level rises. It is crafted to offer precise level sensing and control, enhancing system efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 9037HG32

Technical Specifications

• Item Number: 9037HG32
• Connection Size: 2 and a half inches MNPT
• Max Voltage: 600 volts
• Max Current: 600 amps
• Contact Form: DPST
• Float Dimensions: Diameter 2.58 inches, Length 7.13 inches
• Stem Length: 5.07 inches
