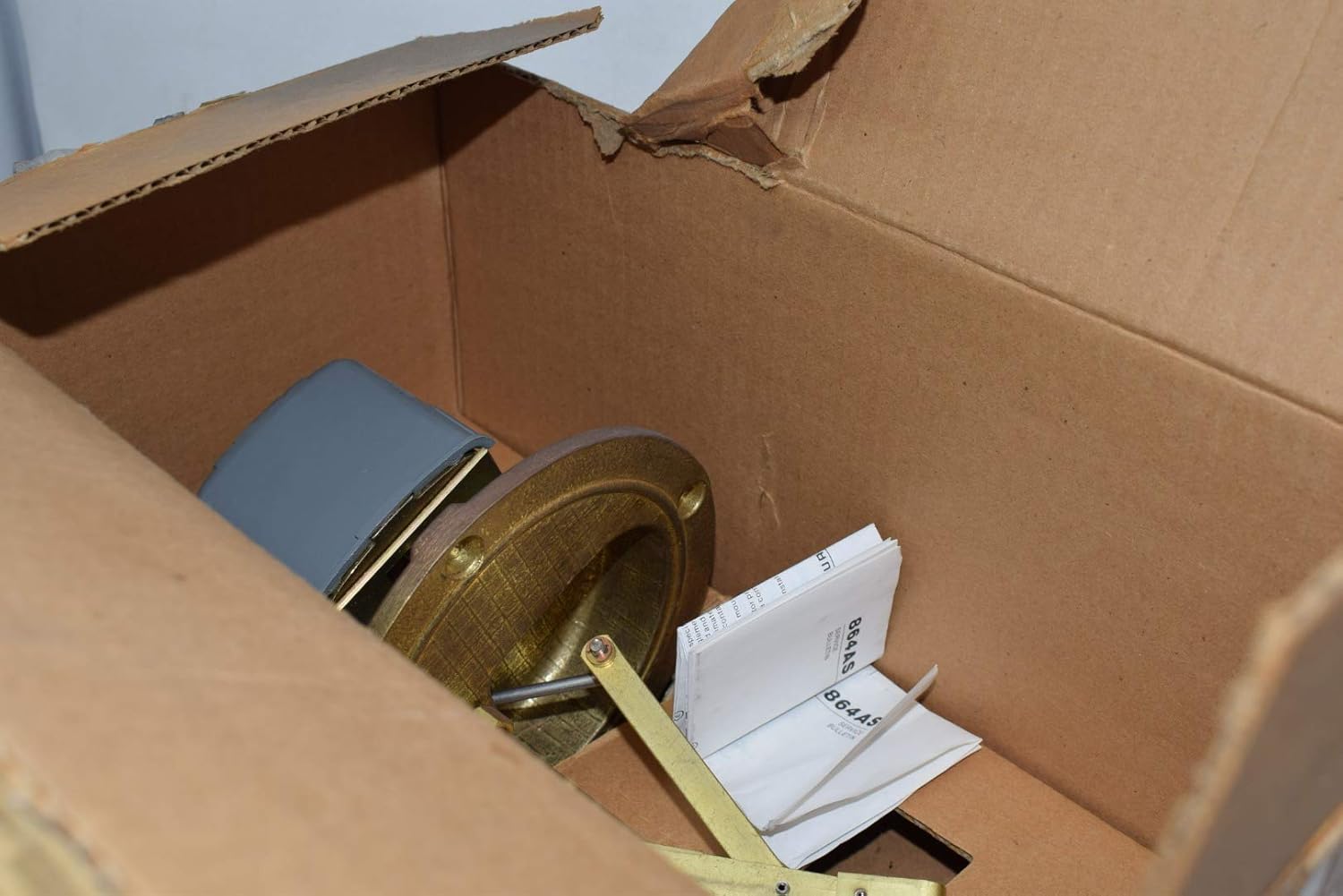

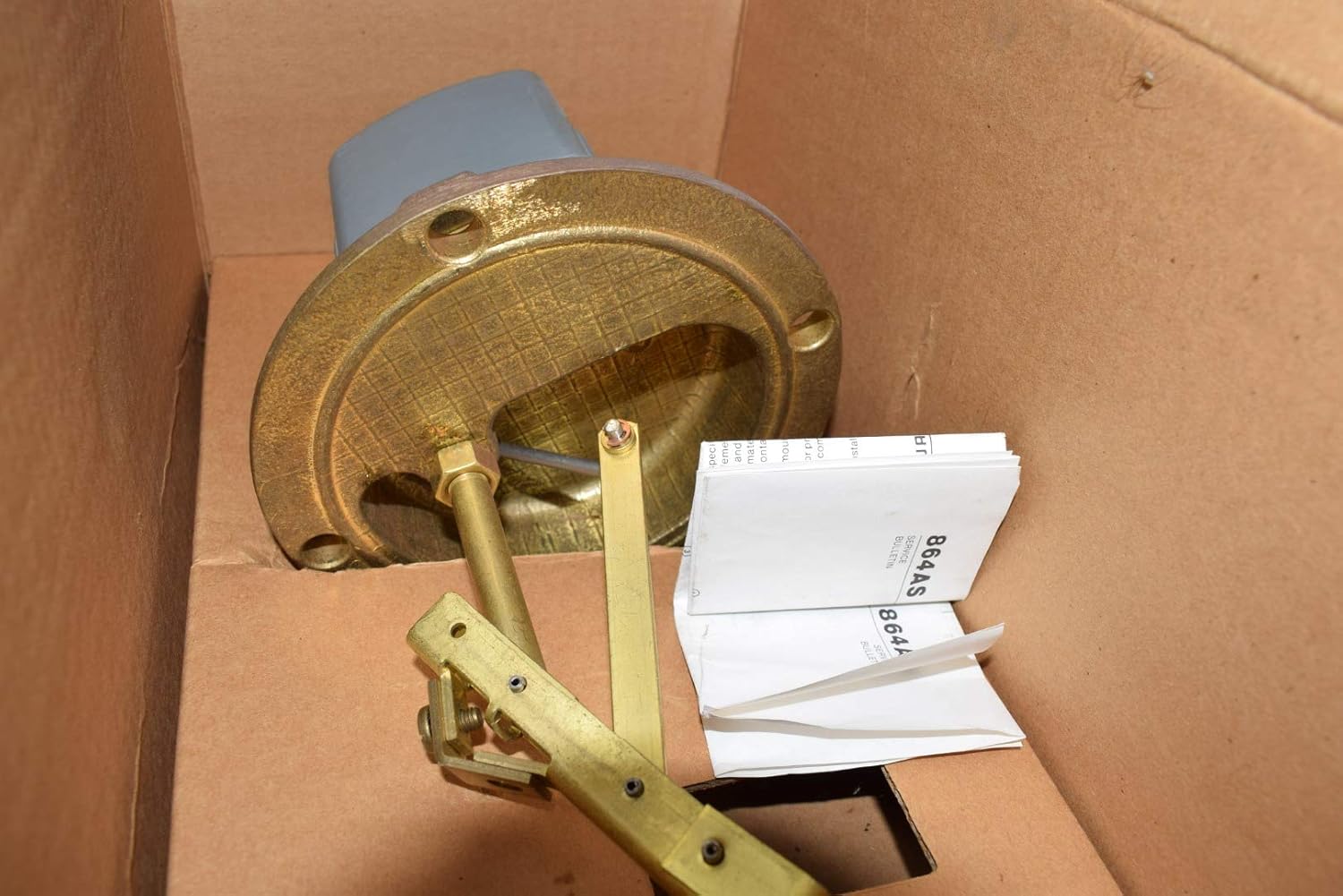

Schneider Electric 9037EG9 Float Switch 575 VAC 1 Horsepower

Product Description

The Schneider Electric 9037EG9 Float Switch is engineered for precise liquid level control in a range of industrial applications. This float switch facilitates the direct control of small motor loads and is suitable for both commercial and industrial environments.

• Robust steel and brass construction enhances durability.
• Features a double-pole, single-throw (DPST) contact form with a maximum current of 600 amps.
• Operates efficiently within a temperature range of -22 to 220 degrees Fahrenheit.

Product Highlights

Designed for closed tank mounting, this switch ensures reliable operation with a float travel of 2.06 inches and a tank connection size of 5.125 inches. It is NEMA 1 rated, indicating a degree of protection against solid foreign objects.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9037EG9

Technical Specifications

• Switch Function: Close on Rise
• Mounting: Vertical Open Tank
• Conduit Size: 0.5 Inches
• Contact Form: DPST
• Body Material: Steel and Brass
• Float Position: Below
• Float Rod Angle: 90 Degrees
