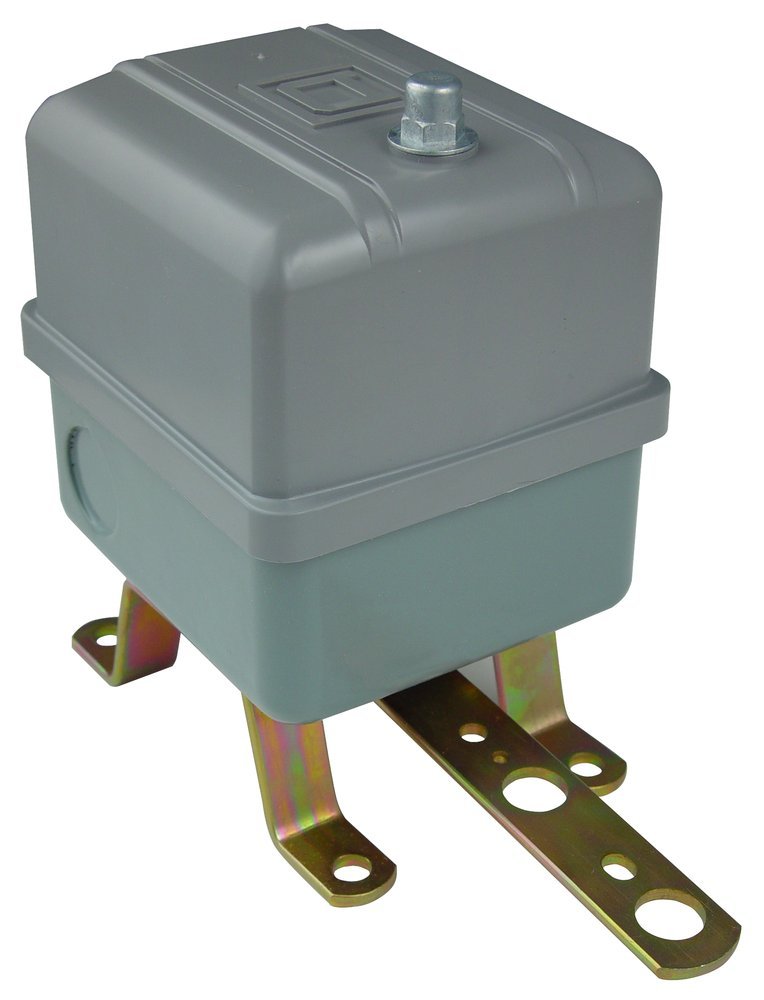

Schneider Electric 9036GG2 Heavy-Duty Open Tank Float Switch, NEMA 1, Contacts Close on Rise

Product Description

The Schneider Electric 9036GG2 is a heavy-duty open tank float switch designed to manage liquid levels effectively. This float switch operates by closing the contacts when the liquid level rises. Suitable for NEMA 1 environments, it is built to endure various conditions while maintaining reliable performance.

• Contact configuration: DPST (Double Pole Single Throw)
• Operating voltage: 120 - 600 VAC, 125/250 VDC
• Mounting type: Vertical Mount

Product Highlights

Ideal for open tank or sump applications, this switch allows for effective monitoring of liquid levels with a reliable close-on-rise functionality.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Part Number: 9036GG2

Technical Specifications

• Power Rating: 5 hp at 230 V, 3 Phase
• Operating Temperature Range: -22 to 220 degrees Fahrenheit
• Dimensions: 7.1 inches long, 3.43 inches wide, 5.56 inches high
• Body Material: Steel
• Float Material: Stainless Steel
• Contact Rating: 10 A
• NEMA Rating: 1
