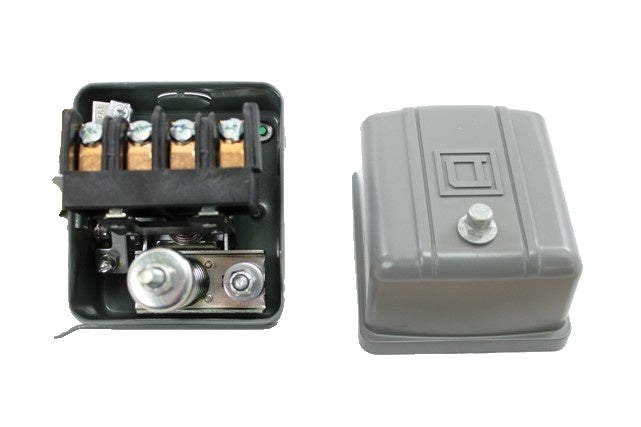

Schneider Electric 9013GHG2S6J30X Pressure Switch 480-VAC 10-Amp

Product Description

The Schneider Electric 9013GHG2S6J30X Pressure Switch efficiently regulates air compressor and water pump systems, offering robust performance for a wide range of industrial applications. This pressure switch supports a voltage up to 480 VAC and manages currents up to 10 amps, making it an essential tool for maintaining pressure stability.

• Rated for pressures between 40 to 200 psi
• Equipped with a 1/4 inch FNPS port and DPST switch action
• Customizable on/off settings at 80/100 psi

Product Highlights

This model features a standard single-phase action, handling 2 horsepower at 120V and 3 horsepower at 240V. Its robust design is encapsulated in a NEMA 1 rated enclosure ensuring durability and safety in operations.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 9013GHG2S6J30X

Technical Specifications

• Voltage: 575V AC
• Material: Zinc Plated Steel Flange
• Standards: ANSI /NSF Standard 61, CSA Certified
• NEMA Rating: 1
• Temperature Range: -22 to 257 Degrees F
• Max Pressure: 300 psig
• Actuation Type: Diaphragm
• AC Contact Rating: 10A @ 575V
