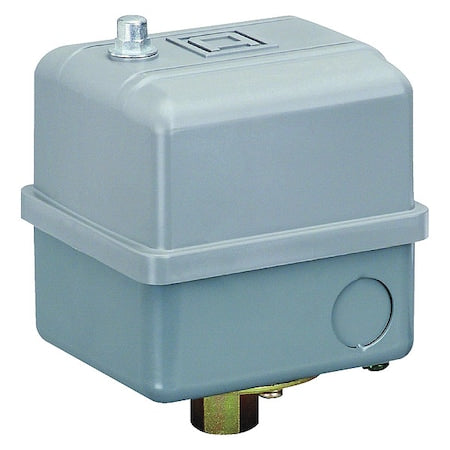

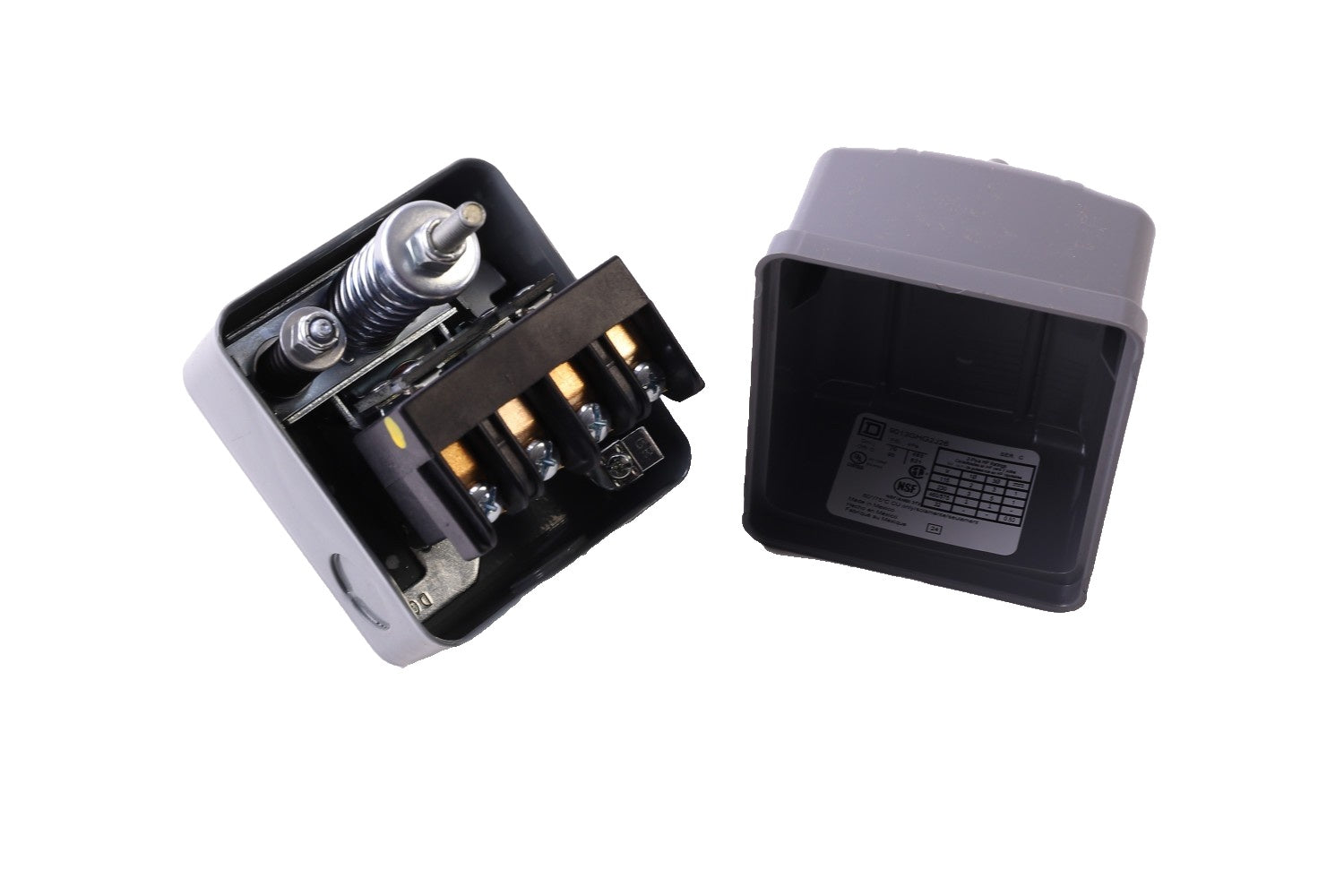

Schneider Electric 9013GHG2J26 Pressure Switch 1/4 inch FNPS 70On/90Off

Product Description

The Schneider Electric model 9013GHG2J26 is a robust pressure switch that provides reliable performance for air compressors and water pumps. This switch, suitable for 1/4-inch FNPS applications, offers a pressure range of 65 to 200 psi with a factory set on/off operation at 70 psi and 90 psi respectively.

• Features a double pole single throw (DPST) contact form.
• Constructed with a polypropylene cover and Noryl thermoplastic resin for durability.
• Includes a diaphragm actuation type, ensuring precise operation and control.

Product Highlights

This pressure switch is designed to operate efficiently under varying environmental conditions, offering an adjustable differential scale and a burst pressure limit of 300 psi. It's well-suited for demanding applications in both HVAC and hydronics settings.

Product Information

Standard Information

• Brand: Schneider Electric.
• Model: 9013GHG2J26.

Technical Specifications

• Power: 575 Vac, 5 Hp.
• Standards: UL 508, CE, NSF ANSI 372.
• IP Rating: IP20 (IEC 60529).
• NEMA Rating: NEMA 1.
• Temperature Range: -33 to 257 degrees Fahrenheit.
• Pressure Range: 65 to 200 psi.
• Country of Origin: Mexico.
