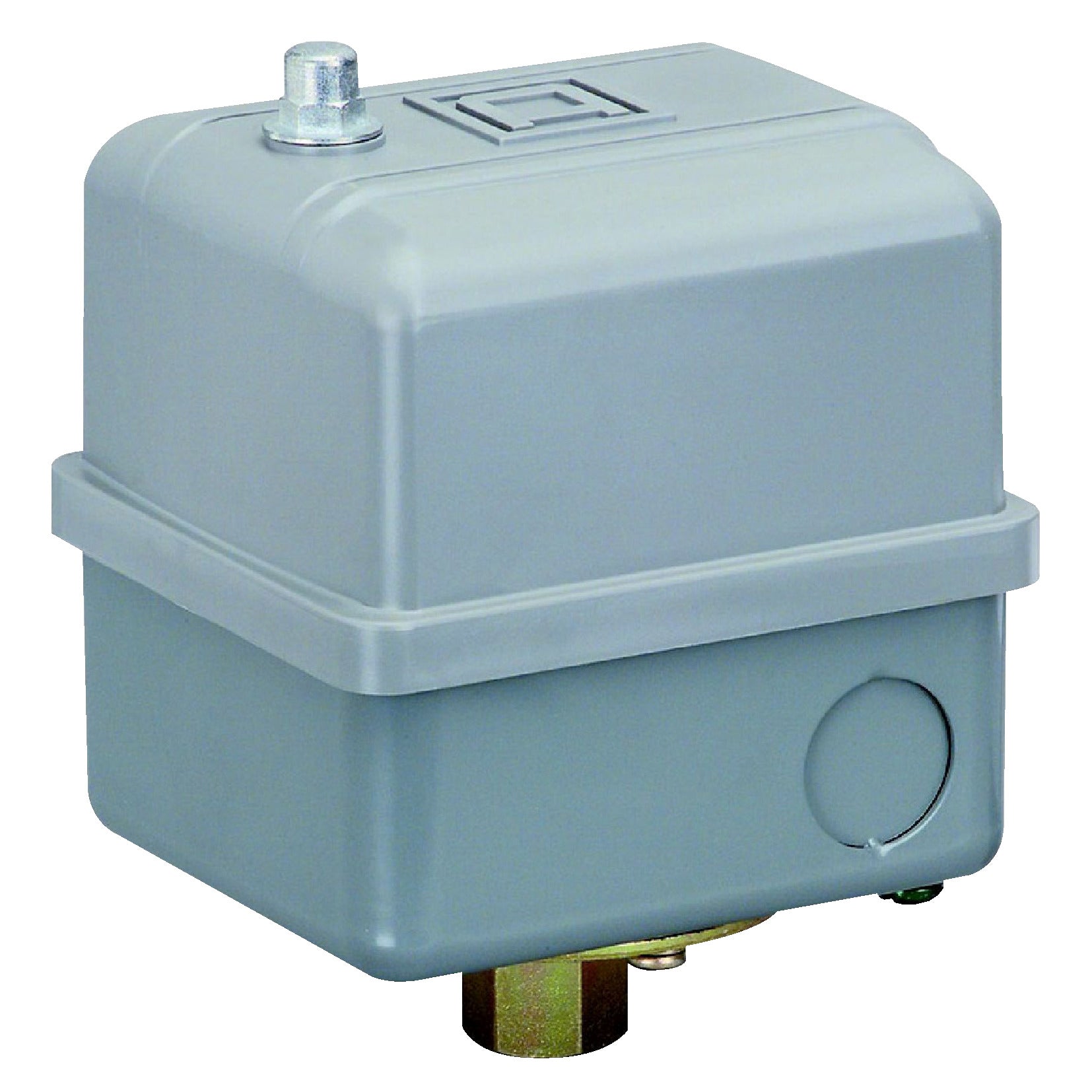

Square D 9013GHG2J20 Pumptrol, Pump or Compressor Switch 20 40 PSI

Product Description

The Square D 9013GHG2J20 is a pumptrol pump or compressor switch designed for controlling electrically driven water pumps and air compressors. This adjustable differential switch operates effectively between twenty to forty PSI. It provides reliable performance in various pressure applications.

• Adjustable differential between twenty to forty PSI
• Electromechanical design for versatile applications
• Two normally closed contacts for safe operation

Product Highlights

This product features a compact design suitable for various HVAC and plumbing applications, enhancing control over pressure in systems.

Product Information

Standard Information

• Catalog Number: 9013GHG2J20
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Sub Brand: 9013GH
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: Mexico
• Application: Control electrically driven water pumps and air compressors
• Contact Configuration: 2 NC, snap action, DPST-DB, Form YY
• Enclosure: NEMA 1 UL 50
• Operating Cycles: 10 CYC/MN
• Process Connection: 0.25 INCH NPSF INTERNAL UL 508
• Operating Temperature: -33 to 257 Degrees F
• System Pressure: 200 PSI (40-170 PSI)
• UPC: 785901715962
• GTIN: 00785901715962
