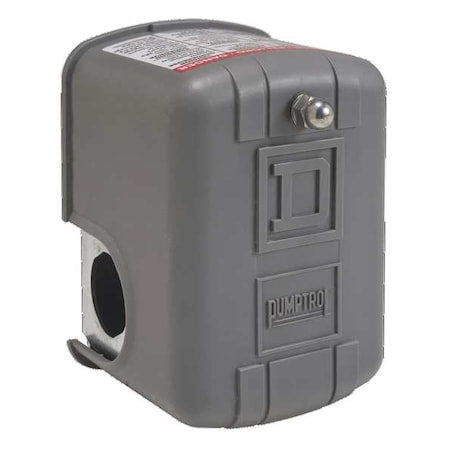

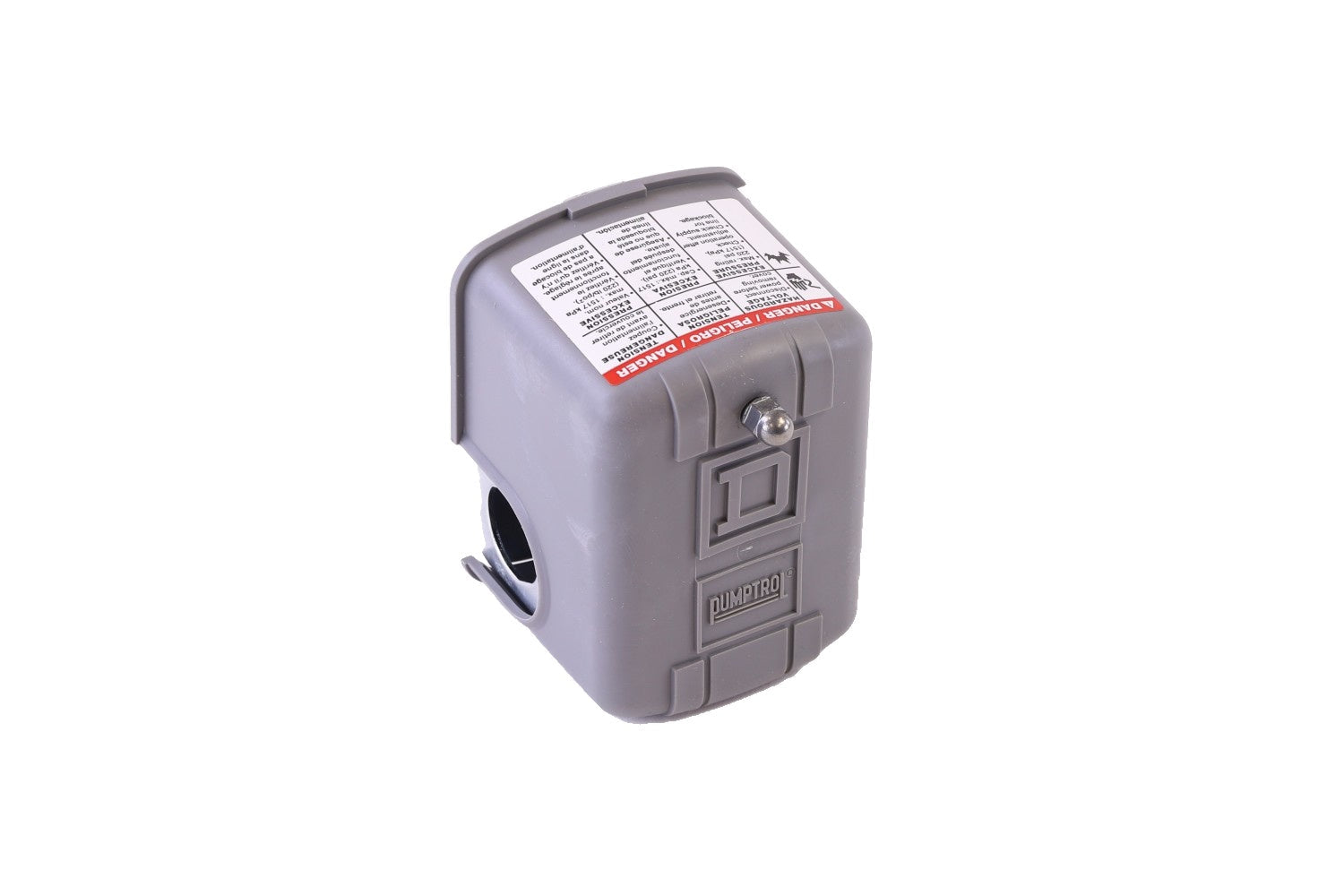

Schneider Electric 9013FYG2J33 Pressure Switch 50-70 PSI Adjustable Differential

Product Description

The Schneider Electric model 9013FYG2J33 Pressure Switch is designed for accuracy and reliability, ensuring optimal performance in HVAC and hydronics applications. This electromechanical pressure switch operates within a range of 5 to 80 psi, featuring an adjustable differential from 20 to 30 psi for precise control.

• Direct control of motors up to 5 horsepower at 240V three-phase.
• Temperature operational range from -22 to 257 degrees Fahrenheit.
• Durable polypropylene and Noryl resin cover for environmental protection.

Product Highlights

This Square D series pressure switch is ideal for water pump applications, featuring a simple screw-clamp terminal for easy electrical connections and a robust design compliant with multiple standards including ANSI/NSF Standard 61 and UL 508.

Product Information

Standard Information

• Brand: Schneider Electric
• Series: 9013FYG

Technical Specifications

• Type: Electromechanical Pressure Switch
• Material: Polypropylene Cover, Noryl Thermoplastic Resin
• IP Rating: IP20 (IEC 60529)
• NEMA Rating: 1
• Temperature Range: -22 to 257 degrees Fahrenheit
• Pressure Switch Range: 5 to 80 psi
• Pressure Switch Factory On/Off Setting: 50/70 psi
• Electrical Contact Form: DPST
