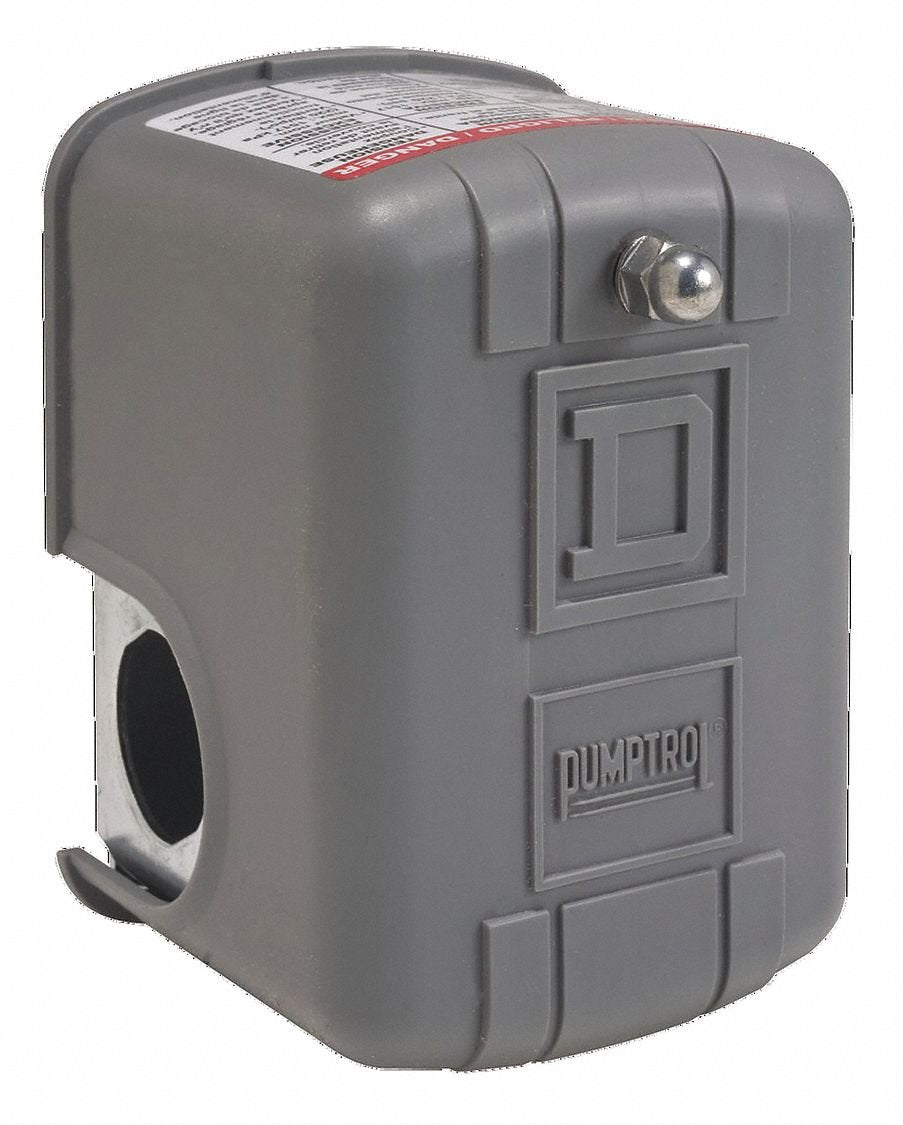

Schneider Electric 9013FYG2J25 Pressure Switch 60 to 80 PSI

Product Description

The Schneider Electric model 9013FYG2J25 is a robust electromechanical pressure switch, ideal for controlling electrically driven water pumps. This switch is crafted using durable noryl thermoplastic resin and features a nitrile diaphragm pressure actuator, ensuring long-term reliability and performance.

• Adjustable pressure settings from 60 to 80 PSI for precise control.
• Equipped with a four-terminal block and screw-clamp terminals for secure electrical connections.
• Compatible with a variety of motor types across different power settings.

Product Highlights

This pressure switch supports multiple applications, including fresh water control systems in both industrial and commercial settings. It's designed to operate efficiently with 3-Phase and 1-Phase motors and includes built-in short-circuit protection.

Product Information

Technical Specifications

• Connection Type: 0.25 inch NPT external fluid connection.
• Electrical Durability: Capable of 100,000 cycles at 10 cycles/minute.
• Operational Temperature Range: -33 to 257 degrees Fahrenheit.
• Safety Ratings: UL listed and CSA certified, conforming to ANSI standards.
