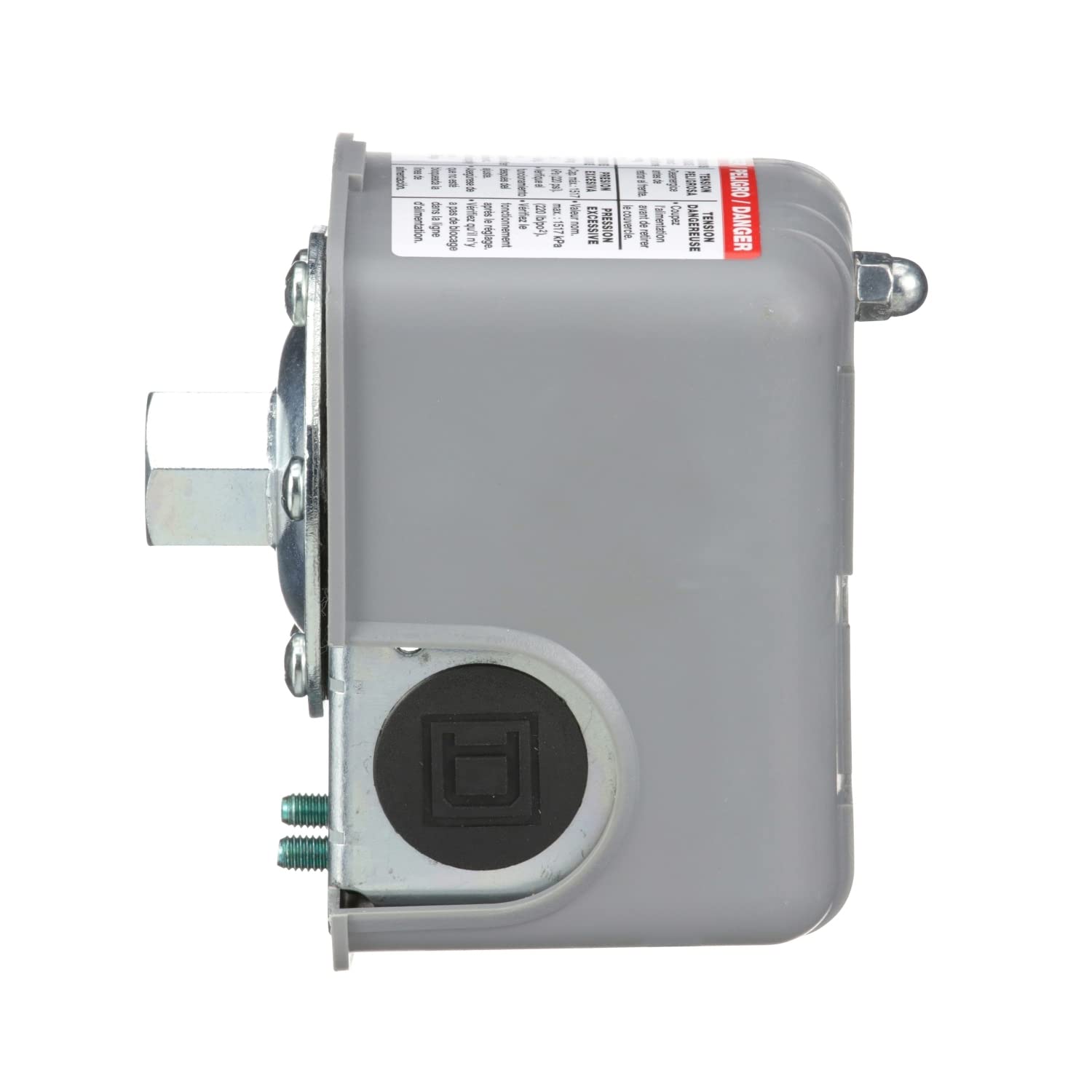

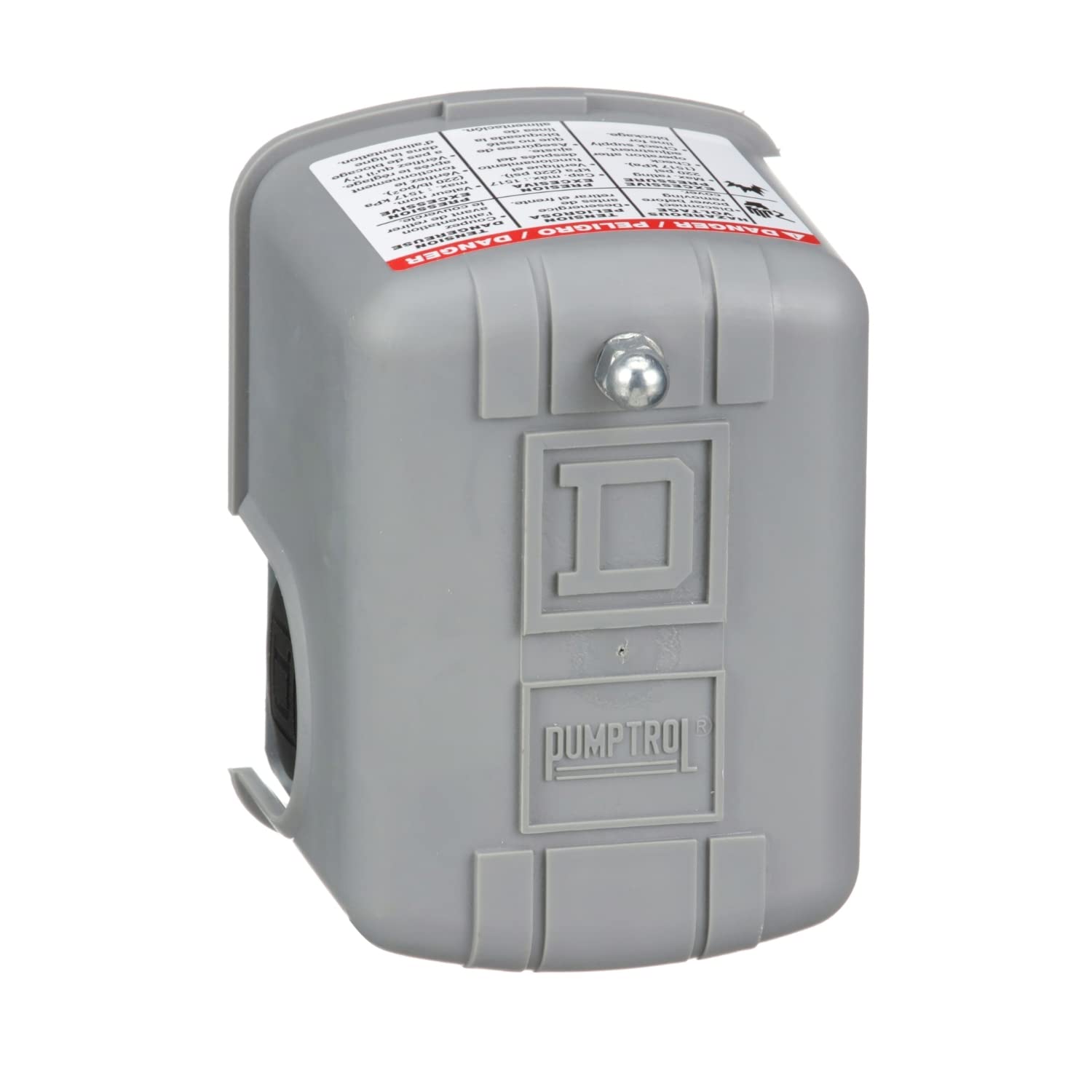

Schneider Electric 9013FSG2J24 Telemecanique Sensors Pressure Switch DPST

Product Description

Schneider Electric presents the 9013FSG2J24 Telemecanique Sensors Pressure Switch. Ideal for controlling electrically driven water pumps, it features a standard differential scale for functional accuracy.

• Robust polypropylene build ensures long-term reliability.
• Adjustable differential pressure settings from five to sixty-five psi.
• Designed to operate within temperatures of -33 to 257 degrees Fahrenheit.

Product Highlights

This pressure switch is engineered for ease of use and constant performance.

Product Information

Standard Information

• Applicability: Ideal for water pump applications.
• Electrical Ratings: Suitable for circuits up to 575 volts at ten amps.

Technical Specifications

• Pressure Rating: 40 - 60 psi, with a max sensor pressure of 65 psi.

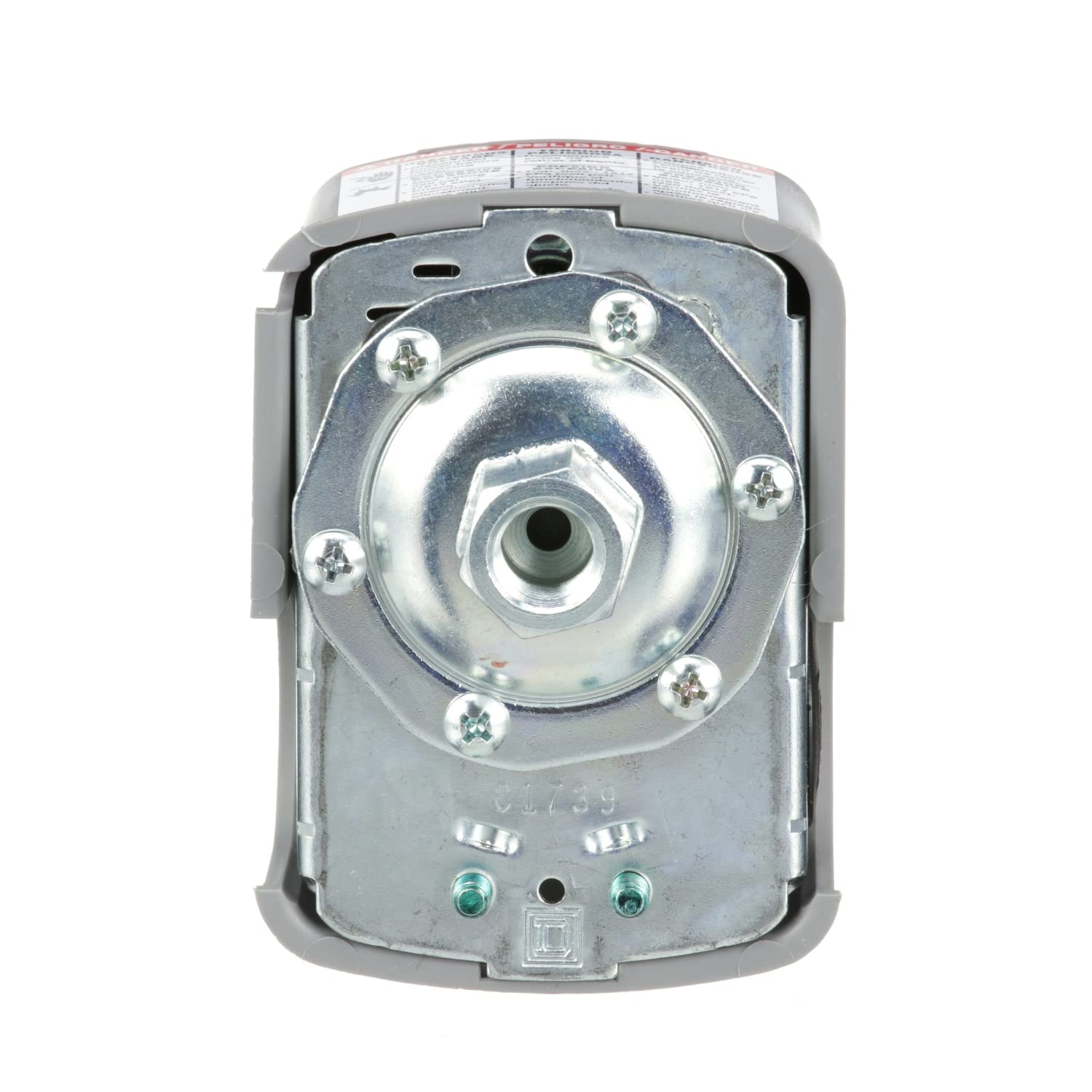

• Port Type: Single port, 1/4 inch FNPS.
• Material: Polypropylene cover, Noryl thermoplastic resin.
• Temperature Range: Operable between -33 to 257 degrees Fahrenheit.
• Dimensions: 2.78 inches wide x 2.8 inches high x 3.76 inches deep.
• Certifications: ANSI/NSF 61, CSA, UL 508, IP20 (IEC 60529).
