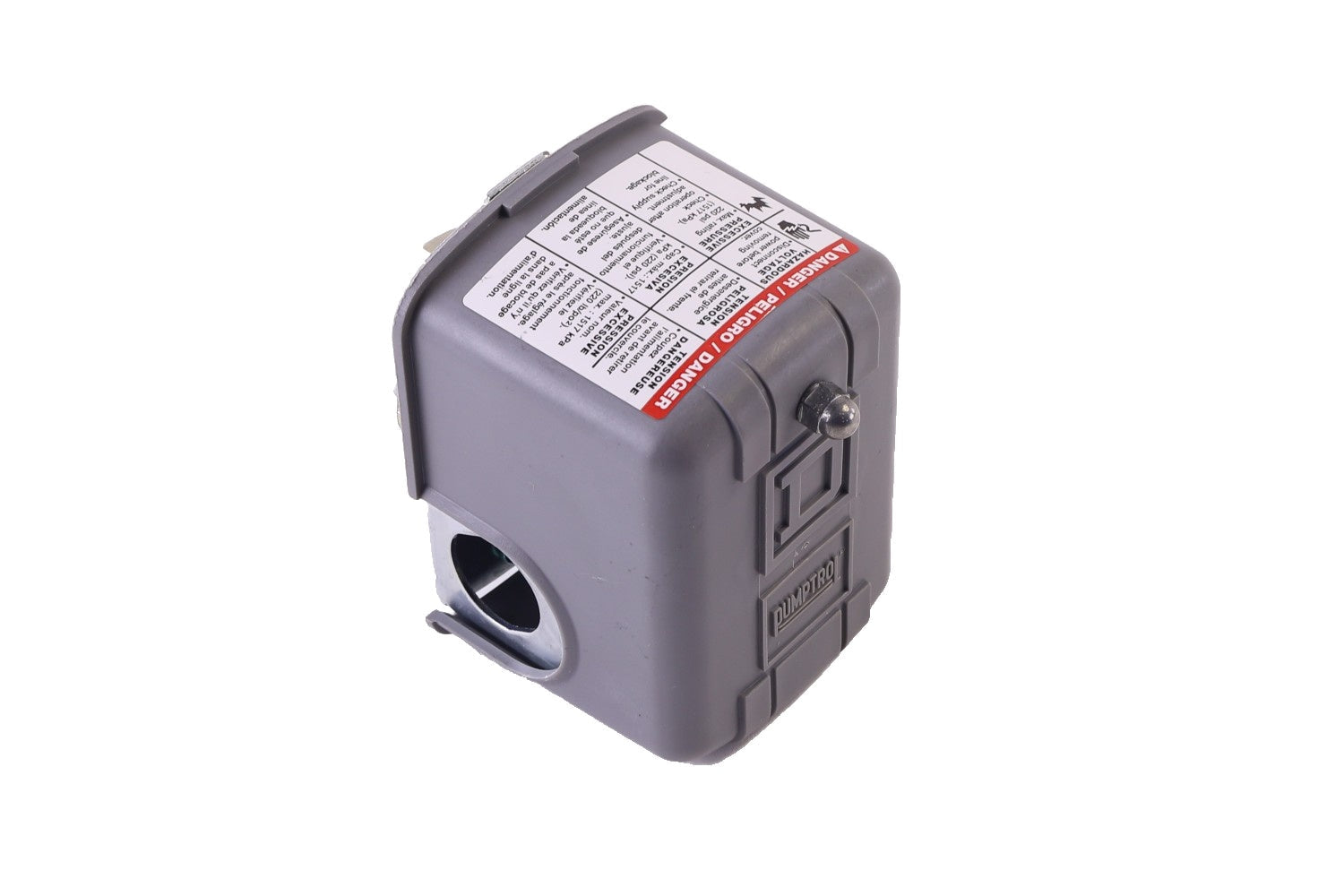

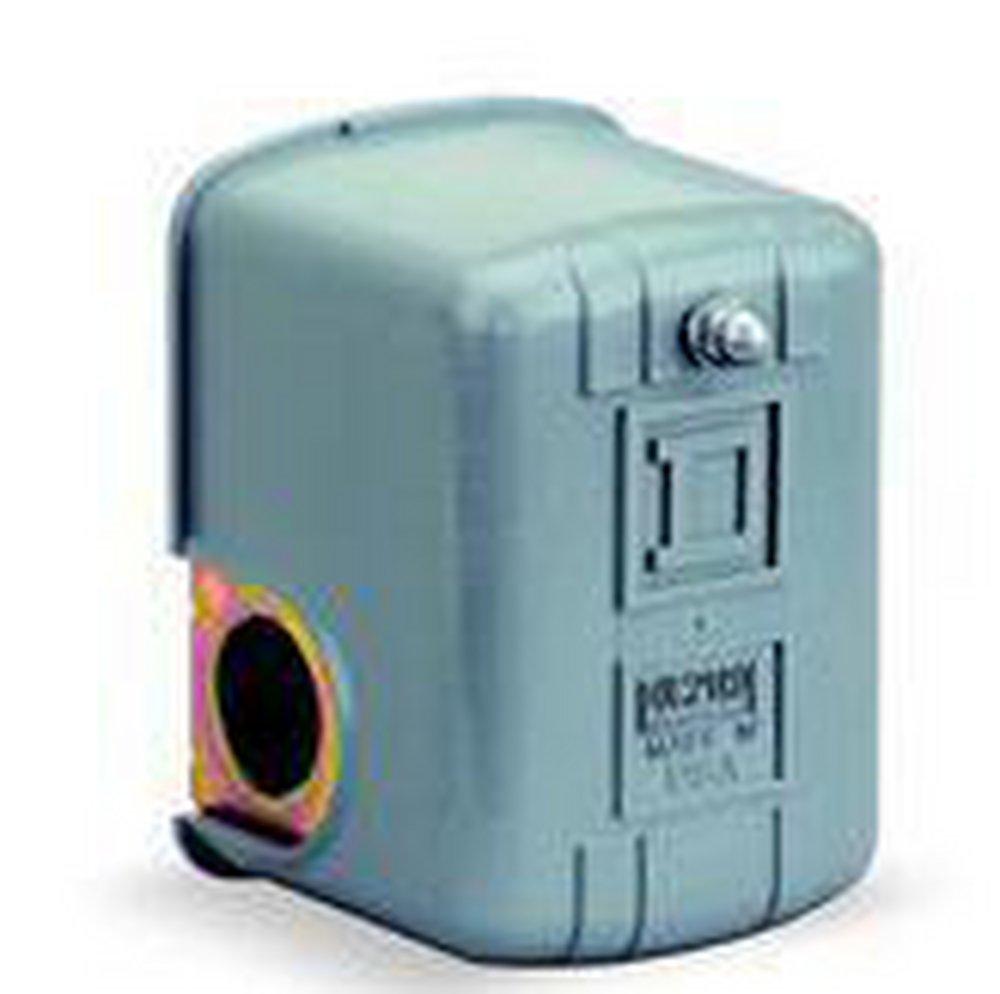

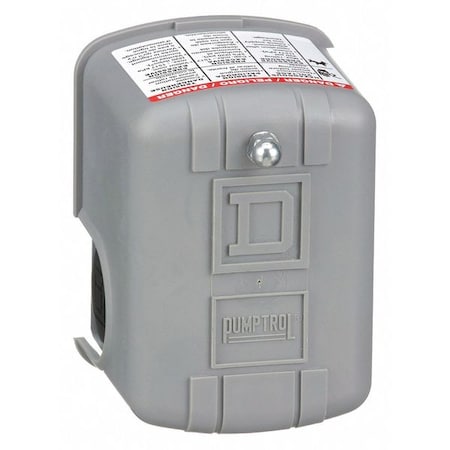

Square D 9013FSG2J20 Water Pump Pressure Switch 20-40 PSI Replacement 9013FSG2J20

Product Description

The Square D 9013FSG2J20 is a robust water pump pressure switch designed to control electrically driven water pumps efficiently. Engineered by Square D, a leader in electrical solutions.

• Easy installation with standard 1/4 in FNPS connection.
• Adjustable pressure settings from 20 to 40 PSI for versatile use.
• Durable construction suitable for demanding applications.

Product Highlights

This pressure switch features a standard action mechanism and a diaphragm actuation type that ensures reliable performance.

Product Information

Standard Information

• Brand: Square D
• MPN: 9013FSG2J20

Technical Specifications

• Pressure Range: 5 to 65 psi
• Factory On/Off Setting: 20/40 psi
• Electrical Contact Form: DPST
• NEMA Rating: 1
• Temperature Range: -22 to 257 Degrees F
• HP Ratings: 1-1/2 HP at 120V, 2 HP at 240V, 3 HP at 240V 3 Phase, 1 HP at 480V 3 Phase
• Differential: 15 to 30 psi
• Product Material: Polypropylene and Noryl thermoplastic resin
