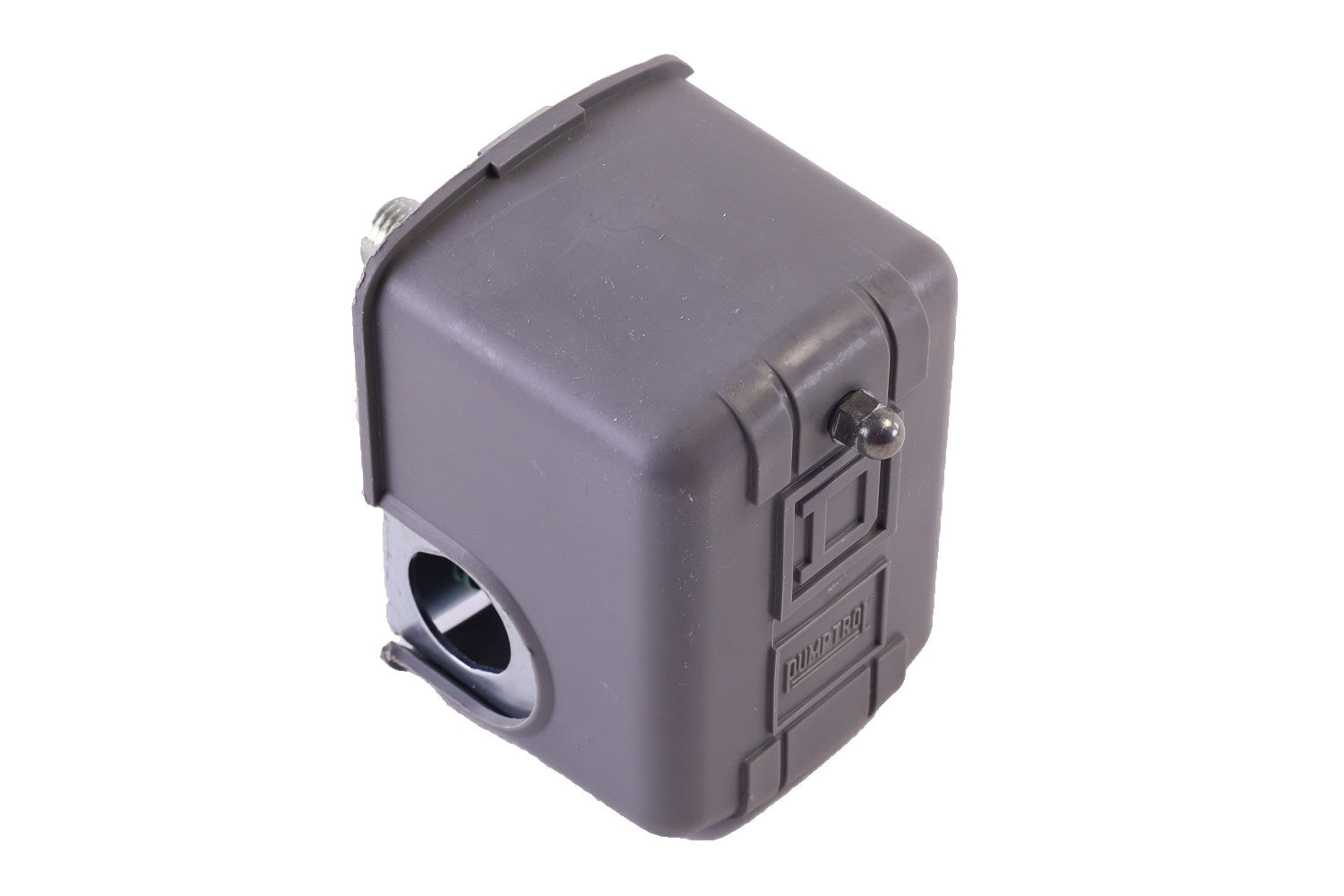

Schneider Electric 9013FHG9J27 Pressure Switch 40 to 100 psi - Standard Action

Product Description

The Schneider Electric 9013FHG9J27 Pressure Switch is engineered to manage air compressors effectively, ensuring reliable performance and enhanced operational safety. It operates within a pressure range of 40 to 100 psi with a fixed differential scale, ideal for demanding industrial settings.

• Robust polypropylene and Noryl thermoplastic resin cover for durability.
• IP20 rating ensures protection against solid objects larger than 12.5 mm.
• Equipped with screw-clamp terminals for secure electrical connections.

Product Highlights

Designed for easy integration into various industrial systems, it also features a one-quarter inch MNPT port and diaphragm actuation type, making it a versatile choice for many applications.

Technical Specifications

• Pressure Range: 40 to 100 psi
• Material: Polypropylene, Noryl Thermoplastic Resin
• IP Rating: IP20
• Electrical Connection: Screw-Clamp Terminals
• Differential: Fixed
• Actuation Type: Diaphragm
• Country of Origin: Mexico
