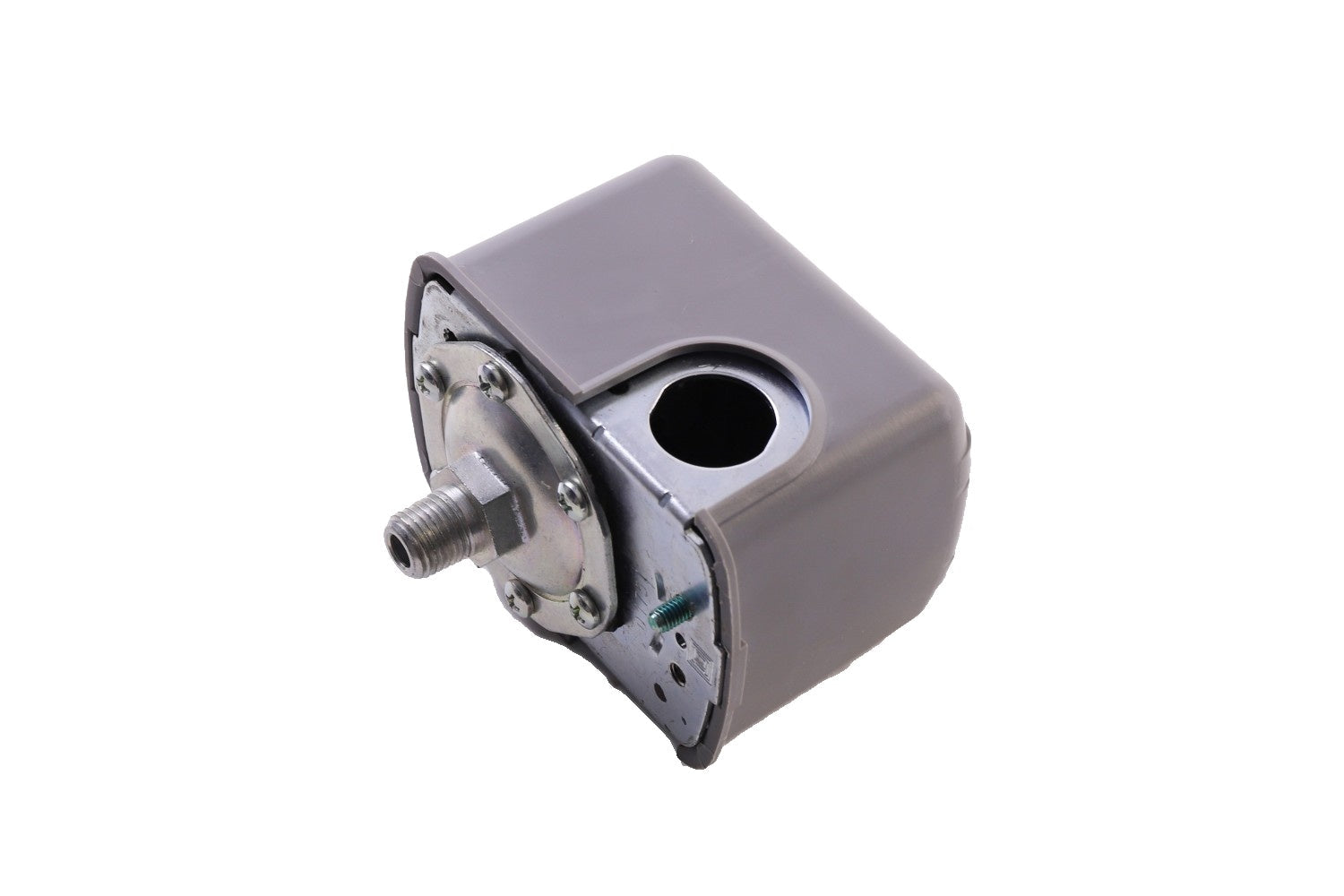

Schneider Electric 9013FHG49J59 Pressure Switch 60 to 200 PSI

Product Description

The Schneider Electric model 9013FHG49J59 is a robust pressure switch designed for managing air compressors. This product stands out for its dual-pole single-throw (DPST) configuration and a wide adjustable pressure range between 60 and 200 psi.

• Features a manual switch action with a default on/off setting of 135/175 psi.
• Incorporates a fixed differential scale of 40 psi for reliable operation.
• Made with high-quality materials, including a polypropylene cover and Noryl thermoplastic resin.

Product Highlights

This pressure switch is primarily used in highly demanding industrial environments where precision and durability are key. It's compatible with single and three-phase motors, enhancing its versatility across different electrical applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FHG49J59

Technical Specifications

• Voltage Ratings: 120/240 volts (single phase), 480 volts (three phase)
• Horsepower Ratings: 1 1/2 HP at 120 volts, 2 HP at 240 volts, 3 HP at 240 volts, 1 HP at 480 volts
• Temperature Range: -22 to 257 degrees Fahrenheit
• IP Rating: IP20
• NEMA Rating: 1
• Pressure Range: 60 to 200 psi
• Electrical Contact Form: DPST
• Standards: Complies with ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
