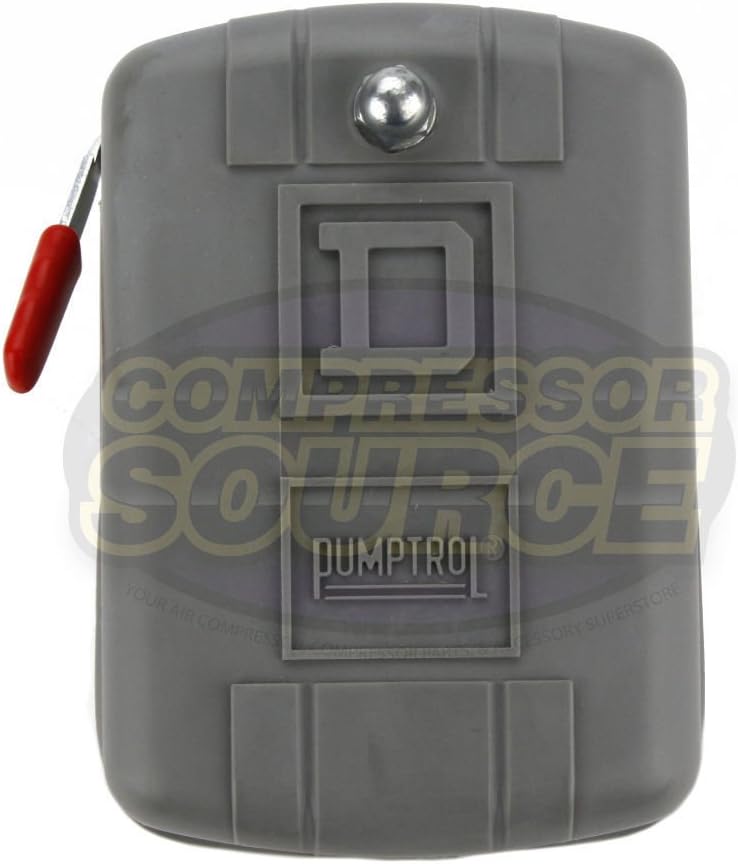

Square D 9013FHG42J59M1X Air-Compressor Switch 110 Volts

Product Description

Experience reliable control with the Square D 9013FHG42J59M1X Air-Compressor Pressure Switch. Designed specifically for two-stage air compressors, this switch is engineered by Square D, a trusted name in electrical systems, to ensure efficient operation up to 175 PSI.

• Direct control from 100 to 200 PSI with adjustable settings

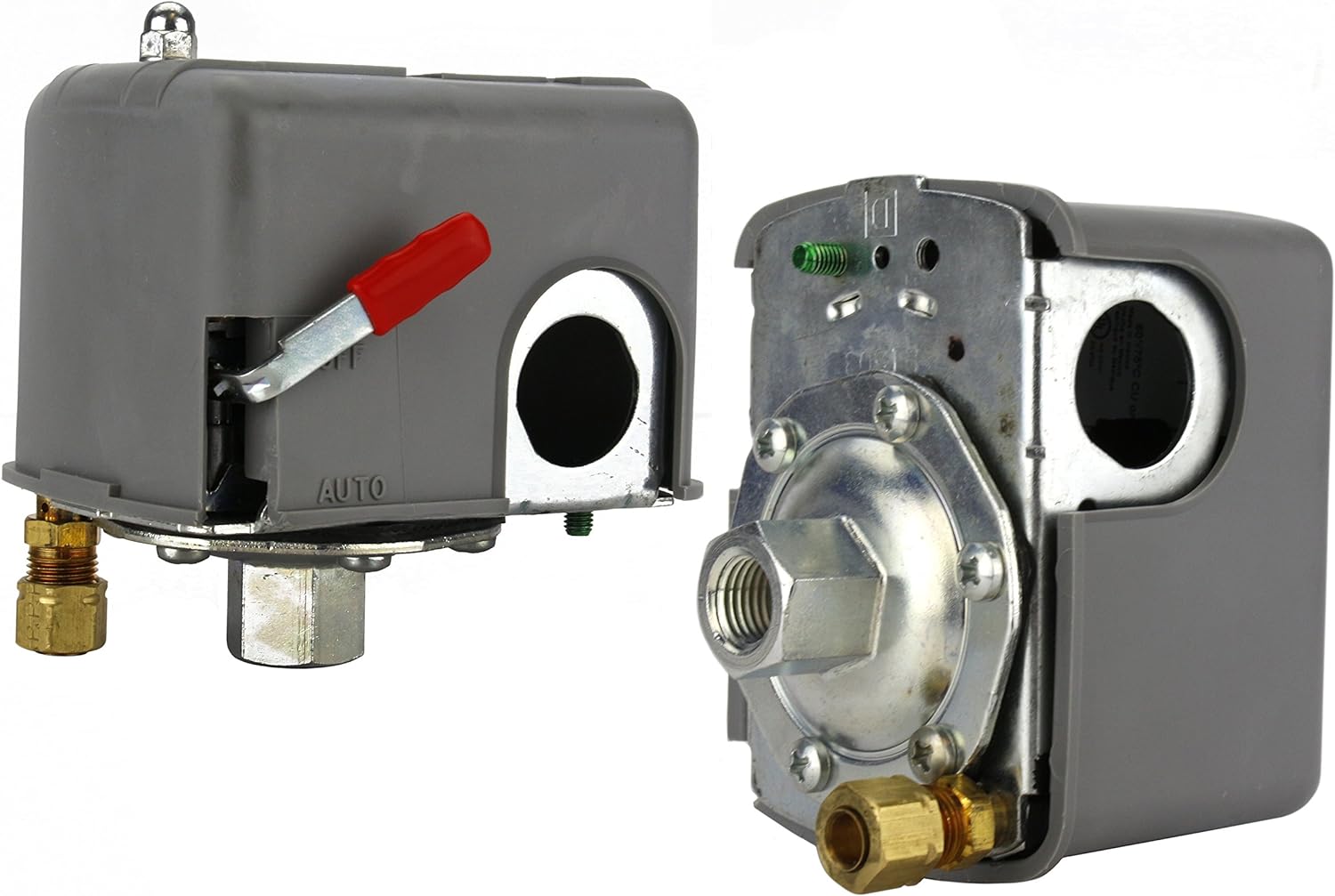

• Includes an on/off metal lever and a 1/4 inch unloader valve
• Designed for both single and three-phase connections

Product Highlights

This DPST switch is ideal for automating compressor operation, featuring a built-in pressure relief for load-free startups and a robust design capable of handling up to 15 amps of continuous current.

Product Information

Standard Information

• Brand: Square D
• Pumptrol Model: 9013FHG42J59M1X

Technical Specifications

• Voltage: 110 Volts
• Pressure Range: 60 to 200 psi

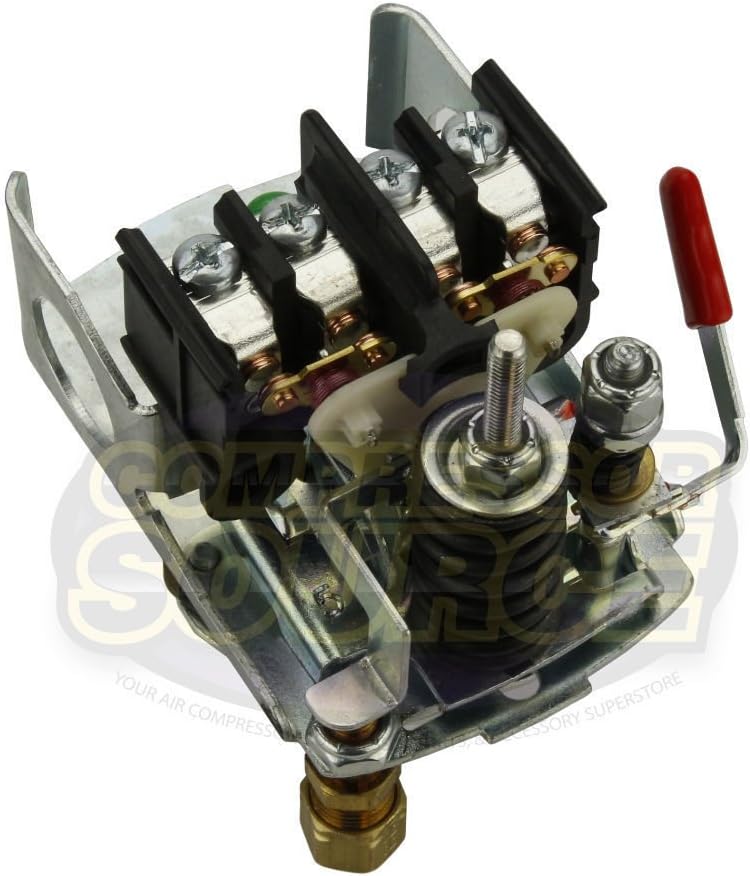

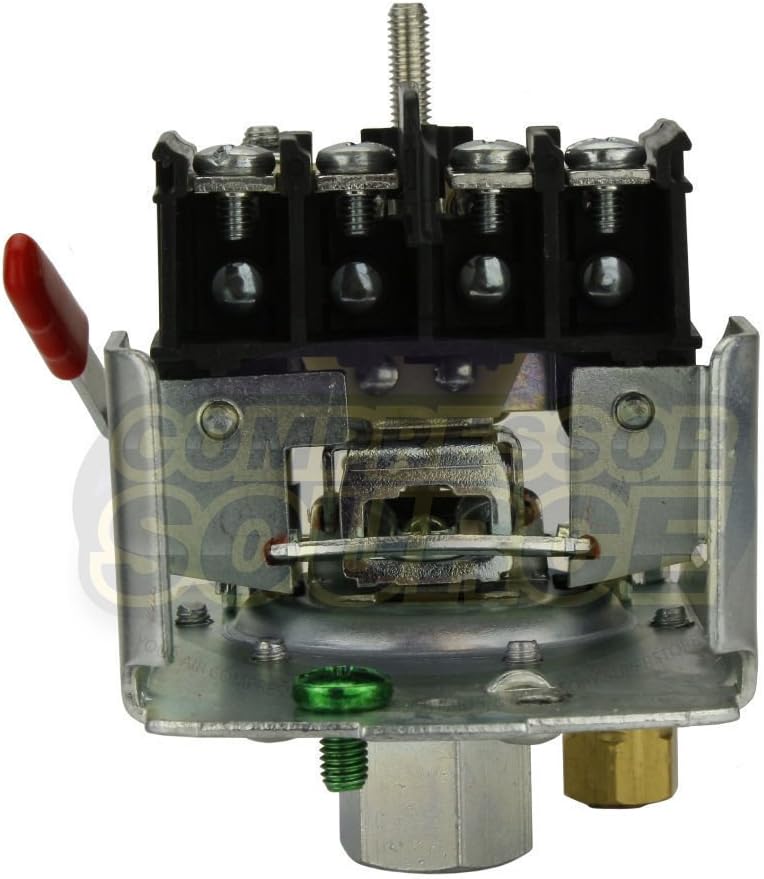

• Connection Type: Screw-clamp terminals
• Operation Mode: Off
• Protection: IP54 International Protection Rating
• Electrical Contact Form: DPST
• Pressure Sensing Connection Ports: One 1/4 inch Female NPT
• UL 508, ANSI/NSF Standard 61 Compliant
