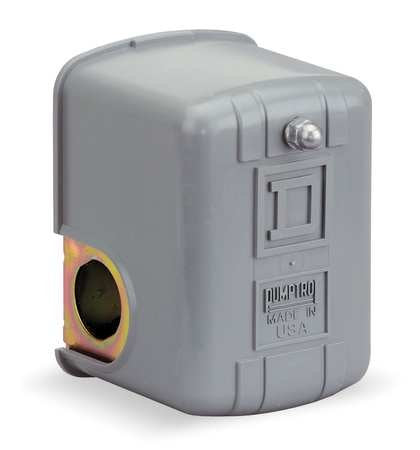

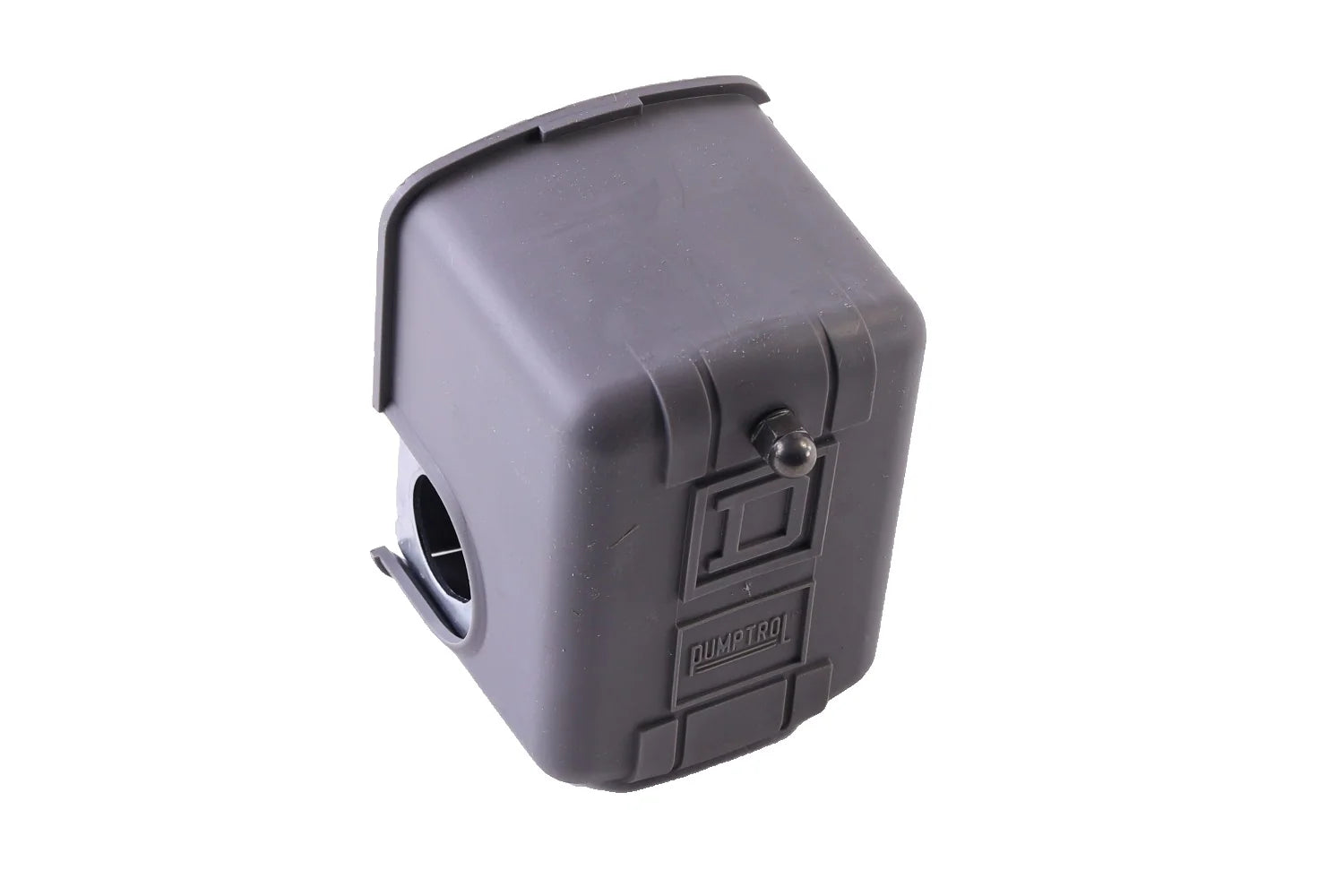

Schneider Electric 9013FHG42J59 Pressure Switch 100-200 Off @ 175

Product Description

This Schneider Electric 9013FHG42J59 air-compressor pressure switch is expertly designed to control the operation of your air compressor motors. Tailored for low-horsepower setups, this pressure switch supports motors up to 1.5 horsepower efficiently.

• Set to disconnect at 175 psi, ensuring optimal operation.
• Features a fixed 40 psi differential and an adjustable cut-out range from 100 to 200 psi.
• NEMA Type 1 and IP20 rated enclosure provides robust environmental protection.

Product Highlights

The Square D Pumptrol by Schneider Electric is an indispensable tool for managing air pressure in compressors, offering reliable performance and durability.

Product Information

Standard Information

• Connection Type: 1/4 inch NPSF internal
• Actuation Type: Diaphragm

Technical Specifications

• Electrical Contacts: Two 2-pole NC, opens on rising pressure
• Safety Certifications: UL Listed and CSA certified
• Pressure Release: Includes 2-way pressure release valve
• Cover: Includes black cover
