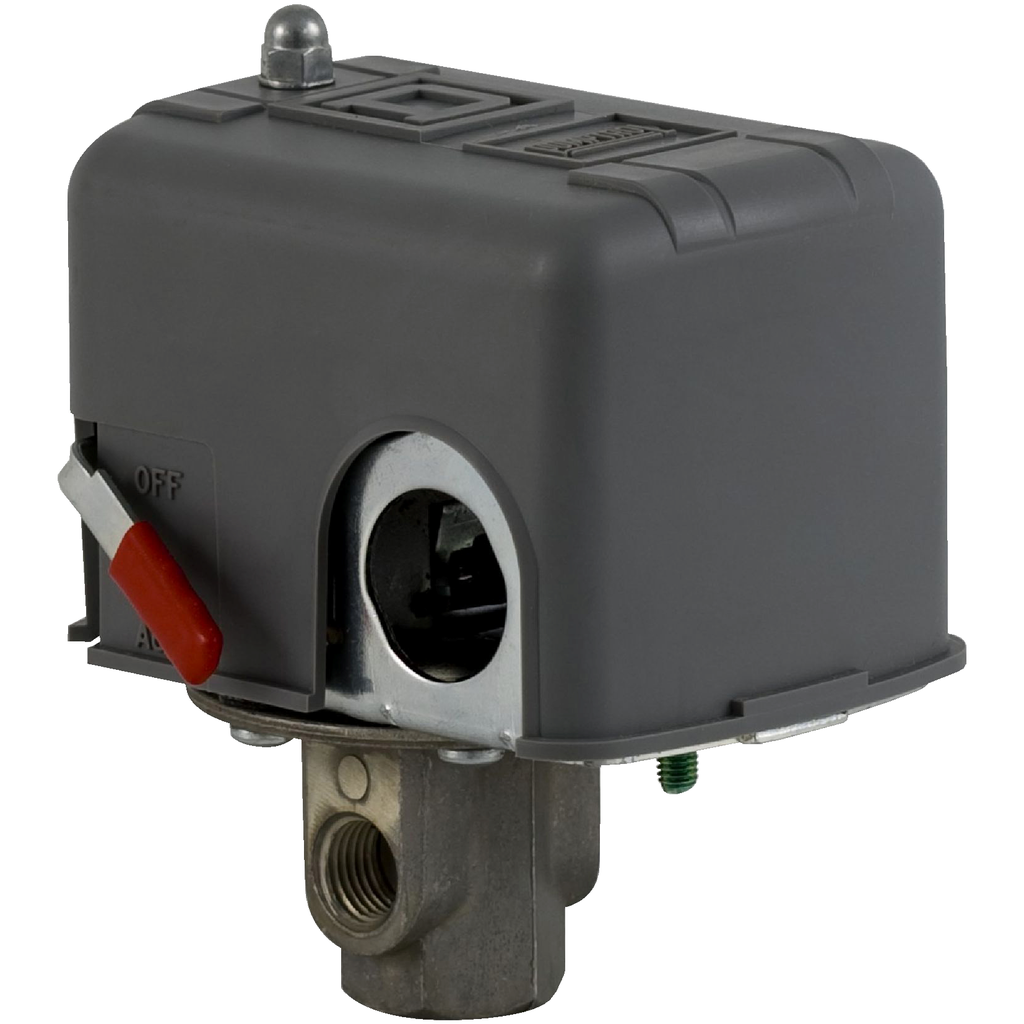

Square D 9013FHG2J43M1XZ22 Air Compressor Pressure Switch 2 Way Release Valve 40-100 PSI

Product Description

The Square D 9013FHG2J43M1XZ22 Air Compressor Pressure Switch is specifically designed for reliable operation of small electrically driven air compressors. This electromechanical switch operates off at 80 PSI with a fixed differential, suitable for general purpose indoor environments.

• Equipped with a 2-way pressure release valve and a maintained manual cut-out lever for safety and efficiency.
• Features a robust black cover and is designed for a 1/4 inch NPSF internal connection.
• Operates within a pressure range of 40 to 100 PSI, ensuring versatile use across various applications.

Product Highlights

This switch is capable of handling applications that require precise pressure management between two thresholds.

Technical Specifications

• Brand: Square D
• MPN: 9013FHG2J43M1XZ22
• Type: Electromechanical pressure switch; Fixed differential
• Dimensions: Depth 3.76 inches, Width 3.1 inches, Height 2.8 inches
• Weight: 1 lb
• Material: Noryl
• Standard: CE, UL 508, IP20 IEC 60529
• Enclosure: NEMA 1 UL 50
• Operating Temperature: -33 to 257 degrees F
• Contact Configuration: 2 NC, SNAP ACTION, DPST-DB, FORM YY
• Operating Cycles: 10 cycles/min
