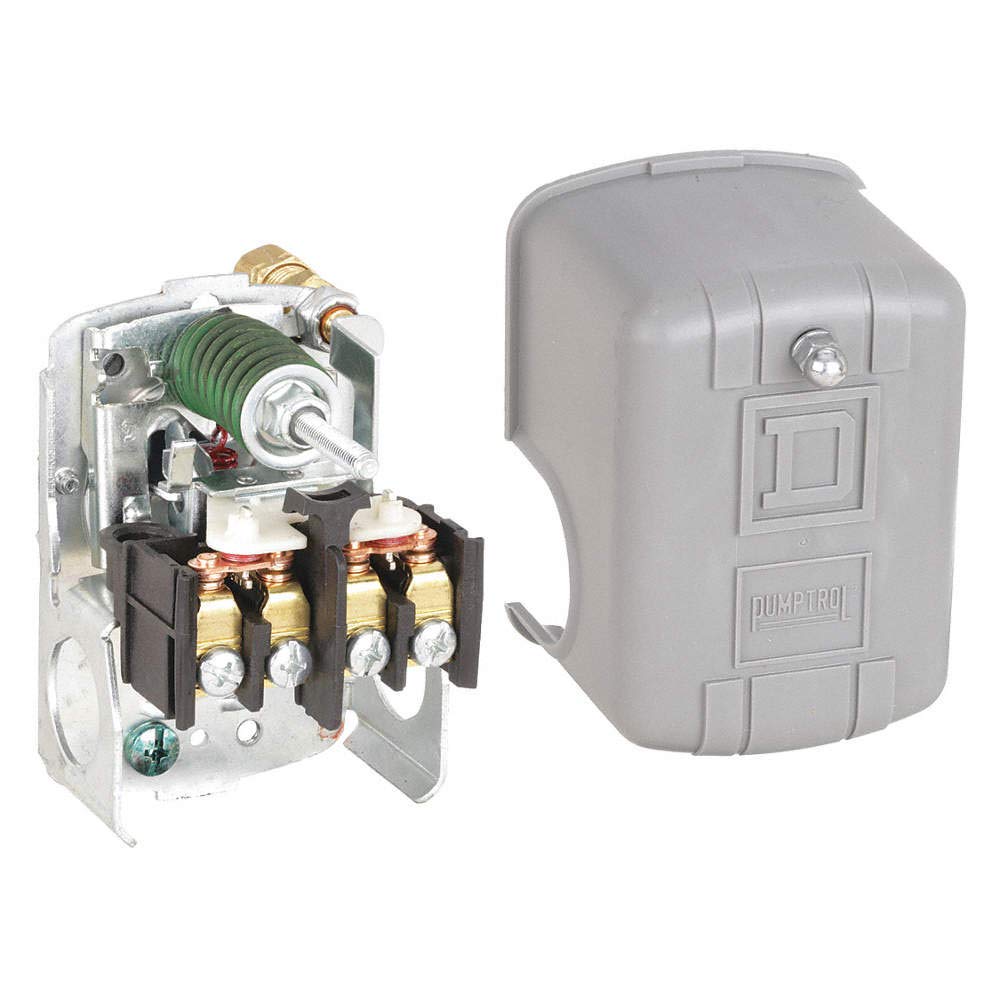

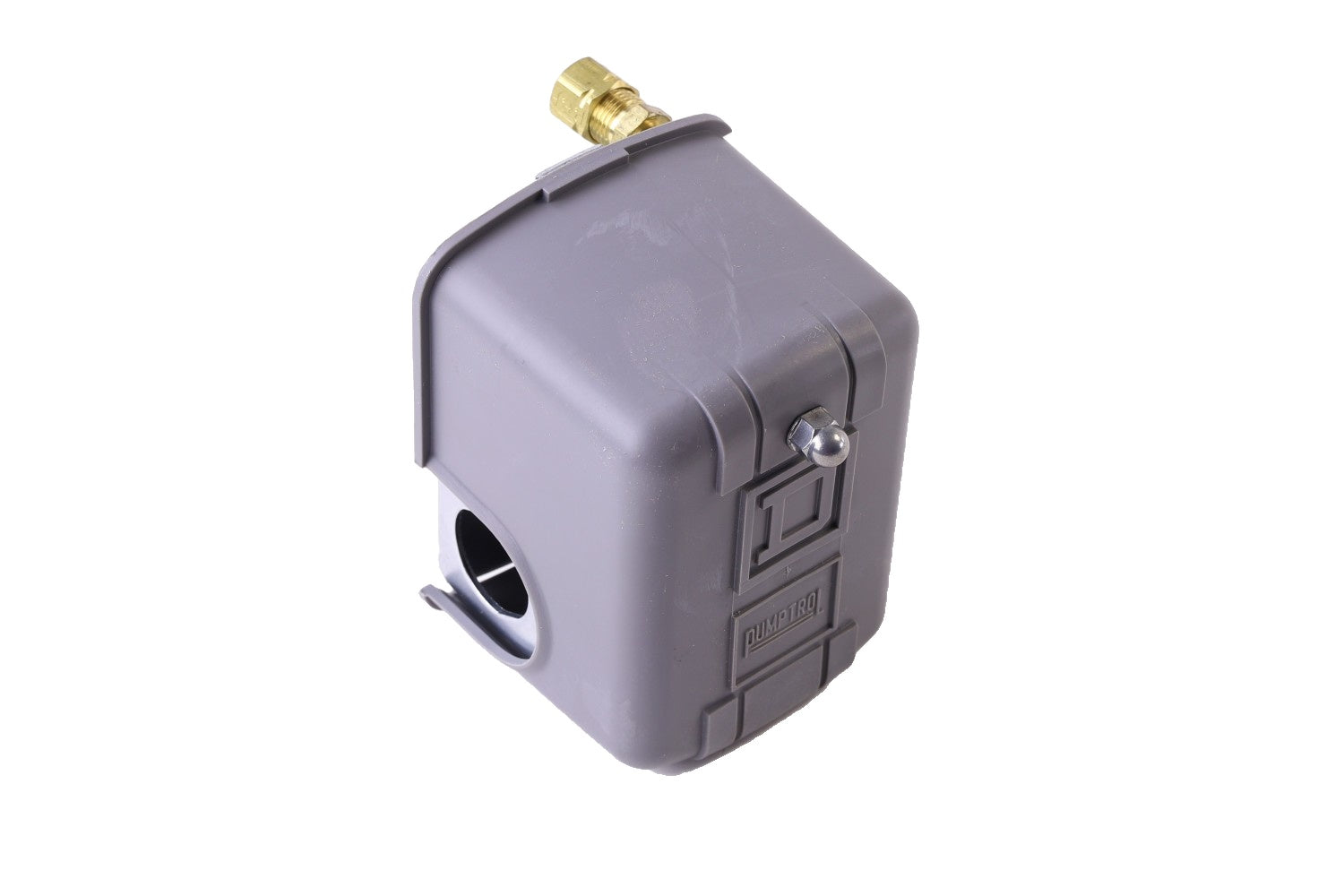

Schneider Electric 9013FHG22J27X Pressure Switch 40-100 PSI

Product Description

The Schneider Electric model 9013FHG22J27X is a pressure switch designed for precise pressure management within a 40-100 PSI range, ideal for both water and air systems. Engineered to facilitate the control and monitoring of pressure with high reliability, this product is essential for various industrial applications including hydraulic systems and air compressors.

• Adjustable pressure range from 40 to 100 PSI for versatile application
• Electrical rating of 15A at 125V AC and 10A at 250V AC
• Compact, robust design suitable for tight spaces and challenging environments

Product Highlights

Featuring snap-action contacts, this pressure switch provides quick and reliable switching. It's designed to be compact, enabling easy installation in limited spaces. UL and CSA approvals assure safety and reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FHG22J27X

Technical Specifications

• Pressure Range: 40-100 PSI
• Electrical Ratings: 15A (125V AC), 10A (250V AC)
• Connection Type: 1/4 inch FNPS
• Switch Type: DPST
• Compliance: UL, CSA
• Application: Hydraulic systems, air compressors
