Schneider Electric 9013FHG19J27X Pressure Switch 40 to 150 psi DPST

Product Description

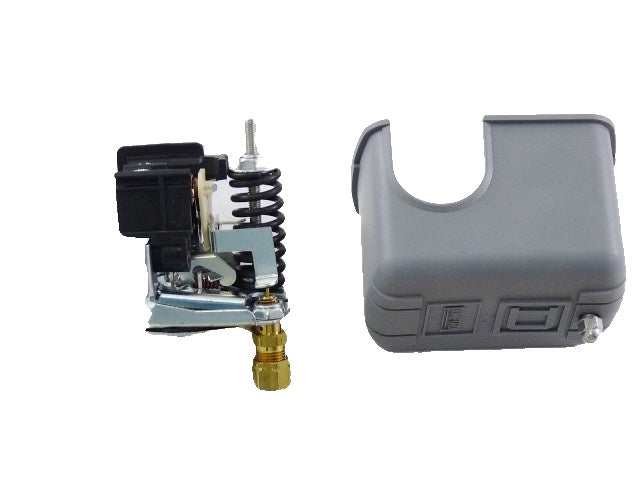

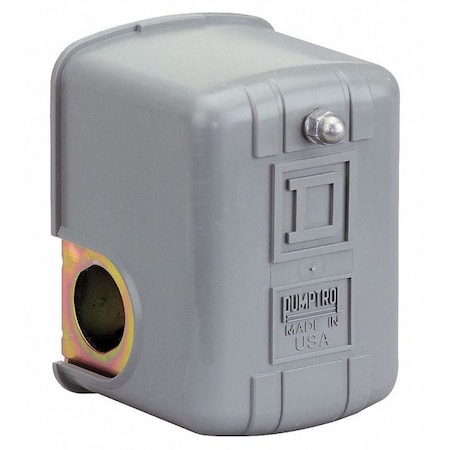

Schneider Electric model 9013FHG19J27X is a robust pressure switch designed for managing air compressors. With a pressure setting range of 40 to 150 psi, this device ensures reliable performance.

• DPST electrical contact form with a standard action switch mechanism.
• Differential of 30 psi with factory settings at 70 psi on and 100 psi off.
• Designed for straightforward installation with 1/4 inch MNPT single port connection.

Product Highlights

This Schneider Electric pressure switch is a perfect choice for commercial air compressors, providing crucial automation for pressure management.

Technical Specifications

• Brand: Schneider Electric
• MPN: 9013FHG19J27X
• Pressure Setting: 40 to 150 psi
• Electrical Contact Form: DPST
• Diaphragm Material: Nitrile (Buna-N)
• Power Ratings: 1 1/2 hp at 120V, 2 hp at 240V, 3 hp at 240V three-phase, and 1 hp at 480V three-phase
• NEMA Rating: 1
• Connection Type: 1/4 in MNPT
• Compliance Standards: ANSI/NSWS, CSA, NEC, UL listed
