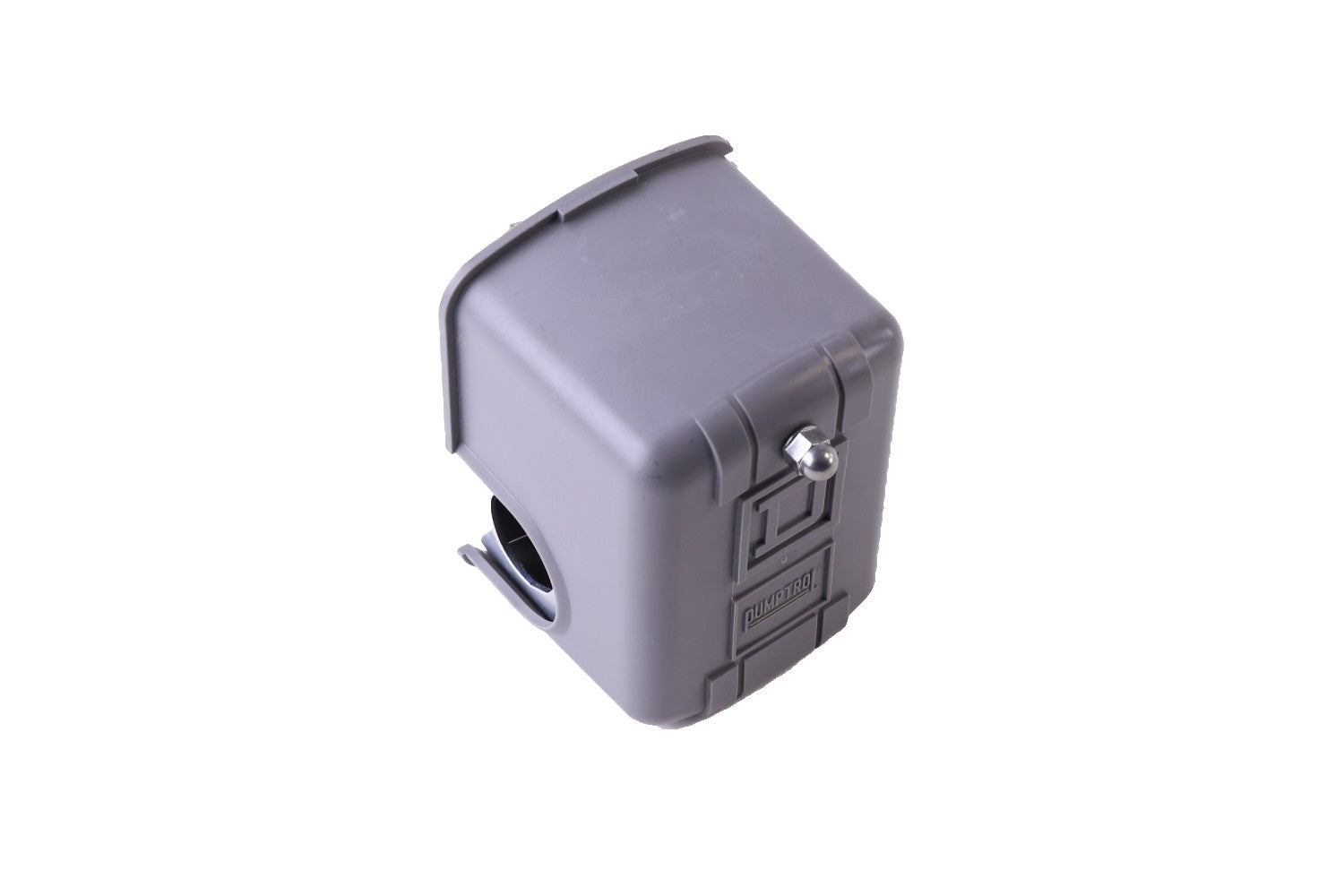

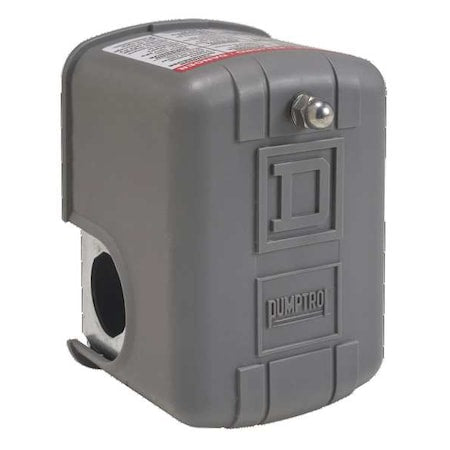

Square D 9013FHG19J27 Pressure Switch 70/150psi DPST 1/4 inch MNPT

Product Description

The Square D 9013FHG19J27 model by Schneider Electric is an electromechanical pressure switch designed to control air compressors. Offering a pressure range of 40 to 150 psi, it ensures consistent operation and efficiency in your systems.

• Optimal performance within temperatures ranging from -22 to 257 degrees Fahrenheit.
• Durable construction with a polypropylene and Noryl resin cover.
• Designed for ease with screw-clamp terminal electrical connections.

Product Highlights

This switch operates with a fixed differential scale and has a burst pressure limit of 220 psi, confirming its reliability and safety. Ideal for applications requiring frequent cycling with a quick response to system changes.

Product Information

Technical Specifications

• HP Capacity: Up to 3 HP at 240V three-phase.
• Electrical Rating: 10A at 575V.
• Connection: 1/4 inch MNPT one-port type.
• Pressure Range: 40 to 150 psi, with factory settings at 70/100 psi.
• Differential: 30 psi, fixed differential scale.
• Standards: Complies with ANSI/NSF Standard 61, CSA, NEC Article 430-84, and UL 508.
• IP Rating: IP20.
