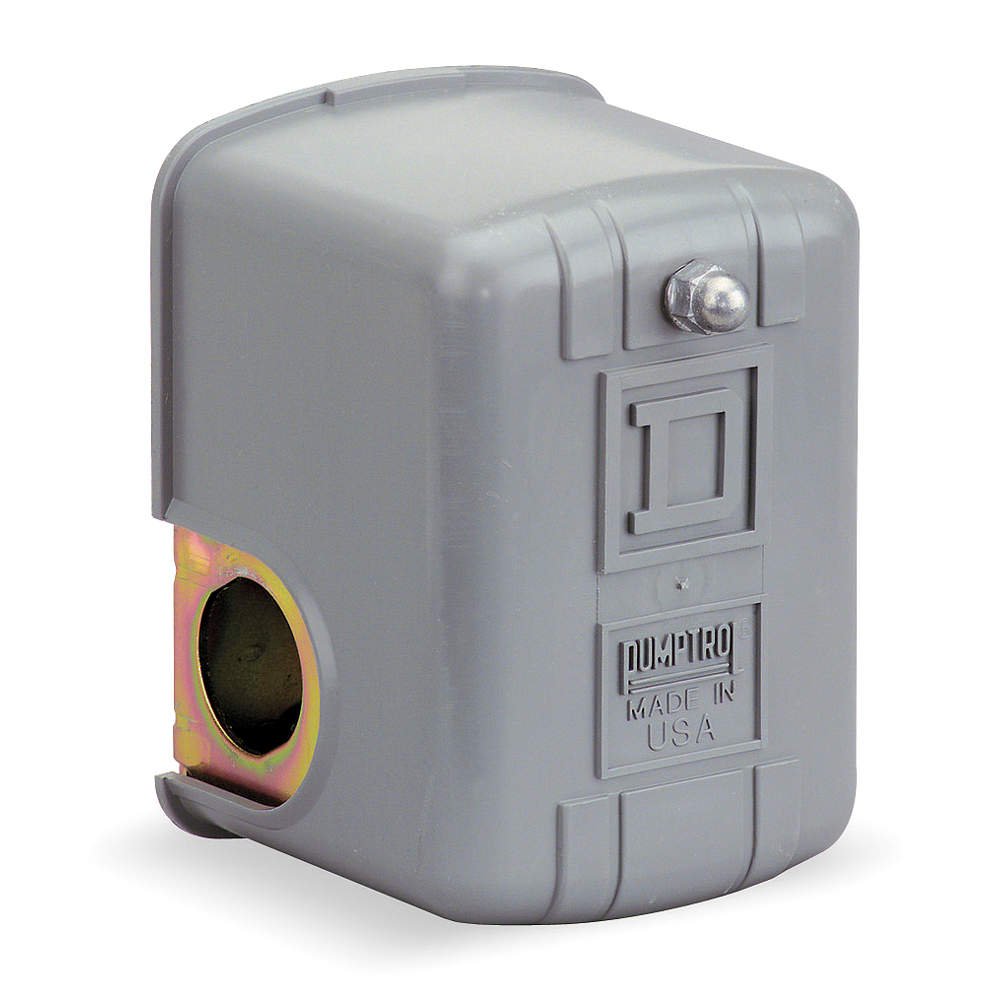

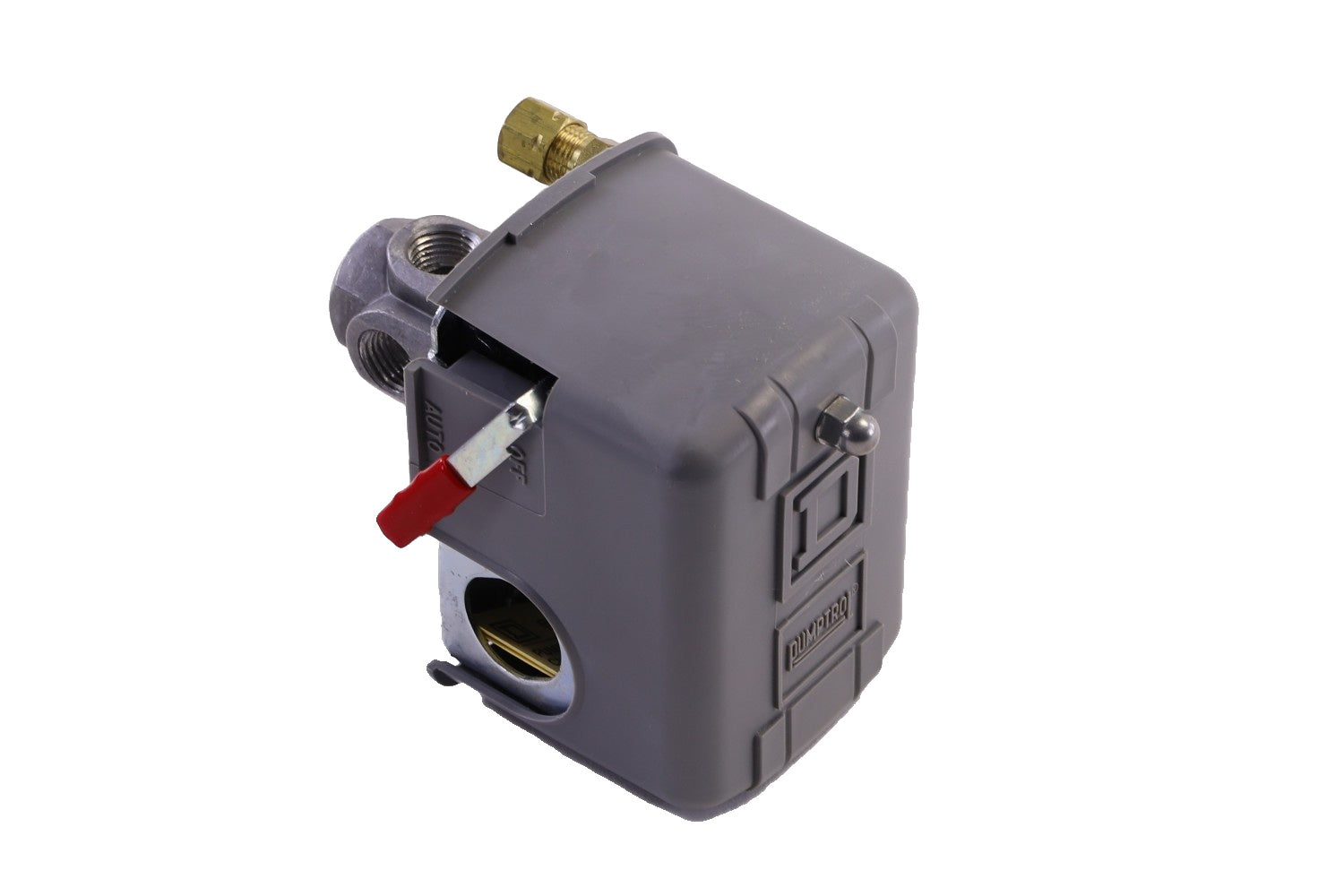

Schneider Electric 9013FHG14J52M1X Pressure Switch 40 to 150 PSI Replacement 9013FHG14J52M1X

Product Description

The Schneider Electric model 9013FHG14J52M1X pressure switch is designed for robust performance in air compressor applications, ensuring reliable operation and pressure management.

• Handles pressures from 40 to 150 psi.
• Equipped with 1/4 inch FNPS four ports and DPST configuration.
• Features a manual switch action with auto/off capabilities and a fixed differential scale.

Product Highlights

This pressure switch offers both functionality and durability, engineered by Schneider Electric to provide precise pressure control and safety in HVAC systems. It operates within a temperature range of -22 to 257 degrees Fahrenheit and features a sturdy polypropylene cover.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FHG14J52M1X

Technical Specifications

• Pressure Range: 40 to 150 psi
• Contact Form: DPST
• NEMA Rating: 1
• IP Rating: IP20
• Differential: 30 psi
• Burst Pressure: 220 psi
• HP Ratings: 1 1/2 HP at 120V, 2 HP at 240V, and 3 HP at 240V 3 Phase
• Material: Polypropylene and Noryl Thermoplastic
