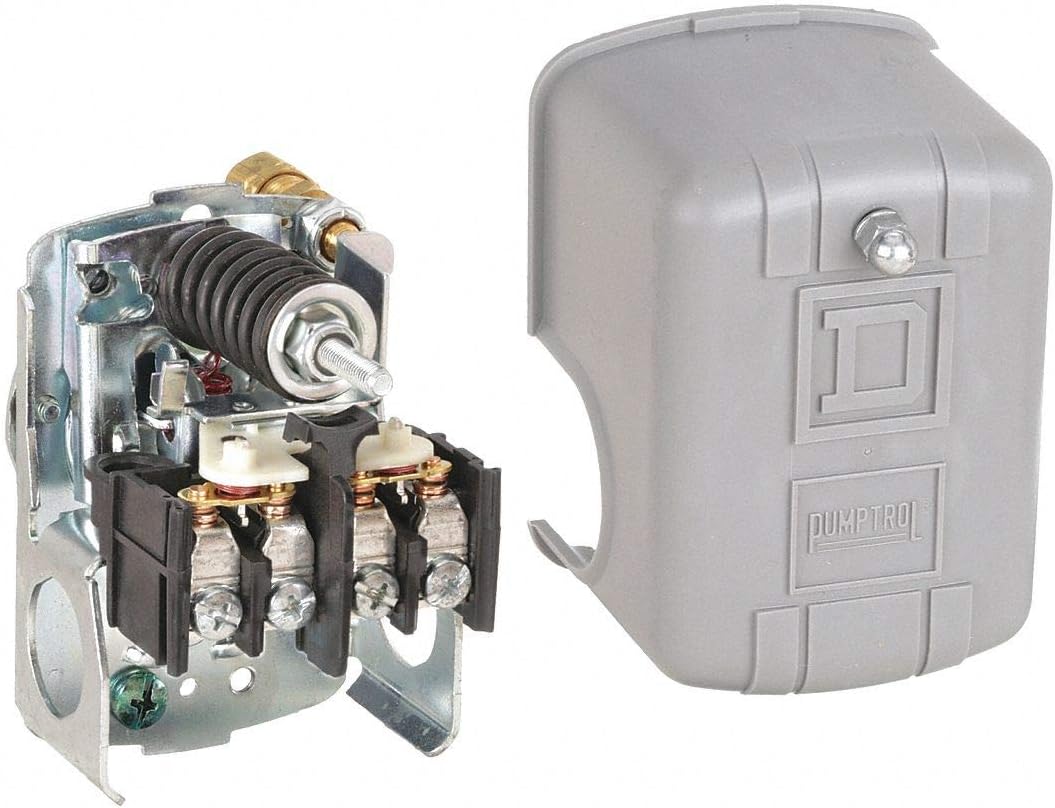

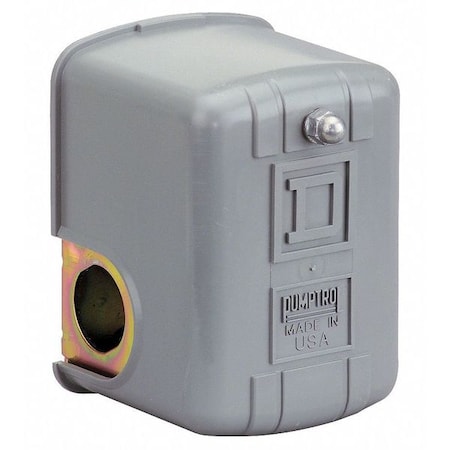

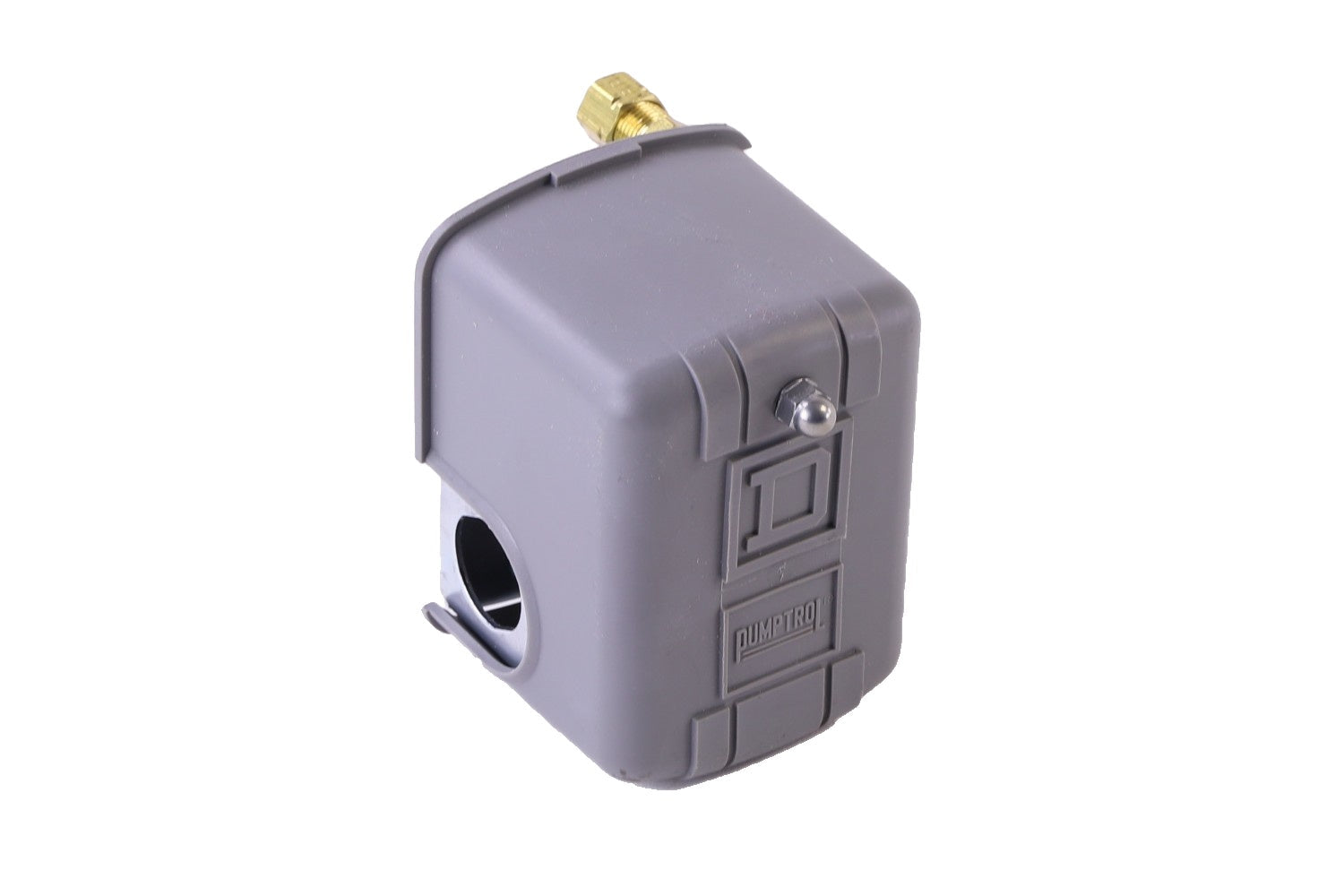

Schneider Electric 9013FHG12J52X Pressure Switch 575-Vac 1-Horsepower F Plus Options Electrical Box

Product Description

The Schneider Electric Pressure Switch model 9013FHG12J52X is engineered to control electrically driven air compressors and water pumps. It is a robust device suitable for various applications requiring a switch to activate under pressure.

• Pressure range from 40 to 150 psi, ideal for a range of operating conditions.
• Built with a 1/4 inch FNPS port for secure and straightforward connections.
• Designed for easy surface mounting.

Product Highlights

This pressure switch features a manual override switch action and a fixed differential scale. It operates efficiently between -22 to 257 degrees Fahrenheit. Its electrical contacts form is DPST, ensuring reliable control of electric motors up to 1-horsepower at 120V and 2-horsepower at 240V.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FHG12J52X

Technical Specifications

• Pressure Switch Range: 40 to 150 psi
• Material: Polypropylene, Noryl thermoplastic resin
• HP Ratings: 1.5 hp at 120V, 2 hp at 240V, 3 hp at 240V 3-phase, and 1 hp at 480V 3-phase
• NEMA Rating: 1
• Electrical Contact Form: DPST
• Connection Type: Screw-clamp terminals
• Certifications: ANSI/NSF Standard 61, CSA Certified
