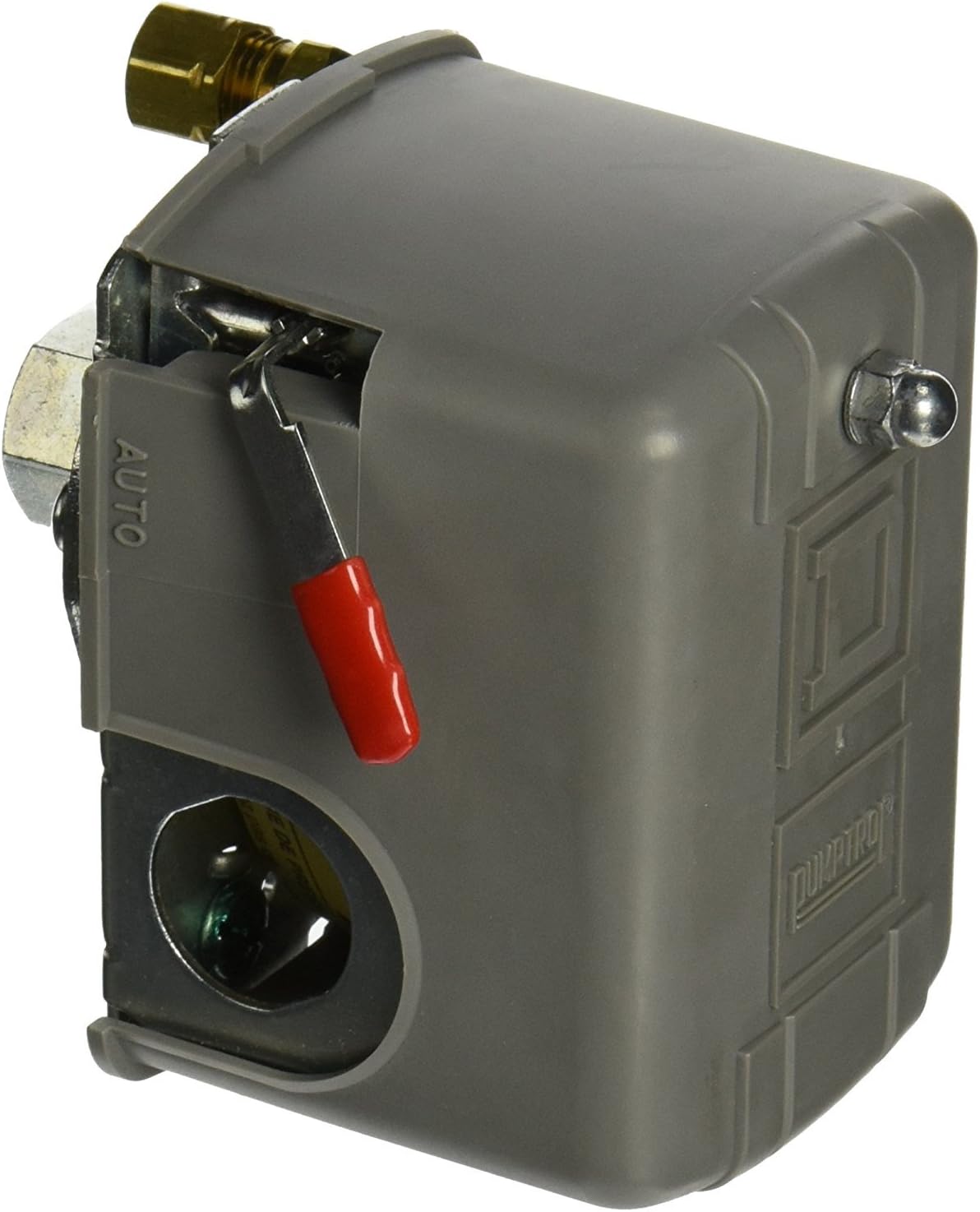

Square D 9013FHG12J52M1X Pressure Switch 95-125 psi with Unloader & On/Off Lever

Product Description

The Square D Pumptrol 9013FHG12J52M1X Pressure Switch is a crucial device for managing air compressors, ensuring that they operate within safety limits. This model, with a 1/4 inch FNPS pressure switch port and a pressure range from 40 to 150 psi, is optimized for performance and reliability.

• Manual switch action with auto/off capability enhances operational safety and convenience.
• Built-in unloader for controlling the release of air after the compressor shuts off.
• Operates with a differential of 30 psi for precise pressure control.

Product Highlights

Equipped with a durable Noryl thermoplastic resin cover and a pressure capability up to 150 psi, this switch adheres to rigorous industry standards including NEC Article 430-84 and UL 508.

Product Information

Technical Specifications

• Pressure Range: 40 to 150 psi
• Connection: 1/4 in FNPS
• Electrical Rating: 10A at 575V
• Differential: 30 psi
• NEMA Rating: 1
• Operating Voltage: 110 Volts
• Protection Rating: IP20
• HP Ratings: 1 1/2 HP at 120V, 2 HP at 240V
