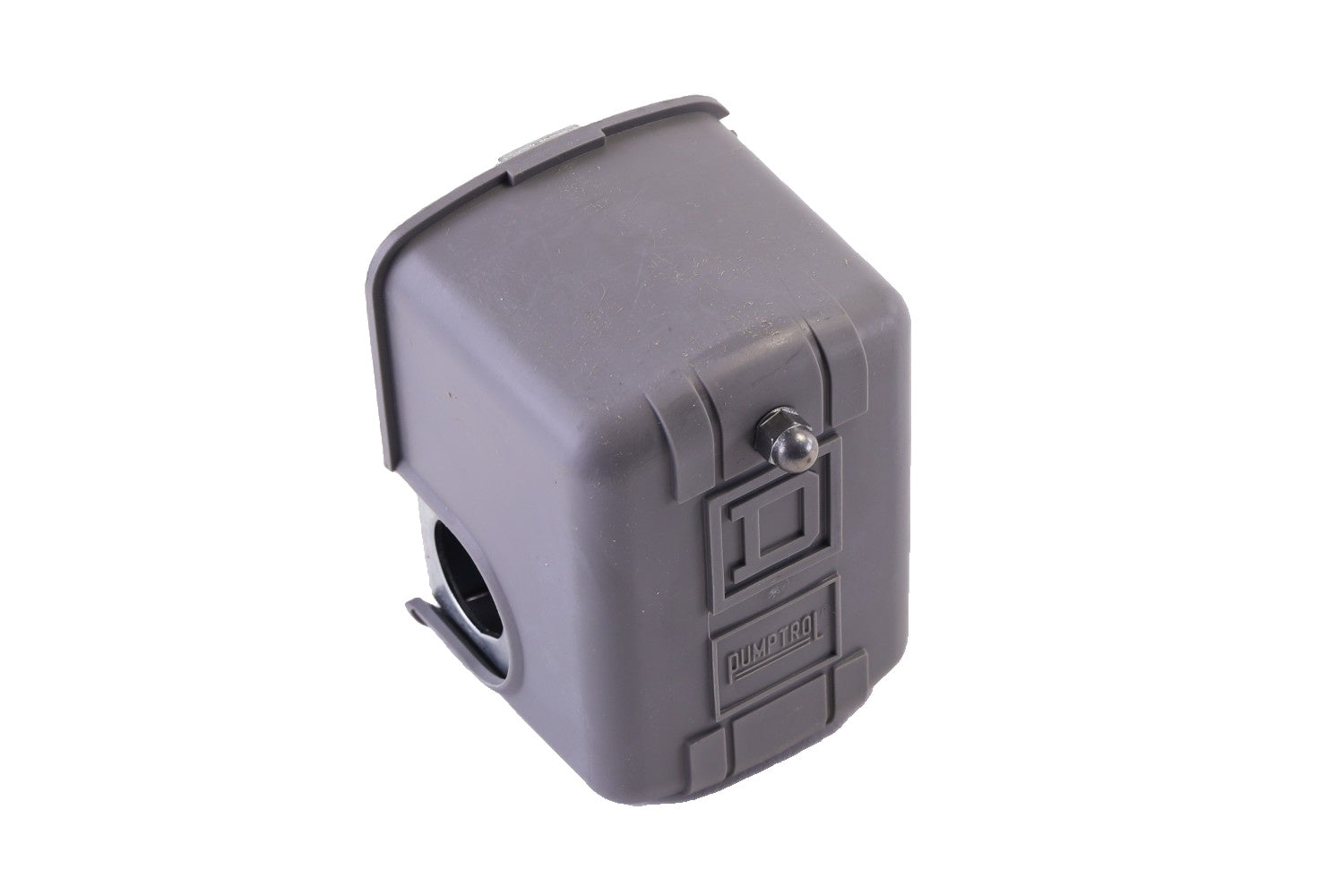

Schneider Electric 9013FHG12J52 Pressure Switch 1 Port 1/4 in FNPS 40 to 150 PSI

Product Description

The Schneider Electric model 9013FHG12J52 is a reliable electromechanical pressure switch designed for air compressor applications. This pressure switch ensures efficient operation with its factory on/off setting calibrated from 95 to 125 psi.

• Diaphragm actuation ensures durable and consistent performance.
• Designed with a single port, 1/4 inch FNPS, suitable for various installations.
• Features a fixed differential scale of 30 psi to maintain system stability.

Product Highlights

This device is ideal for managing air pressure within industrial systems and comes housed in a robust polypropylene and Noryl thermoplastic resin cover, ensuring long-term durability in diverse environments from -22 to 257 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FHG12J52

Technical Specifications

• Pressure Range: 40 to 150 psi
• Contact Form: DPST
• NEMA Rating: 1
• IP Rating: IP20
• Max. Horsepower: 1 HP at 480V, 3 HP at 240V
• Temperature Range: -22 to 257 degrees Fahrenheit
• Differential: 30 psi fixed
• Electrical Connection: Screw-clamp terminals
