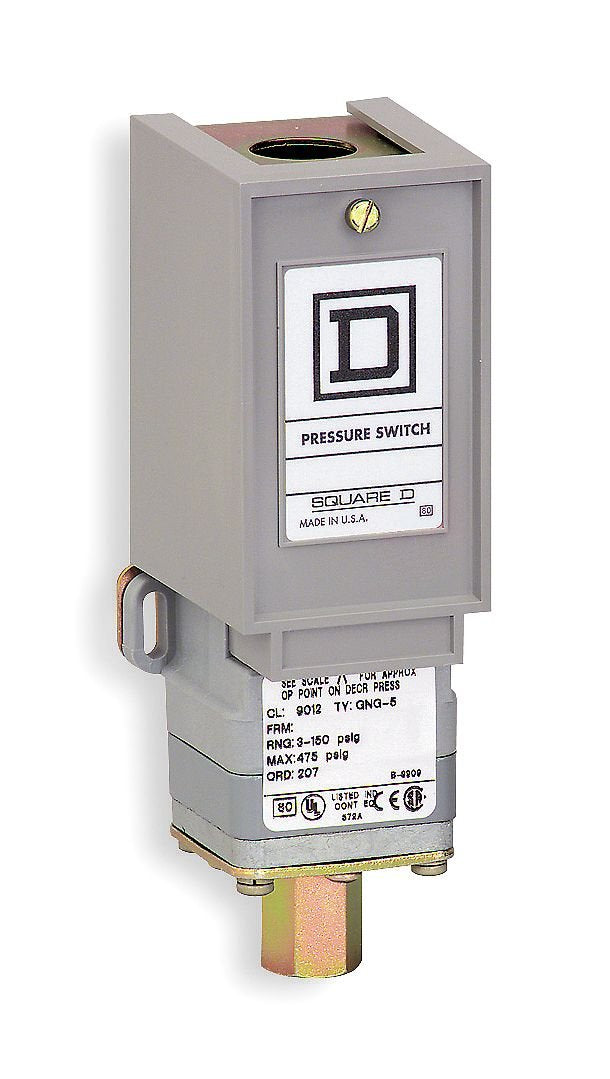

Schneider Electric 9012GNG5 Pressure Switch, 3 to 150 psi, 1/4-18 NPTF

Product Description

The Schneider Electric 9012GNG5 pressure switch is designed for industrial use in machine-tool applications. It operates within a pressure range of three to one hundred fifty psi, making it suitable for various pneumatic and hydraulic systems. The unit features a NEMA 1 enclosure with a zinc-plated steel diaphragm housing, ensuring durability and reliability. The switch includes a one-quarter eighteen NPTF pressure connection and SPDT contacts. It is UL Listed and CSA certified, providing assurance for safety and performance.

• Industrial diaphragm-actuated design with adjustable differential from six to thirty psi.
• NEMA 1 rated for indoor use, suitable for various control applications.
• Compatibility with pneumatic and hydraulic systems, versatile for different field applications.

Product Highlights

This pressure switch is ideal for maintaining safety and efficiency in industrial settings. It effectively controls pressure levels and triggers actions in response to fluctuating pressures.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Manufacturer Part Number: 9012GNG5

Technical Specifications

• Pressure Range: 3 to 150 psi
• Contact Form: SPDT
• Port Type: 1-Port 1/4-18 in FNPT
• Ambient Temperature Range: -10 to 185 degrees Fahrenheit
• Media Temperature Range: -40 to 250 degrees Fahrenheit
• Electrical Connection: Screw-clamp terminals
• Differential: 4.2 to 13.2 psi
• Max Pressure: 475 psi
• Housing Material: Thermoplastic
