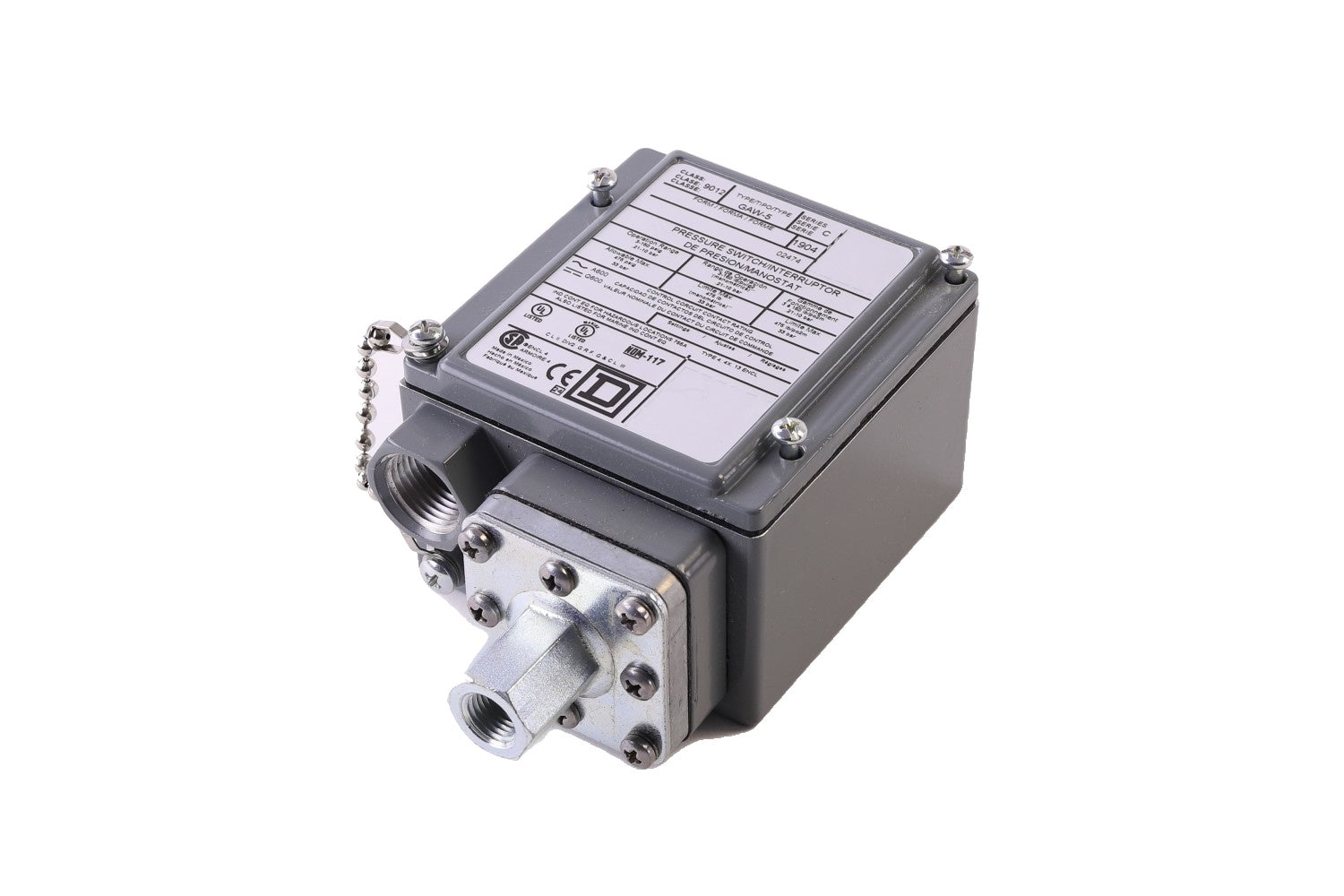

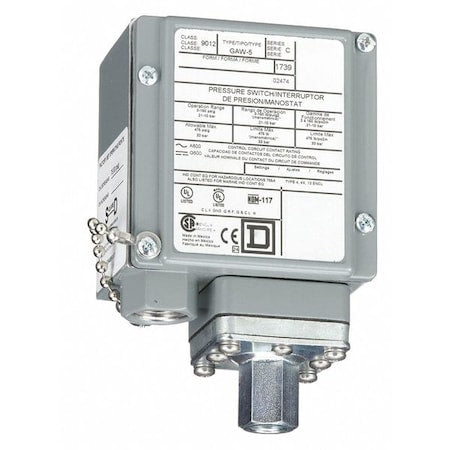

Schneider Electric 9012GAW5 Pressure Switch SPDT 150PSI

Product Description

The Schneider Electric 9012GAW5 Pressure Switch is engineered for reliable monitoring and control of fluid pressure in industrial applications. This device, robust in design, facilitates the operation of compressors, pumps, and hydraulic systems by maintaining the necessary pressure levels within a system.

• Pressure range from 6 to 30 psi with a maximum of 475 psi
• Single-pole, double-throw (SPDT) contact configuration for versatile operation
• Designed for durability with a die-cast aluminum alloy housing

Product Highlights

Equipped with adjustable settings, this pressure switch ensures precise pressure monitoring and control, enhancing system reliability and safety. It protects critical equipment from damage by maintaining optimal operating conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 9012GAW5

Technical Specifications

• Pressure Range: 3 to 150 psi
• Maximum Pressure: 475 psi
• Electrical Connections: Screw-Clamp Terminals
• NEMA Rating: 13, 4, 4X
• Contact Form: SPDT
• Actuation Type: Diaphragm
• Port Type: 1-Port 1/4-18 in FNPT
• Standards: UL 508; CSA C22.2 No 14; CE
