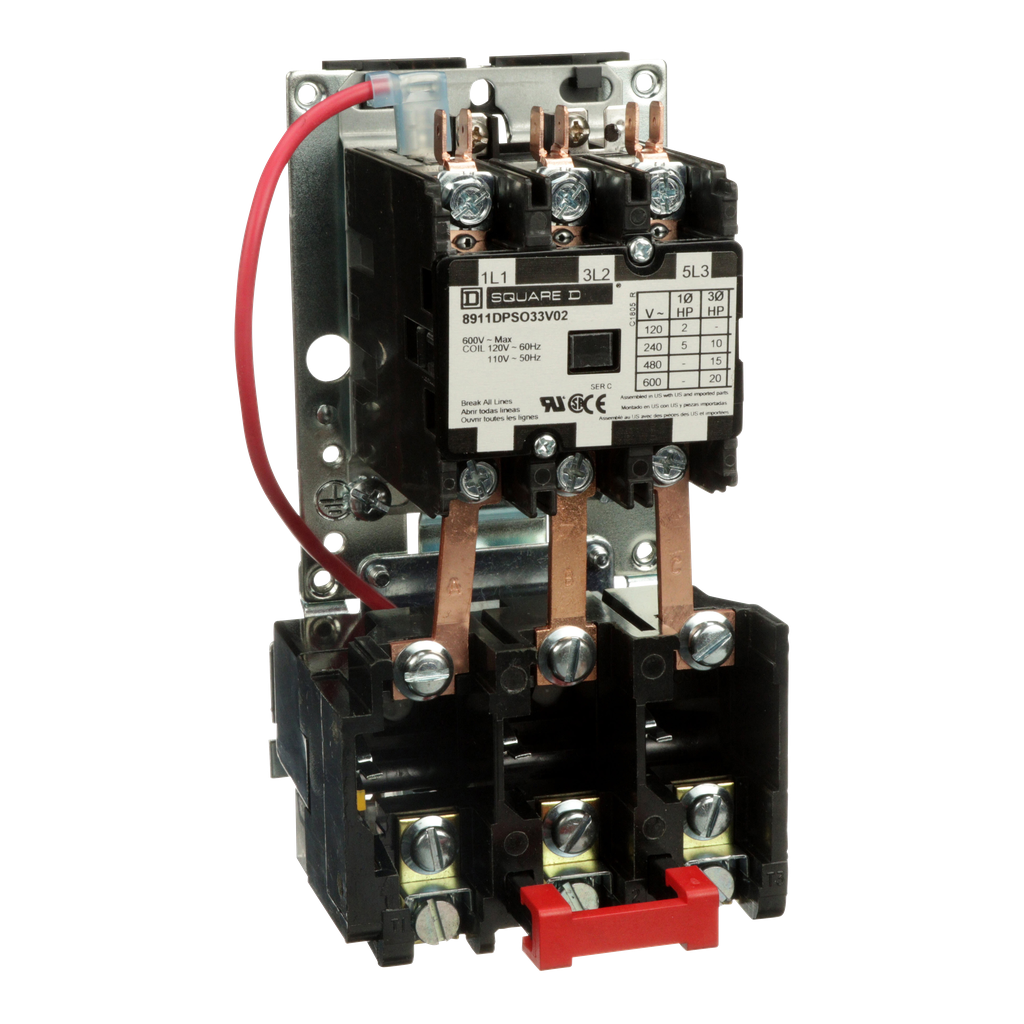

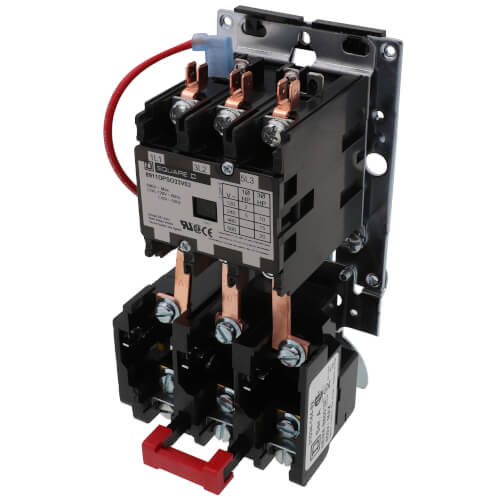

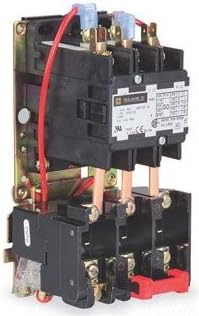

Schneider Electric 8911DPSO33V02 Starter 600-Vac 30-Amp DPS Plus Options Electrical Box

Product Description

Schneider Electric 8911DPSO33V02 is a starter designed for reliable motor control in various industrial applications. This device works effectively with both single-phase and three-phase motors. The starter features a coil voltage of 120 volts and is capable of handling significant current loads. It supports applications like air compressors, agricultural equipment, and HVAC systems.

• Rated for three-phase operation.
• Handles motor horsepower ratings up to twenty HP.
• Includes a melting alloy overload relay for protection.

Product Highlights

This starter promotes efficient motor performance, extending the lifespan of equipment and ensuring safety in operation.

Product Information

Standard Information

• Voltage: 600 Volts
• Amperage: 30 Amps

Technical Specifications

• Number of Poles: 3 Pole
• Enclosure Rating: Not Rated
• Control Circuit Voltage: 120VAC at 60Hz
• Dimensions: 7.0 inches tall, 3.5 inches wide, 4.0 inches deep
• Weight: 2.38 pounds
• Overload Type: Melting Alloy
• Made in: USA
