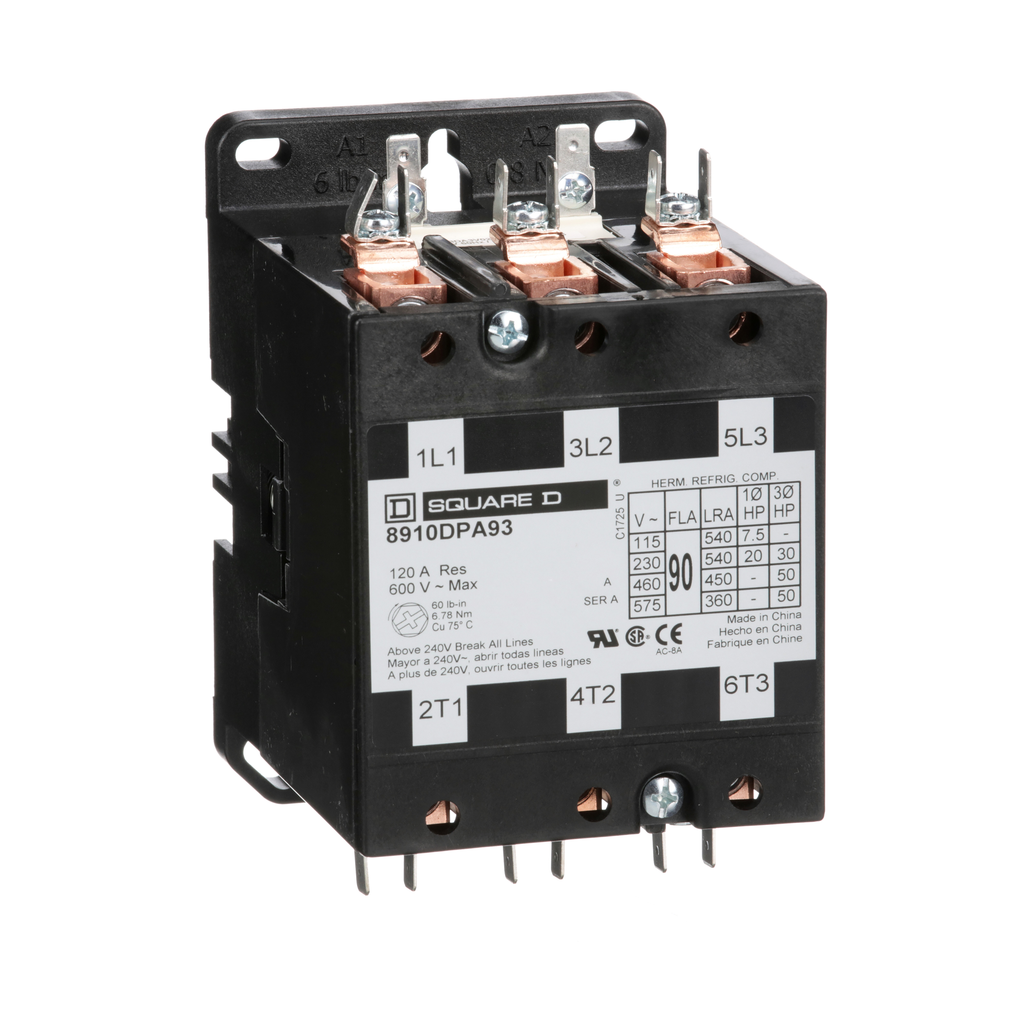

Square D 8910DPA93V02 Definite Purpose Contactor 90 Amp 3-Pole

Product Description

The Square D 8910DPA93V02 is a robust 3-pole magnetic definite purpose contactor ideal for precision control in heating, air conditioning, and refrigeration systems. This unit supports various high-power applications, ensuring reliable performance across diverse industrial settings.

• Engineered for heating, AC, and refrigeration controls
• High capacity with 90 amp full load and up to 120 amp resistive rating
• UL recognized and CSA certified for quality assurance

Product Highlights

This contactor handles up to 50 HP at 575 VAC across three phases and includes a 110/120 VAC coil, optimized for both 50 Hz and 60 Hz systems. It features straight-through wiring, and with no enclosure included, offers flexible installation options suited for a wide array of industrial environments. Reliable mechanical life is supported by approximately 500,000 operations.

Product Information

Standard Information

• Dimensions: 5.20 inches by 3.39 inches, and 4.76 inches tall
• Standard Mounting: DIN rail mount compatible, facilitating easy integration

Technical Specifications

• Width: 3.39 inches
• Height: 5.26 inches
• Depth: 4.67 inches
• Weight: 3.70 lbs
• Voltage Handling: Up to 600 volts
• Amperage: 90 Amp
• Phase: 3-Phase operation
• Standard Certifications: UL Recognized, CSA Certified
