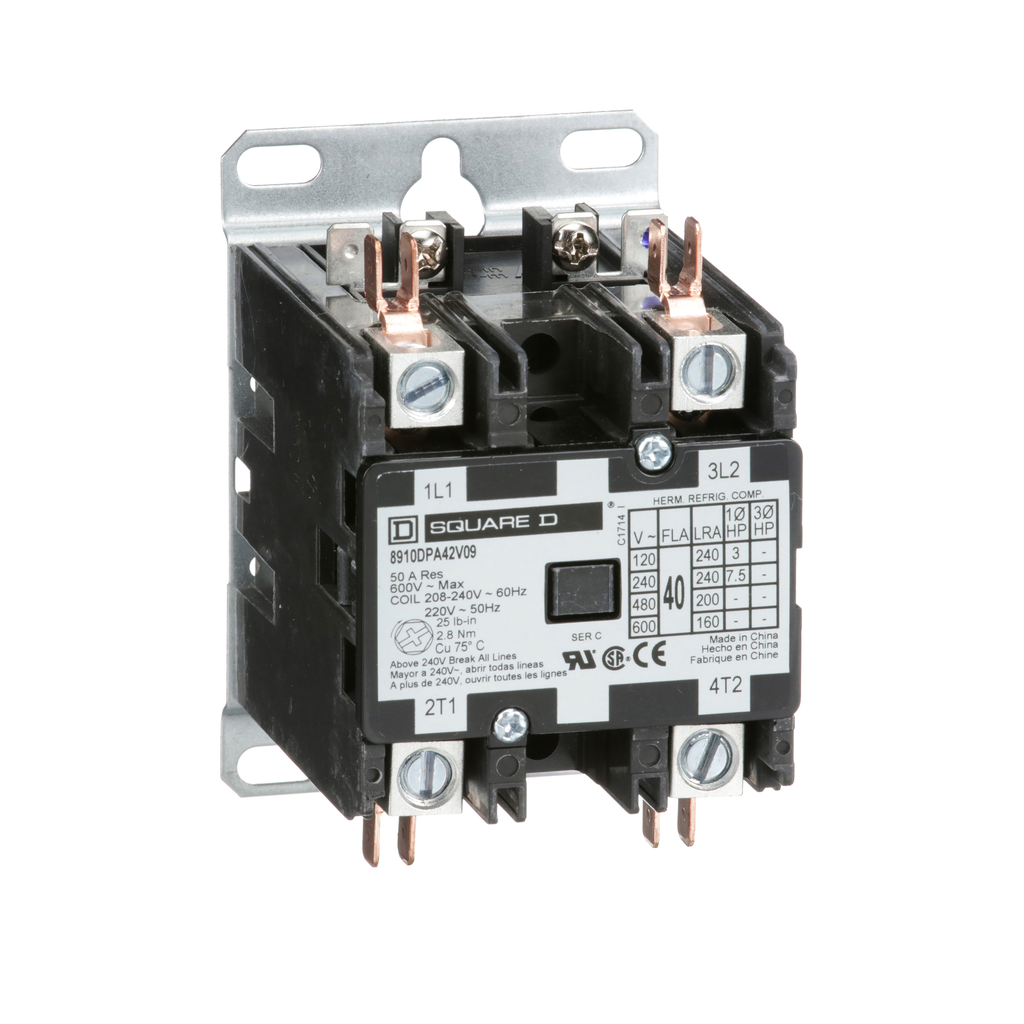

Schneider Electric 8910DPA42V09 Contactor 208/240VAC 40A 2-Pole NEMA 1 Definite Purpose

Product Description

The Schneider Electric 8910DPA42V09 is a high-performance, 2-pole definite purpose contactor designed to manage heavy-duty operations in heating, air conditioning, and refrigeration systems. Engineered to facilitate effective power management, this 208/240VAC contactor assures reliable functioning with its robust built.

• Rated for 40A full-load and 50A resistive power handling capacities.
• Features UL component recognition and CSA certification for safety and standard compliance.
• Incorporates a nonreplaceable coil, compatible with a myriad of coil voltages for flexible system integration.

Key Highlights

Equipped for optimal performance in the most demanding environments, this contactor assures a mechanical life of approximately 500,000 operations. It supports various configurations including up to 25 HP at 575 VAC three-phase motors.

Technical Specifications

• Amperage: 40 Amp
• Voltage: 208/240V, 220V 50 Hz, 600V max.
• Dimensions: 3.75 inches by 2.37 inches by 3.00 inches
• Weight: 15.7 ounces
• Power Ratings: 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase
• Color: Black
• Enclosure Type: NEMA 1
• Certification: RoHS, UL Recognized, CSA Certified
• Contactor Configuration: Double-Pole, Non-Reversing
